Vinyl - Shower drain
Application

New construction or renovation.

Description

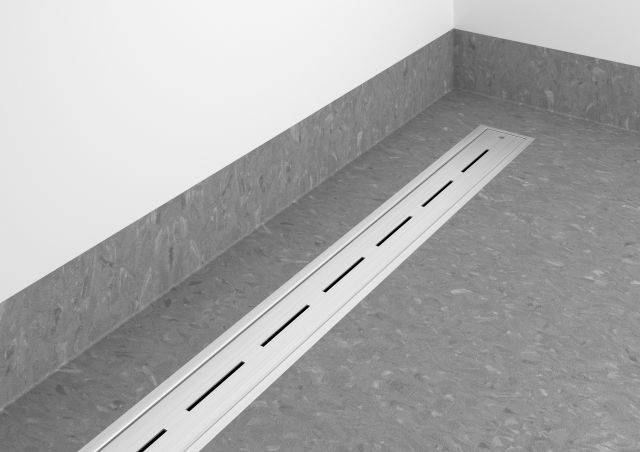

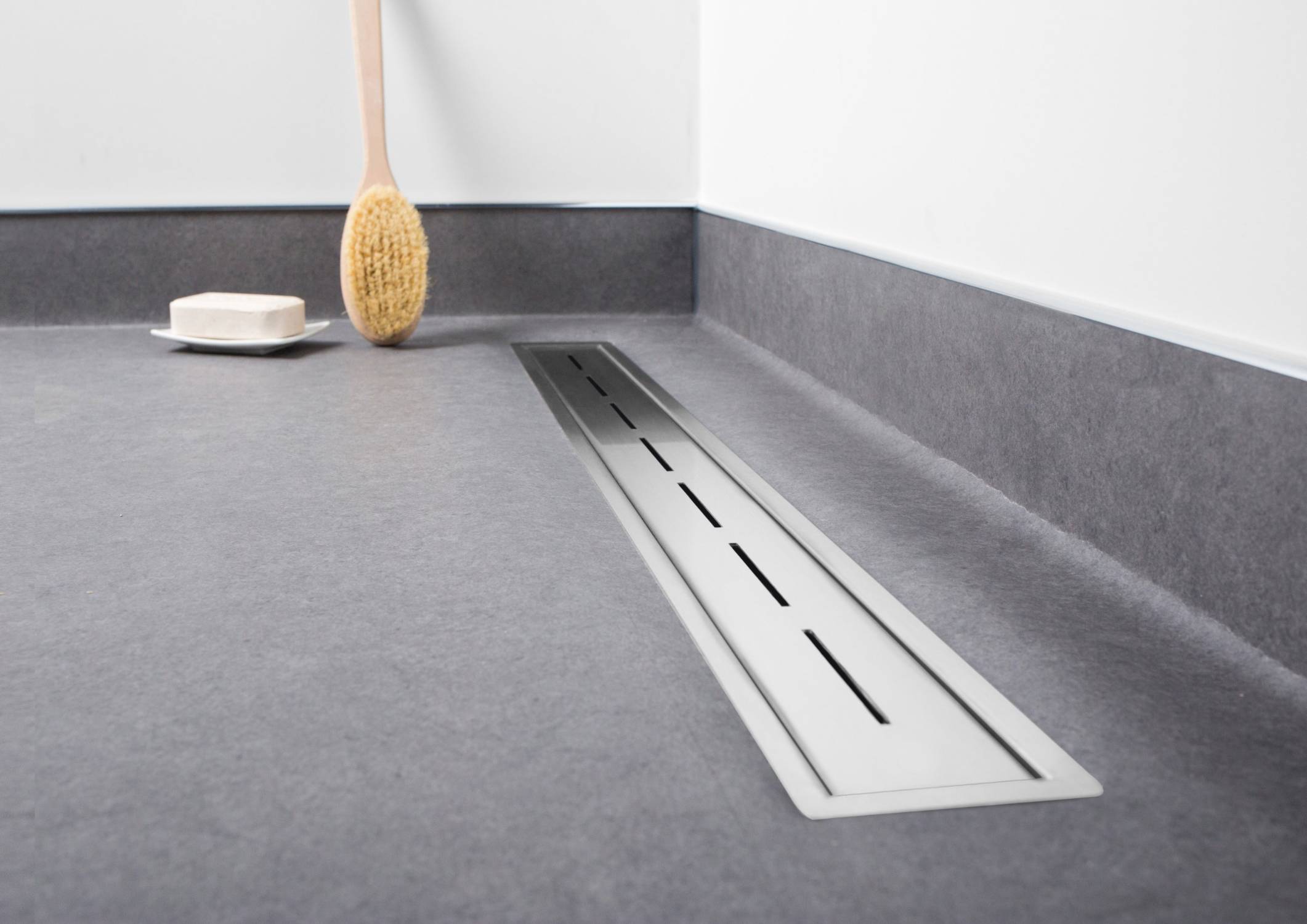

Linear shower drain, specially designed for use in combination with vinyl flooring. The vinyl can easily be clamped between the drain’s grate and build-in set to ensure a complete watertight installation. This way, the frame seamlessly fits into the vinyl floor. It is supplied as a complete set, including: lockable grate, trap body, drainage siphon and height-adjustable legs.

Features and benefits:

  • Available in lengths of 700–1200 mm.
  • 80 mm minimum installation depth.
  • Height-adjustable grate.
  • Removable and cleanable drainage syphon.
  • For vinyl flooring.
  • EN 1253-certified (50 mm water seal).

Application:

New construction or renovation.

General information

Material

Stainless steel

Size

700x89x69mm

Uniclass 2015

Pr_65_52_24_31 Floor gulliesPrimary
Specification data - Floor gullies

Product Reference

Vinyl - Shower drain

Standard

To EN 1253

Body

-

Configuration

Siphon

Material

Acrylonitrile butadiene styrene (ABS)/ polypropylene (PP)

Cover or grating

-

Type

Slot grating

Material

Stainless steel

Finish

Brushed

Outlet

Horizontal adjustable

Standard.

Vertical adjustable

Length

700 mm

800 mm

900 mm

1000 mm

1200 mm

Water seal height

28 mm

33 L/m drainage capacity, 80 mm minimum installation depth.

50 mm

41 L/m drainage capacity, 99 mm minimum installation depth.

Connection

28 mm water seal height: 40 mm; 50 mm water seal height. Global: 50 mm; UK: 56 mm

Suitable substrates

Concrete/ sand cement, Lewis sheets or wooden floors

Suitable floor finishes

Vinyl

Standard product features

Features:

Specially designed for use in combination with vinyl flooring.

Shape:

Rectangular.

Size:

69 mm width.

Warranty description:

Ten years.

Country of origin:

Netherlands.

Country of manufacture:

Germany.
