VINTEGRA P20 - Waterproofing Membrane/ Vapour Barrier
Verified by manufacturer 1 month ago
Waterproofing and Gas Vapour Protection Membrane.
Application
Suitable for below ground applications such as backfilled cast-in-place concrete and property line construction such as contiguous/ secant piling and steel sheet piling.
Applications include:
- Foundation walls.
- Earth-covered structures.
- Under slab.
Description
VINTEGRA® P20 membrane is specially designed to resist methane and other gas vapours from entering the building through the concrete foundation slab and walls. Lab studies have demonstrated the performance benefits of coextruded multi-layer ethylene vinyl alcohol copolymer (EVOH) barrier films, like that within the VINTEGRA® P20 membrane. Compared to HDPE membranes, EVOH-based barrier films can have a much lower methane gas transmission rate and radon diffusion coefficient.
General information
Color | Green |
Finish | Smooth |
Material | Butyl |
Shape | Rectangle Guidance for specification option: Roll. |
Length | 30000 mm |
Width | 1200 mm |
Height | 1.1 mm |
Uniclass | |
CAWS | D21/350 Gas-retardant membrane D21/38 Gas-retardant membranes |
Specification data - Plastics sheets
Material | Polyethylene and ethylene vinyl alcohol copolymer (EVOH) barrier. |
Purpose | Waterproofing and gas vapour protection membrane. |
Performance characteristics | |
Tensile strength (minimum) | To ASTM D412, 14.48 MPa (2100 psi). |
Tear resistance | To ASTM E514, 845 N (190 lbf).Guidance for specification option: Puncture resistance. |
Elongation to break | To ASTM D412, >500%. |
Resistant to underground gases | Methane, radon and others.Guidance for specification option:
Manufacturer guidanceConsult manufacturer's literature for further gas permeability performance details. |
Water vapour resistance (minimum) | Water vapour transmission rate to ASTM E96-B, 0.004 grains/hr·ft². |
Form | Coextruded, multi-layer engineered polymeric film. |
Physical properties | |
Colour | Green. |
Dimensions | |
Thickness (minimum) | To ASTM D5199, 1.1 mmGuidance for specification option: 46 mil. |
Width (minimum) | 1.2 m.Guidance for specification option: 4'. |
Roll length (minimum) | 30 m.Guidance for specification option: 100'. Manufacturer guidanceRoll weight: 42.6 kg. |
Adhesion to concrete | To ASTM D903 (mod), 1.751 kN/m. |
Flexibility at low temperature | To ASTM D1970, unaffected at -29°C. |
Technical characteristics, other | Hydrostatic pressure resistance to ASTM D5385 (Mod): 100 psi (231 feet). |
Sustainability data
Material | Butyl |
Literature
VINTEGRA® P20
VINTEGRA P20 Manual
Similar products from CETCO

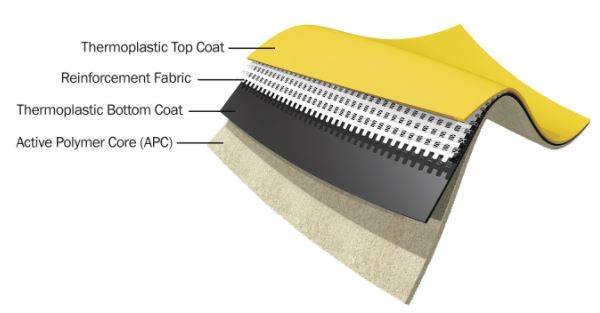

COREFLEX XP - Thermoplastic Waterproofing Membrane

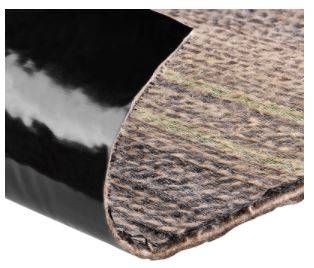

VOLTEX GB-500 - Gas vapour and waterproofing barrier
