Verified by manufacturer 3 months ago
Enclosed platform lift for commercial buildings with quiet, energy-efficient MRL design, automatic doors, and optional glazed structure, delivering passenger lift performance without a full lift shaft
An enclosed cabin lift for indoor or outdoor use, built to withstand demanding environments including offices, care homes, schools, and residential buildings. Fully compliant with Part M and the Equality Act.

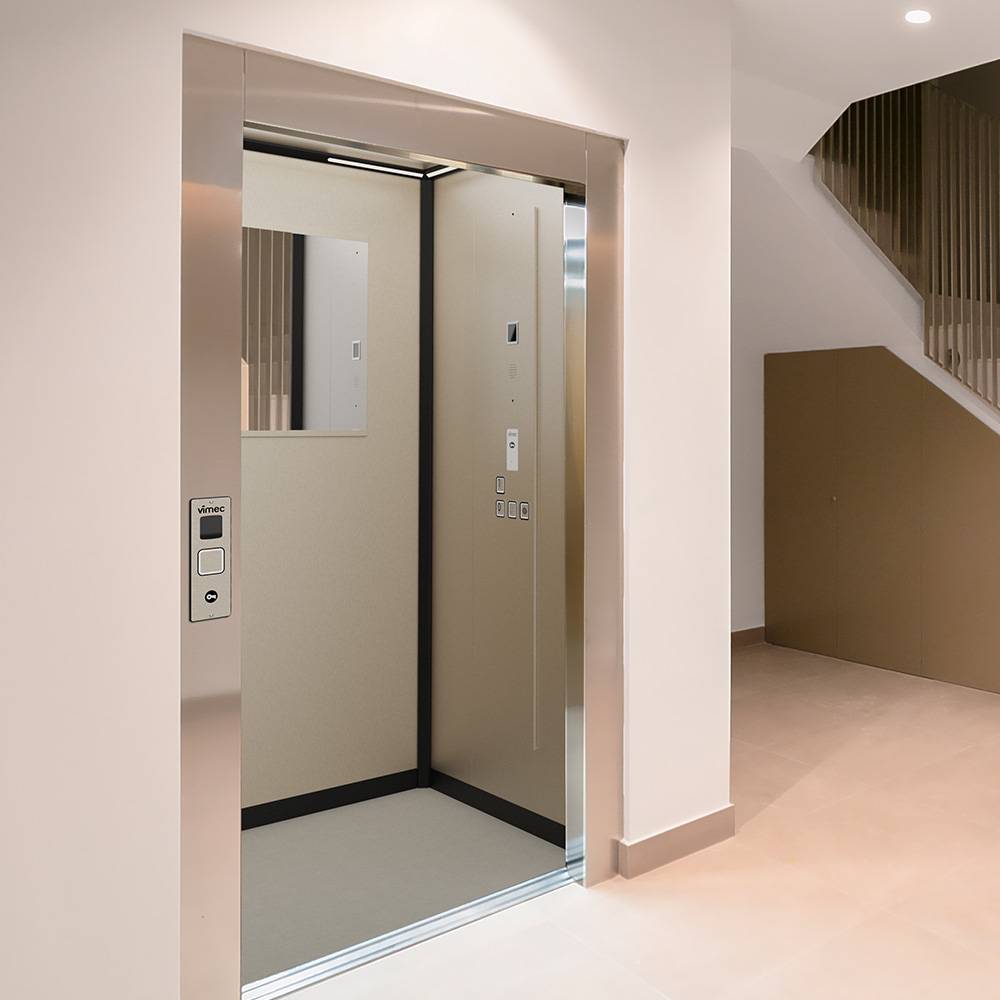

The AR:IA Commercial Cabin Platform Lift is a practical, enclosed vertical transport solution designed to improve accessibility across a wide range of commercial and public environments. Delivering smooth, quiet, and energy-efficient performance, it provides the look and feel of a conventional passenger lift but without the need for a full lift shaft or machine room.
Featuring automatic telescopic doors, a machine-room-less (MRL) design, and a compact footprint, the AR:IA is ideal for retrofits or buildings with limited space. Options include a self-supporting glazed structure, giving a premium aesthetic while simplifying installation.
Perfect for offices, retail stores, public buildings, and more, it can be specified for indoor or outdoor use, offering a flexible and compliant access solution that meets modern accessibility standards.
Features and benefits:
Material | Steel Glass Stainless steel |
Shape | Rectangle |
Uniclass | |
CAWS | X12/110 Vertical lifting platform systems X12/110 Vertical lifting platform systems |
Classification data | |
Standard | Consult manufacturer. Guidance for specification option: Complies to European Machine directive 2006/42/EC. |
Rated load (minimum) | 400 kg. |
Drive type | Double-belt traction drive system. Guidance for specification option: Machine room less. |
Carriage type | Fully enclosed. |
Carrier | |
Frame material | Manufacturer's standard. |
Frame finish | Manufacturer's standard. |
Frame colour | Manufacturer guidanceConsult manufacturer for options and insert requirements. |
Infill material | Solid panels. Guidance for specification option: Consult manufacturer for further details. Insert finish and colour requirements below. Glass. Guidance for specification option: Consult manufacturer for further details and insert requirements, including colour if applicable. |
Infill finish | Guidance for specification option: Consult manufacturer for options and insert requirements. |
Insert colour | Manufacturer guidanceConsult manufacturer for options and insert requirements. |
Doors | |
Arrangement | Adjacent. Single. Through. Manufacturer guidanceMaximum two doors per floor. |
Type | Two-stage telescopic sliding doors. Three-stage telescopic sliding doors. Four-stage telescopic sliding doors. |
Clear opening width (minimum) | Manufacturer guidanceConsult manufacturer for options and insert requirements. |
Fire classification | Manufacturer's standard. E60. Guidance for specification option: One-hour fire doors available on request; consult manufacturer for options and insert requirements. E120. Guidance for specification option: Two-hour fire doors available on request; consult manufacturer for options and insert requirements. |
Frame material | Manufacturer's standard. |
Frame finish | Manufacturer guidanceConsult manufacturer for options and insert requirements. |
Frame colour | Manufacturer guidanceConsult manufacturer for options and insert requirements. |
Carrier floor | |
Dimensions | |
Width (minimum) | Manufacturer guidanceConsult manufacturer for options including structural opening dimensions, and insert requirements. |
Depth (minimum) | Manufacturer guidanceConsult manufacturer for options including structural opening dimensions, and insert requirements. |
Material | Manufacturer guidanceConsult manufacturer for options and insert requirements. |
Colour | Manufacturer guidanceConsult manufacturer for options and insert requirements. |
Electrical supply | Single-phase 230 V a.c. 50 Hz 9A/ 20 A slow. Guidance for specification option: Control voltage: 24 V. Motor: 3 kW. |
Control device type | One-touch control. |
Control features | Manufacturer's standard. Guidance for specification option:
|
Accessories | Manufacturer guidanceConsult manufacturer for options and insert requirements. Communication options include: arrival gongs, voice annunciation, autodialler or autodialler with GSM unit. |
Enclosure | Manufacturer guidanceEnclosure top height: Insert requirements; minimum 2600 mm (based on 2000 mm-high cabin and doors). |
Overall height | Manufacturer guidanceInsert requirements. Travel height: 350–14 600 mm, 2–5 floors. |
Handrail | Manufacturer's standard. |
Console height | Manufacturer's standard. |
Lighting types | Manufacturer's standard. Guidance for specification option: Shaft lighting included as standard (Directive 2006/42/EC). |
Speed | Maximum rated: 0.15 m/s. |
Material | Steel Glass Stainless steel |
