VilX-CPP Assist Call Pull Cord Plate

Description

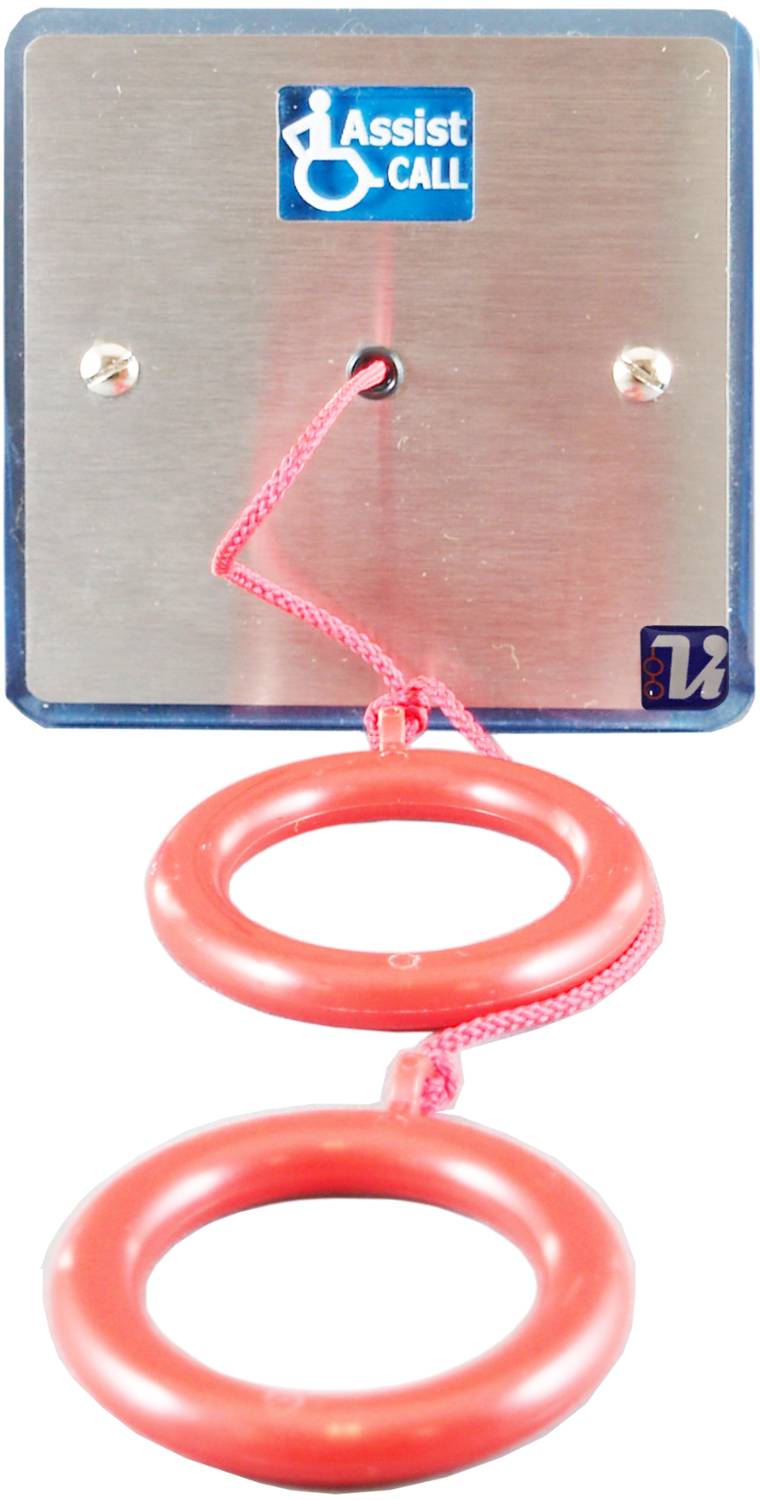

The ceiling pull plate is used to activate the alarm; the ceiling pull plate should be mounted with the lowest ring pull 100mm from the floor. The ceiling pull plate consists of a single gang brushed stainless steel plate as standard with a blue halo indicator for the visual alarm. For simplicity all wiring is a standard two core cable, up to 6 pull cords can be connected on a single line, the wiring order of the plates is not fixed and therefore can be wired in any order to give total flexibility in the installation routes. Each plate has two sets of two part terminals allowing simple cable connections and also a complete first fix solution. There is no practical limit to the number of pull cords on a single line, with the last one pulled registering.

General information

Features

Blue LED halo indicators, all wiring is two core and units can be wired in any order, high quality two part terminals suitable for 2.5 mm CSA cable, optional NiMH rechargeable monitored backup battery, 1 zone controller with accept button for remote indication

Material

Stainless steel

Shape

Square

Size

86 x 86 mm

Uniclass 2015

Pr_75_75_04_04 Assistance call pull cord unitsPrimary

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.1
Revit
-

1

2.1
Download now from NBS National BIM Library
