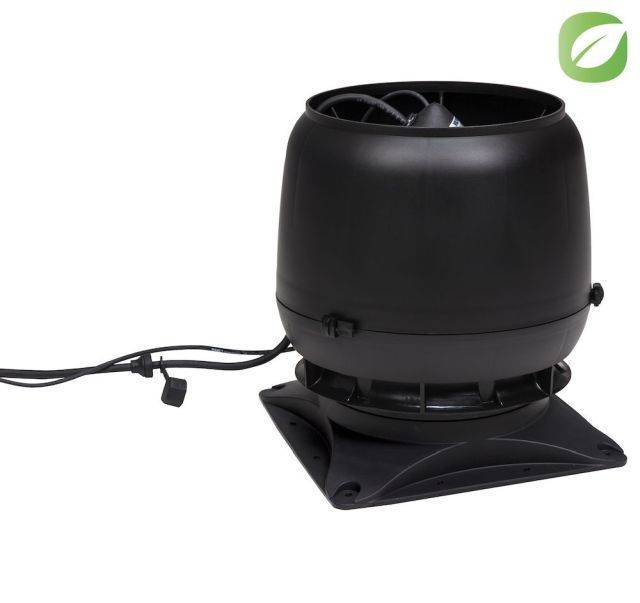

Modern, energy-saving roof fan with a direct current (DC) motor, for installation on a flat surface.
Energy-efficient roof fan with a direct current (DC) motor for the top of an air conduit or silencer, controlled with a 0–10 V voltage. An installation set for a flat surface is included. VILPE® ECo Controller is available separately.
The roof fan can also provide an output signal which can be used to monitor the motor’s rpm. This allows connecting ECo roof fans to an automatically controlled building technology system where they can be monitored and controlled with the system’s central processing unit (CPU).
The fan is based on the EC technology: An electronically commuted fan with a brushless DC motor. ECo roof fans address the challenge of reducing total energy consumption by saving energy, as the DC motor is much more effective than an alternating current (AC) motor. Calculations on the efficiency needed to move air show that a VILPE® ECo roof fan will save up to 40–60% of energy when compared to an AC roof fan, depending on the application.
VILPE® ECo roof fans meet the requirements of the ERP2015 directive.
Polypropylene (PP) plastic
Duct diameter: 125 mm
Installation set: 300 x 300 mm
|Uniclass 2015||Roof-mounted fans (Pr_65_67_29_72)|
VILPE® Eco190S/Ø125 Roof Fan
Black - RAL9005
Brick Red - RAL8004
Brown - RAL8019
Green - RAL6020
Grey - RAL7015
Light Grey - RAL7040
Red - RAL3009
VILPE® ECo Controller
|Standard product features|
Polypropylene (PP) plastic.
