Viega Smartpress - Polymer multilayer piping system

Verified by manufacturer 1 month ago

VIEGA LTD Third party certifications:
  • WRAS

    WRAS

    Certificate type

  • EPD

    EPD

    Certificate type

Press connector system with press connectors made of gunmetal and stainless steel and MLCP PEX-C pipes.

Jump to:
+44 (0)204 582 6495 Website

Application

  • Suitable for concealed and pre-​wall installations of riser pipes and floor installations.
  • Suitable for potable water and heating installations.

Description

Flow-​optimized press connector system with press connectors made of gunmetal and stainless steel and multi-​layer PEX-C pipes. Multi-​layer PEX-C pipe, dimensionally stable, oxygen seal. Press connectors are stainless steel with PPSU support body to ensure the leak tightness and mechanical strength of the connection. Safe and fast connection without widening or calibration of the pipe ends through O-​ring-​free press technology in all pipe dimensions. For protection pipes are equipped with pipe plugs.


Marking:

Manufacturer, pipe dimension, batch, green dot on press end, system approvals


Press connector with SC‑Contur:

Inadvertently unpressed connections become visibly leaky when the system is filled. Viega guarantees the detection of unpressed connections in the following pressure ranges:

  • Minimum water pressure: 0.1 MPa / 1 bar / 14.5 PSI.
  • Maximum water pressure: 0.65 MPa / 6.5 bar / 94.3 PSI.
  • Minimum air pressure: 22 hPa / 22 mbar / 0.3 PSI.
  • Maximum air pressure: 0.3 MPa / 3 bar / 43.5 PSI.

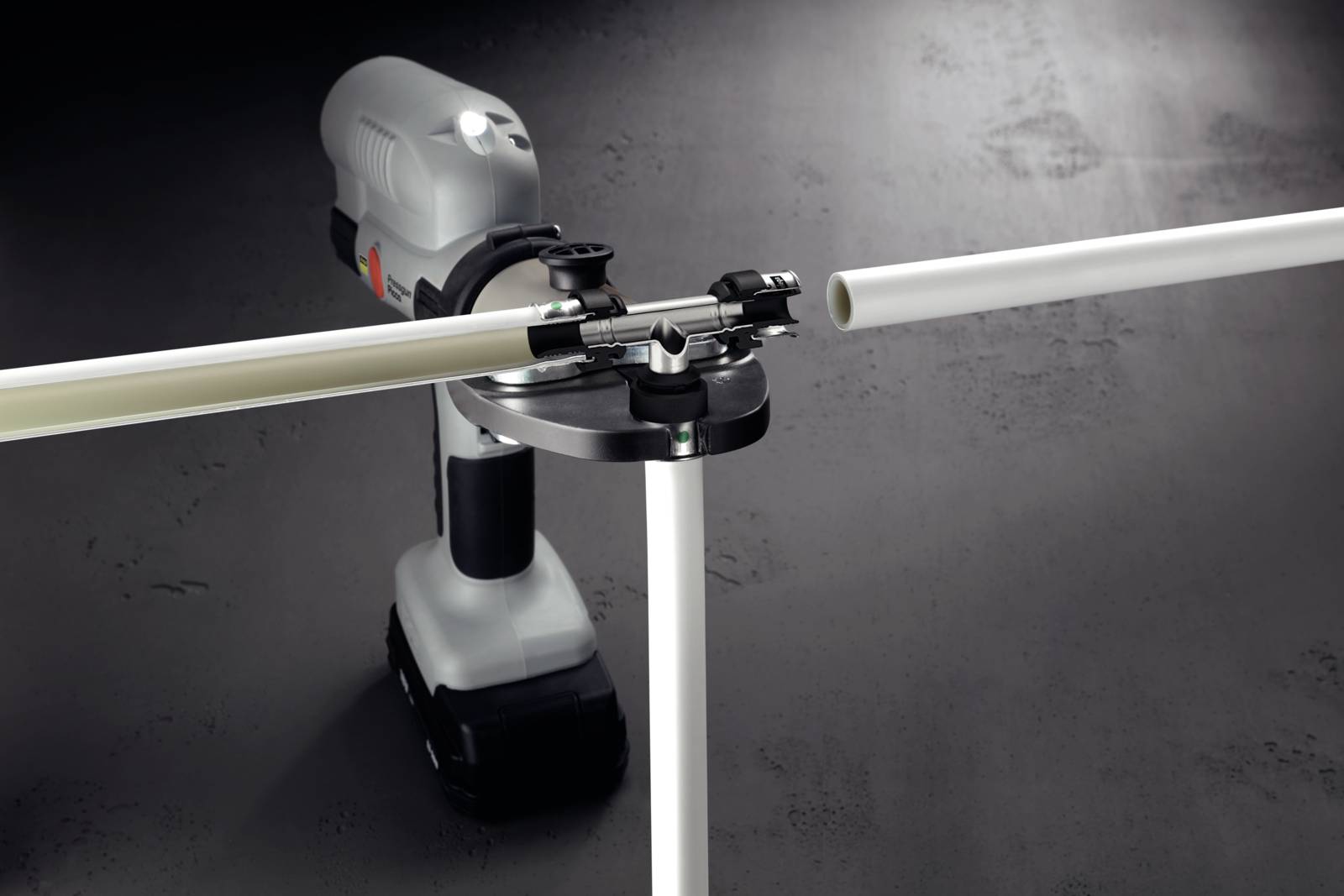

Tools:

The functional safety of Viega press connector systems depends primarily on the faultless condition of the press tools used. For the manufacture of press connections, Viega recommends the use of Viega press tools. Viega press tools have to be regularly maintained by authorized service partners.


Standards and approvals:

Approved for d16–63 in accordance with WRAS approval number 1709382.

General information

Color

White

Silver

Material

Gunmetal

Guidance for specification option:

Gunmetal: CC499K.


Stainless steel

Guidance for specification option:

Stainless steel 1.4401.

Cross-linked polyethylene (PE-X)

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Six year

Uniclass

Pr_65_52_63_23 Cross-linked polyethylene (PE-X) pipes and fittingsPrimary

CAWS

T90/410 Thermoplastics pipelines

S90/540 Thermoplastics pipework

Product range

Piping Technology

Specification data - Cross-linked polyethylene (PE-X) pipes and fittings

Standards

-

Fittings

Manufacturer's standard.

Guidance for specification option:

Press fittings and MLCP pipes (PE-Xc/Al/PE-Xc), with connectors manufactured from stainless steel (316L) and silicon bronze. The pipes and fittings shall be supplied and manufactured by Viega. Fittings shall incorporate a SC-Contur leakpath, ensuring connections which remain un-pressed become visible when the system is filled. All press fittings are to be made entirely within the manufacturer's guidelines, using Viega approved tooling.

Pressure rating

Potable water installations: 1.0 MPa/ 10 bar/ 145 PSI.
Heating installations: 1.0 MPa/ 10 bar/ 145 PSI.

Colour

White/ silver.

Guidance for specification option:

Pipe/ connectors.

Type

-

Manufacturer guidance

Consult literature and insert requirements [part number(s)].

Accessories

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Sizes

16–63 mm.

MaximumOperatingTemperature

Potable water installations: 70°C/ 158°F. Heating installations: 80°C/ 176°F.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Third party certifications

Third party certifications

WRAS

WRAS

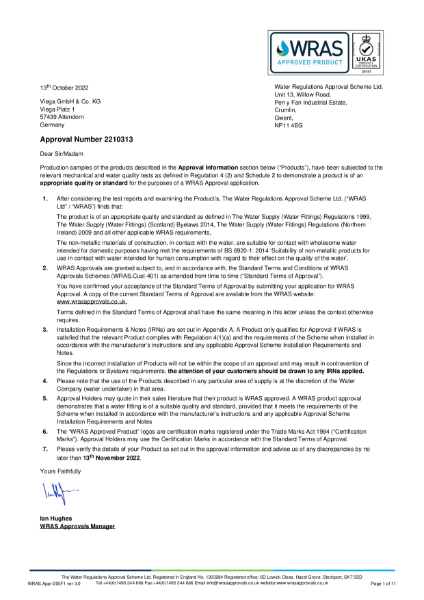

WRAS - VIEGA ‘SMARTPRESS’ RANGE OF CRIMPED PRESS-FIT FITTINGS WITH STAINLESS STEEL, PPSU OR GUNMETAL BODIES FOR USE WITH VIEGA SMARTPRESS/PEXFIT PRO MULTILAYER (PE-XC/AL/PE-XC) PIPE.

WRAS

WRAS

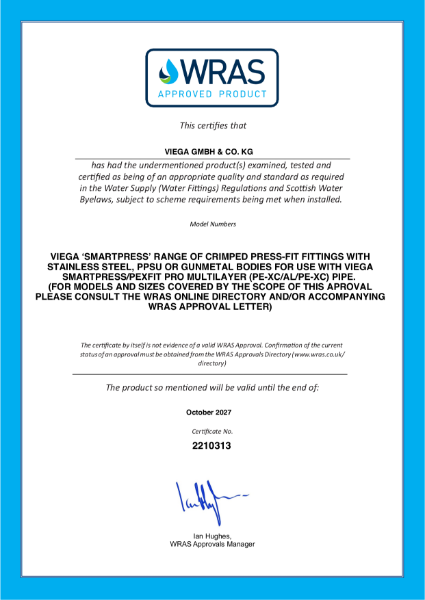

WRAS - VIEGA ‘SMARTPRESS’ RANGE OF CRIMPED PRESS-FIT FITTINGS WITH STAINLESS STEEL, PPSU OR GUNMETAL BODIES FOR USE WITH VIEGA SMARTPRESS/PEXFIT PRO MULTILAYER (PE-XC/AL/PE-XC) PIPE - 1

EPD

EPD

Viega_Smartpress_EPD
