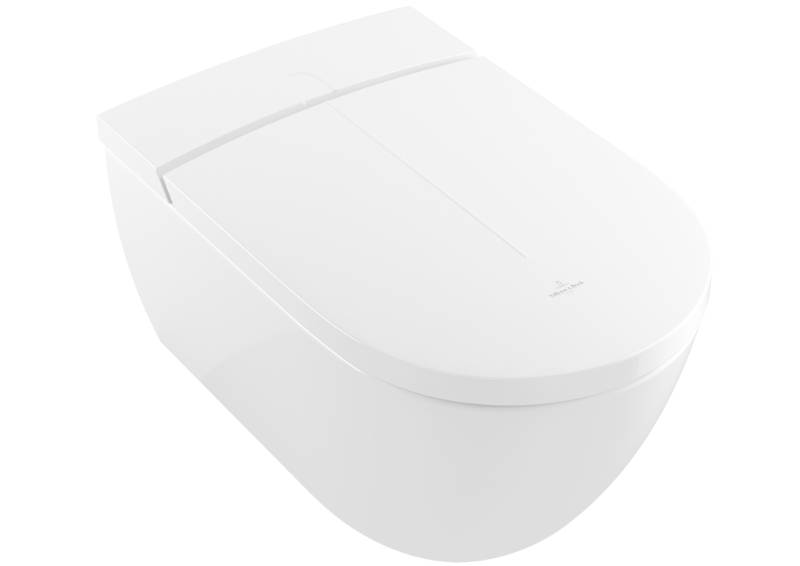

ViClean Combipack V0E100
Verified by manufacturer 8 months ago
Rimless, shower toilet.
Application
Suitable for shower toilet.
Description
Rimless, shower toilet.
Features and benefits:
- ViClean-I 100, DirectFlush.
- Sanitary ceramics.
- Power and water connection must be available. Use only in working pressure range between 0.1 Mpa (dynamic) and 1.0 Mpa (static). Use solely in a water temperature range between 10°C and 35°C.
- Fastening set included.
- Composed of ViClean shower toilet-I 100, 385 x 595 x 400 mm, 220-240 V a.c. / 50 Hz, incl. remote control, seat with lid, Water connection set.
- With water-saving AQUAREDUCT® system: flush volume 3/ 4.5 litres
- Cistern capacity 3/ 4.5 L.
- Complies with EN 997, EN 1717.
- LEED 4.
- European water label 3,375 L.
- Individual packaging materials.
- Please order compatible toilet element separately.
General information
Color | White |
Material | Ceramic Guidance for specification option: Sanitary ceramics |
Shape | Oval |
Width | 385 mm |
Uniclass | |
CAWS | N13/10 WC pans and flushing arrangements N13/300 WCs and cisterns |
Specification data - WC pans
Standard | To BS EN 997. |
Form | Wall-mounted, washdown. |
Pan height | 415 mm. |
Materials | |
Body | Ceramic.Guidance for specification option: Sanitary ceramics. |
Finish and colour | White. |
Water supply, outlet and seat holes | |
Water supply | Back inlet. |
Outlet | Horizontal. |
Weight | 34 kg. |
Width | 385 mm. |
Depth | 595 mm. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 ARCHICAD | - | 1 |
 SketchUp | - | 1 |
 OBJ | - | 1 |
 3Ds Max | - | 1 |
 Revit | - | 1 |
