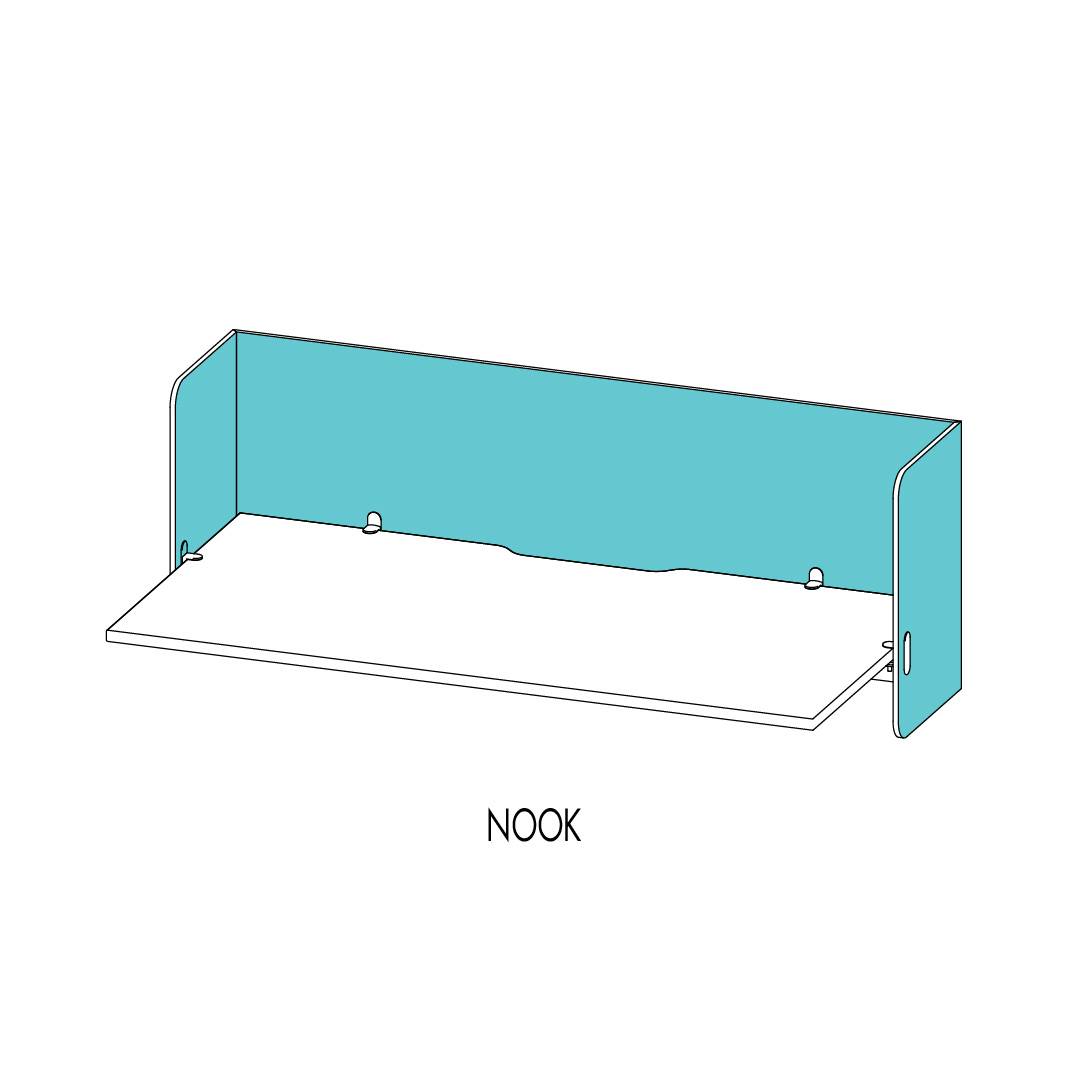

Vicinity™ Desk Screens Nook

Name: Vicinity™ Desk Screens Nook
Brand: Autex Acoustics Ltd
SKU: hj4uyGmbXJwnthbGEAnpL

Verified by manufacturer 3 months ago

Autex Acoustics Ltd

Third party certifications:

Green Tag
Certificate type
HPDC Certification
Certificate type

Acoustic desk screen system

Jump to:

BOS

+44 (0)1422 418 899 Website

Application

Suitable for most desks
Commercial/office spaces
Home offices
Education
Libraries

Description

A simple, intelligent desk screen system that provides both physical and acoustic shelter; a sanctuary for focused, independent work. Available in eight classic designs, the Vicinity™ range features a curated collection of flat and pressed screens.

Features and benefits:

Delivers excellent acoustic performance
Available in eight classic designs and a sophisticated colour palette
Flat or pressed finished options
Modular system complete with desk clamps for non-destructive fixing
Semi-permanent—easy to install and move as required
Solid colour and smooth finish
No capping required
Pinnable surface
Durable and easily maintained
Customisable with pressed screen finish
Carbon neutral
Made locally

General information

Color	Beige Black Blue Cream Gold Green Grey Ivory White Yellow Pink Purple Brown Orange Turquoise Show more Manufacturer guidance Available in a range of colours.
Finish	Smooth
Material	Polyester fibre (PET) Guidance for specification option: 100% polyester (PET), die-cast zinc.
Shape	Rectangle
Length	2400 mm
Width	600 mm
Height	400 mm

Uniclass	Pr_35_93_13_80 Sound attenuator infill unitsPrimary
CAWS	M52/110 Wallcoverings N10/195 Noticeboards K13/160 Proprietary K13/170 Acoustic panel lining K13/170 Acoustic panel lining

Specification data - Sound attenuator infill units

Form	Desk partition.
Rigidity	Semi rigid.
Application	Desk mounted.
Material	Polyester fibre.
Material density	200 kg/m³.
Acoustic performance	-
Purpose	Absorber.
Sound absorption	Guidance for specification option: 1.50 metric Sabins per unit.
Fire performance	-
Reaction to fire	B - s2, d2.
VOC emissions	0.092 mg/m³. Guidance for specification option: CDPH Standard Method v1.2-2017: after 14 days, office room scenario.
Dimensions	-
Size (length x width)	2400 x 600 mm.
Thickness (overall)	12 mm.
Profile	Geometric profile.
Edges	Square.
Surface pattern	Solid.
Finish	Smooth.
Colour	Acros. Bosco. Empire. Falling Water. Flatiron. Galaxy. Ironbank. Lotus. Opera. Pavilion. Petronas. Pinnacle. Rosada. Savoye. Senado. Tree House. Zenith.

Light fastness (to BS EN ISO 105 B02)	6.
Moisture Absorption (ASTM D570)	0.4% by weight (ASTM C1104: 49°C at 95%RH, 4 days).
Weight	2400 g/m².

Sustainability data

Contains Red List materials	No
Country of product manufacture	United Kingdom
Material	Polyester fibre (PET) Guidance for specification option: 100% polyester (PET), die-cast zinc.
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	1.89 kg CO₂ eq/kg Self declared
Recyclability	100 Guidance for specification option: Global GreenTag GreenRate Level A, Declare certified LBC Red List Free, Low VOC and formaldehyde emissions, Contains minimum 60% recycled polyester fibre, 100% recyclable, ISO 14001 certified Environmental Management System (EMS).
Recycled content As defined in clause 7.8 of BS EN ISO 14021	60 % Guidance for specification option: Minimum 60% post-consumer recycled PET material.

BIM objects

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform	Compatible	Version
Revit	-	1
IFC	-	1

Third party certifications

Green Tag

Environmental Product Declaration - Cascade™, Cube™, Frontier™, Groove, Horizon™, Lanes™, Lattice™, and Vicinity™

Green Tag

Global Green Tag - Cascade™, Composition®, Cove™, Cube™, Frontier™, Grid Ceiling Tiles, Groove, Horizon™, Lanes™, Lattice™, Symphony®, Vicinity™, and Vertiface®
