Vertiface®

Verified by manufacturer 3 months ago

Autex Acoustics Ltd Third party certifications:
  • Declare

    Declare

    Certificate type

  • Green Tag

    Green Tag

    Certificate type

  • HPDC Certification

    HPDC Certification

    Certificate type

Fabric wallcovering

Jump to:
BOS
+44 (0)1422 418 899 Website

Application

  • Education
  • Commercial/office space
  • Retail
  • Feature walls
  • Childcare

Description

A durable and versatile fabric wallcovering made from 100% polyester fibre, with a soft velour finish on one side and a sleek flat pile on the other. Available in a diverse colour palette, Vertiface® can be used in a range of applications such as furnishing fabric, wall covering, and acoustic panel overlay.


Features and benefits:

  • Versatile fabric that is easily customisable
  • Can be used as a furnishing fabric, wallcovering, and acoustic panel overlay
  • Porous fabric ideal for overlaying acoustic panels
  • Pinnable and hook-and-loop receptive with a self-healing surface
  • Design flexibility with a diverse colour palette
  • Carbon neutral
  • Made locally

General information

Color

Beige

Black

Blue

Cream

Gold

Show more

Finish

Textured

Guidance for specification option:

Fine velour

Material

Polyester fibre (PET)

Guidance for specification option:

Polyester fibre (PET).

Shape

Rectangle

Warranty description

Ten year

Uniclass

Pr_35_93_13_80 Sound attenuator infill unitsPrimary

CAWS

N10/195 Noticeboards

K13/160 Proprietary

M52/110 Wallcoverings

M52/10 Wallcoverings

K13/170 Acoustic panel lining

M50/110 Resilient floor tiling

Specification data - Sound attenuator infill units

Form

Fabric.

Rigidity

Flexible.

Application

Wall mounting.

Material

Polyester fibre.

Material density

109 kg/m³.

Acoustic performance

-

Purpose

Absorber.

Sound absorption

Class D to BS EN ISO 11654.

Fire performance

-

Reaction to fire

B-s1, d0.

VOC emissions

0.0035 mg/m³.

Guidance for specification option:

CDPH Standard Method v1.2-2017: after 14 days, office room scenario.

Dimensions

-

Size (length x width)

50,000 x 1300 mm.

Thickness (overall)

3 mm.

Profile

Linear.

Surface pattern

Micro perforated.

Colour

Atlantis.

Avocado.

Azure.

Bark.

Blazing Red.

Blush.

Brilliant Orange.

Calypso.

Charcoal.

Chilli Red.

Cinder.

Citrus.

Civic.

Clay.

Electric Blue.

Emerald.

Fawn.

Granny smith.

Ink.

Jade.

Koala.

Lightsout.

Lime.

Myst.

Noir.

Octane.

Phantom.

Porcelain.

Raspberry.

Sage.

Sapphire.

Sanz.

Silver.

Simba.

Spearmint.

Stately.

Stonewash.

Theatre.

Vintage.

Wasabi.

Manufacturer guidance

Custom – Consult manufacturer for details.

Roll size

1300 x 50000 mm.

Thickness:

3–4 mm.

Light fastness (to BS EN ISO 105 B02)

3.

Weight

400 g/m².

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Polyester fibre (PET)

Guidance for specification option:

Polyester fibre (PET).

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

1.89 kg CO₂ eq/kg

Self declared

Recyclability

yes

Guidance for specification option:

Global GreenTag GreenRate Level A, Declare certified LBC Red List Free, Low VOC and formaldehyde emissions, Contains minimum 60% recycled polyester fibre, 100% recyclable, ISO 14001 certified Environmental Management System (EMS).

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

60 %

Guidance for specification option:

Minimum 60% post-consumer recycled PET material.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC

IFC2X3

2

Revit

Revit 2016

3

Third party certifications

Declare

Declare

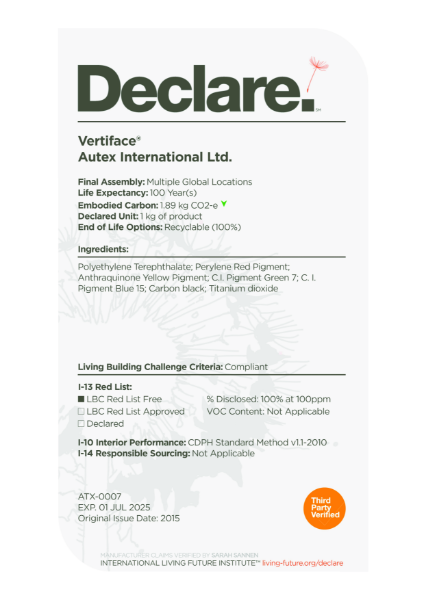

Declare - Vertiface®

Green Tag

Green Tag

Environmental Product Declaration - Symphony®, Composition®, and Vertiface®

Green Tag

Green Tag

Global Green Tag - Cascade™, Composition®,  Cove™, Cube™, Frontier™, Grid Ceiling Tiles, Groove, Horizon™, Lanes™, Lattice™, Symphony®, Vicinity™, and Vertiface®

HPDC Certification

HPDC Certification

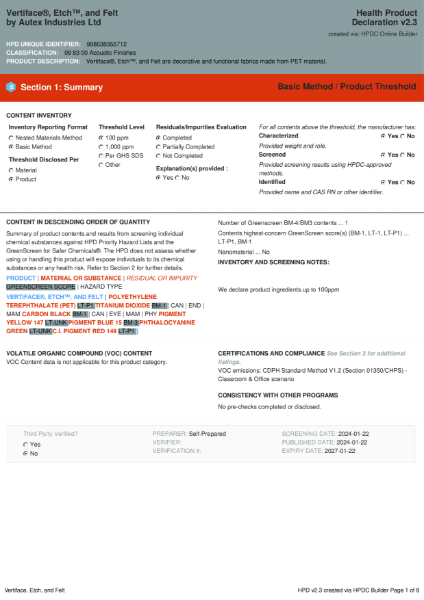

Health Product Declaration - Vertiface®, Etch, and Felt™

Literature

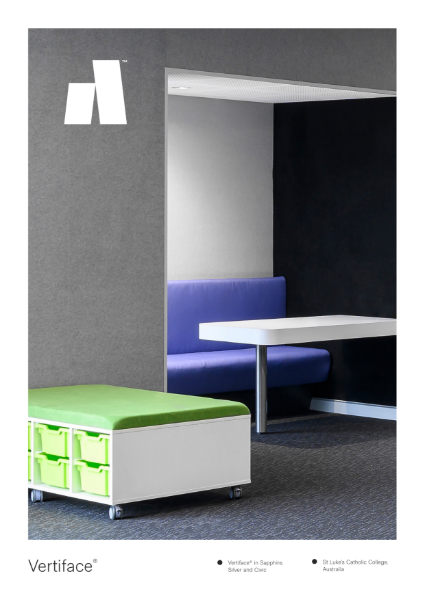

Vertiface Lookbook

Vertiface Lookbook

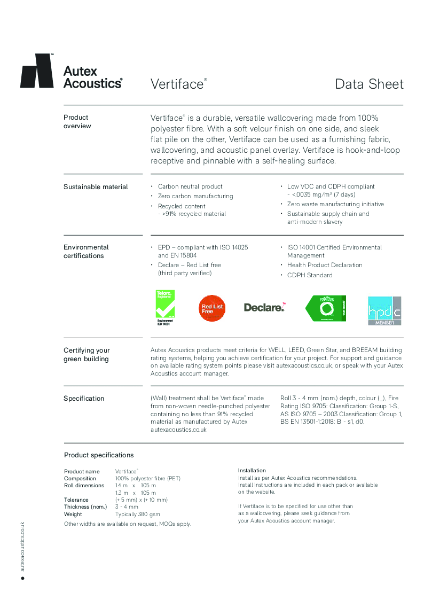

Vertiface Datasheet

Vertiface Datasheet

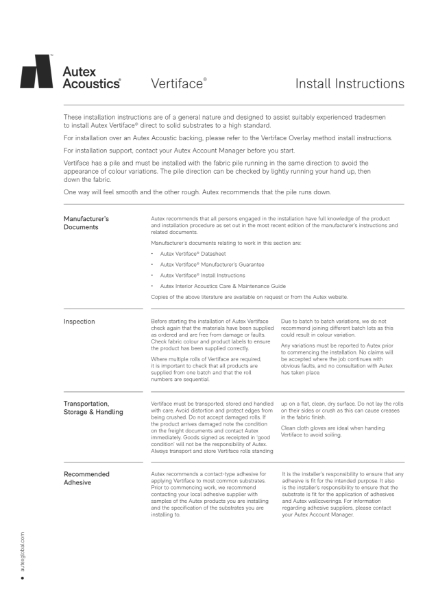

Vertiface Install Instructions

Vertiface Install Instructions

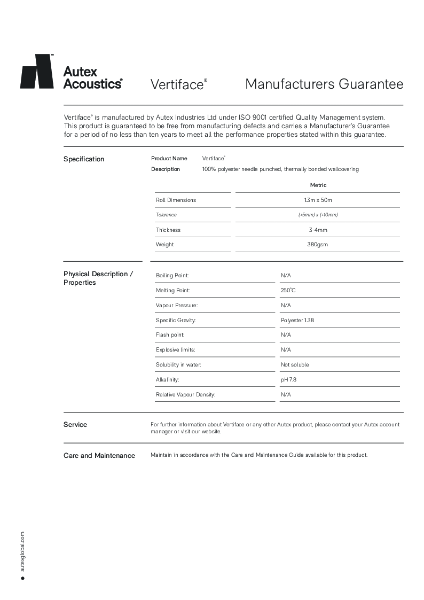

Vertiface Manufacturers Warranty

Vertiface Manufacturers Warranty

Colour Guide

Colour Guide

Case studies

Acoustics for learning environments

Acoustics for learning environments

Project spotlight: Work Life, Old Street

Project spotlight: Work Life, Old Street

Panel & Premium acoustics for successful secondary school

Panel & Premium acoustics for successful secondary school
