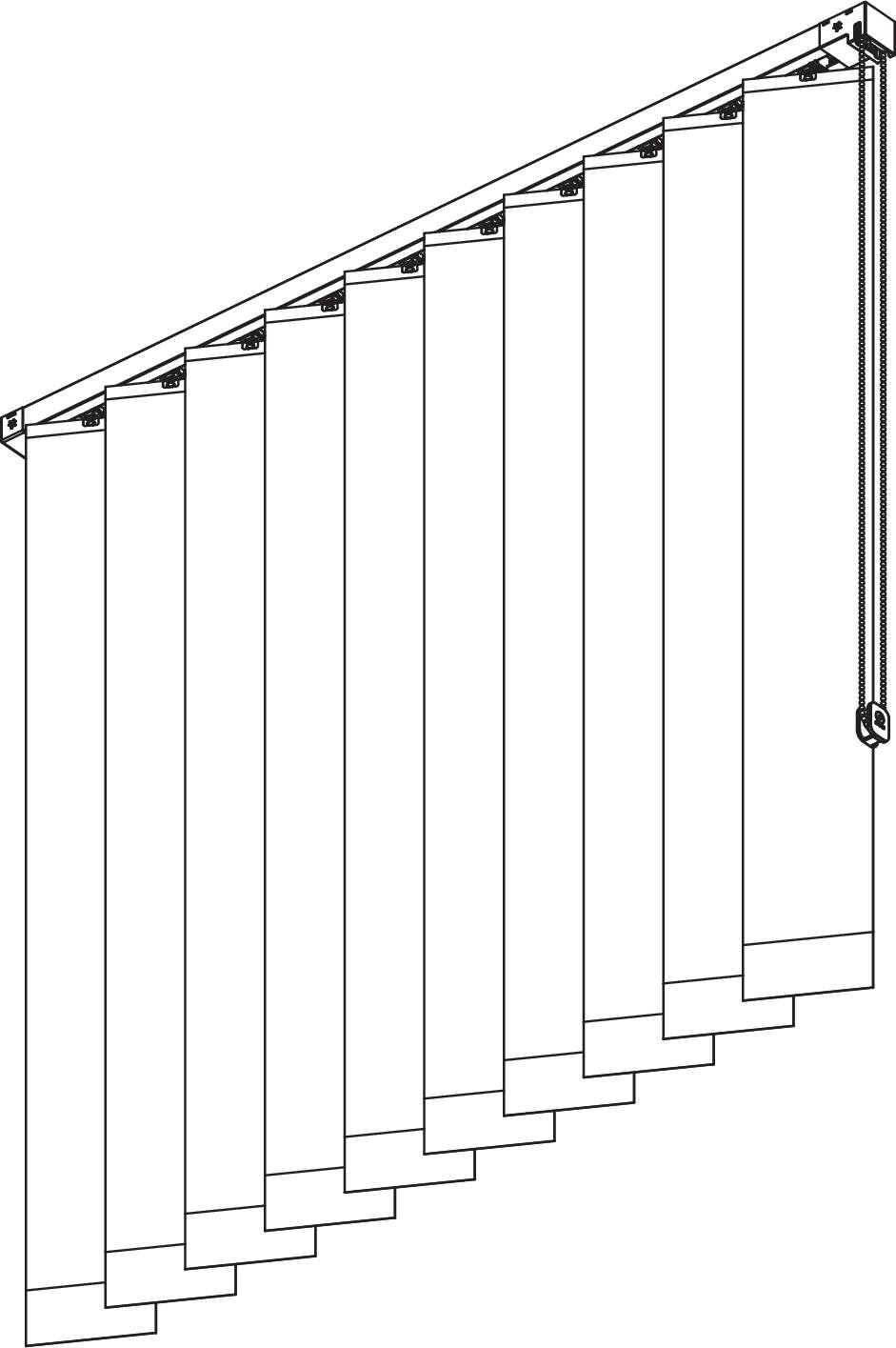

Vertical Blind - Chain Operated - Silent Gliss SG 2910
Verified by manufacturer 8 days ago
Chain operated vertical blind system.
Application
Vertical blind applications.
Description
Chain operated vertical blind system.
Features and benefits:
- Optimised light control.
- Mono controlled.
- Louvre width: 127 mm.
- Vertical Waves available.
- Fitting: ceiling, wall, recess.
- Colours: white RAL 9016, black RAL 9005, anodized aluminum and special colours available upon request.
- Fabrics: Please refer to Silent Gliss fabric collection.
General information
Color | White Black Grey Guidance for specification option: *Profile alu anodised *Not all plastic parts available in grey Manufacturer guidanceSpecial colours possible. |
Finish | Powder-coated Anodized |
Material | Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Five year |
Uniclass | |
CAWS | B12/400 Blinds B12/50 Blinds N1/302 Window blinds N10/70 Blinds N10/240 Blinds |
Specification data - Vertical blinds
Classification data | |
Standards | To BS EN 13120. |
Slats | |
Width (maximum) | 127 mm. |
Colour | Manufacturer guidanceA wide choice of slats and colours is available; consult manufacturer for details and insert requirements. |
Headrail | |
Material | Aluminium. |
Colour | White. Silver. Black. Other. |
Operation | Manual, chain. |
Dimensions | 44 x 28 mm. Manufacturer guidanceHeadrail dimensions (width x depth). |
Fixings | Standard ceiling bracket (Ref 3033). Guidance for specification option: Ref 3033 - End clamps to be placed 200 mm from end of headrail. Standard ceiling bracket (Ref 3044). Wall fixing square extension bracket (Ref 11202). Guidance for specification option: 92 mm projection to outer face of track. End clamps (Ref 3033) and M4 x 6 screws (Ref 10395) needed. Wall fixing square extension bracket (Ref 11203). Guidance for specification option: 112 mm projection to outer face of track. End clamps (Ref 3033) and M4 x 6 screws (Ref 10395) needed. Wall fixing square extension bracket (Ref 11204). Guidance for specification option: 142 mm projection to outer face of track. End clamps (Ref 3033) and M4 x 6 screws (Ref 10395) needed. Wall fixing square extension bracket (Ref 11212). Guidance for specification option: 92 mm projection to outer face of track. M4 x 6 screws (Ref 10395) needed. Wall fixing square extension bracket (Ref 11213). Guidance for specification option: 112 mm projection to outer face of track. M4 x 6 screws (Ref 10395) needed. Wall fixing square extension bracket (Ref 11214). Guidance for specification option: 142 mm projection to outer face of track. M4 x 6 screws (Ref 10395) needed. Wall fixing universal extension bracket (Ref 11154). Guidance for specification option: 110–130 mm projection to outer face of track. M4 x 8 screws (Ref 10492). Wall fixing universal extension bracket (Ref 11155). Guidance for specification option: 132–160 mm projection to outer face of track. M4 x 8 screws (Ref 10492). Wall fixing universal extension bracket (Ref 11156). Guidance for specification option: 182–210 mm projection to outer face of track. M4 x 8 screws (Ref 10492). Recess channel profile (Ref 118660). Guidance for specification option: Blind headrail wedged into channel using special wedges (Ref 5118). |
Type | Straight. Wavy (wall ending wavy edge). Wavy (wall ending straight edge). |
Stacking arrangement | Single stack in one direction. Guidance for specification option: A. Pair stack in two directions symmetrical. Guidance for specification option: B. Pair stack in one direction asymmetrical. Guidance for specification option: C. Pair stack in two directions asymmetrical. Guidance for specification option: D. Multiple stacking in one direction symmetrical or assymmetrical. Guidance for specification option: E. |
Sustainability data
Material | Aluminium |
Similar products from Silent Gliss Ltd

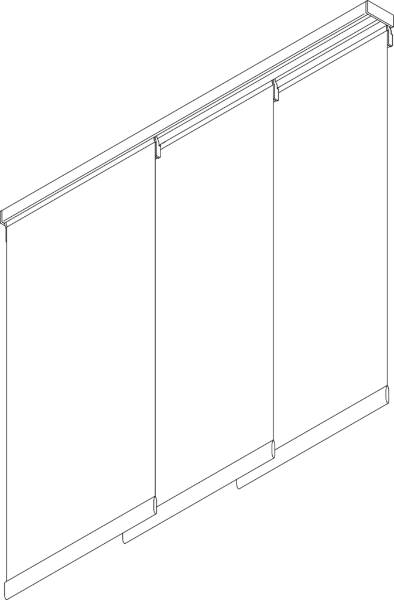

Panel Glide Window Shading and Room Dividing System - Hand Operated - Silent Gliss SG 2700 - Panel Blind
