Vertical Blind 6000 Series
Verified by manufacturer 5 months ago
Vertical louvre blind system with aluminium head track and weights and chains along the base of the blind.
Application
For vertical windows, high level windows, sloped head/sill windows, large curtain walling, doors
Description
The 6000 Series Vertical Louvre Blind is available with louvre widths in 89 mm and 127 mm in a wide variety of commercial flame retardant fabrics. The louvre trucks have a robust construction suitable for a contract environment and have an extended life for high-wear areas.
Features and benefits:
- Flexible and easy to use shading.
- Hard wearing system.
- Smooth and easy to operate.
- Child safe options.
General information
Color | White Guidance for specification option: Headrail with white powder coated finish. Custom RAL finishes available |
Finish | Powder-coated |
Material | Fabric |
Shape | Other |
Length | 5000 mm |
Width | 89 mm 127 mm Manufacturer guidanceof slat |
Height | 4500 mm |
Warranty description | One year Guidance for specification option: 12 months from the date of installation |
Uniclass | |
CAWS | N10/70 Blinds N10/240 Blinds |
Specification data - Vertical blinds
Standards | To BS 5867-1, BS 5867-2 and BS EN 13120. |
Position | Internal to vertical glazing. |
Dimensions (minimum width x depth) | 4500 x 5000 mm. Guidance for specification option: 4500 mm (maximum width), 5000 mm (maximum drop) |
Slats | |
Width (maximum) | 89 mm. 127 mm. |
Material | Fabric. |
Finish | Guidance for specification option: Subject to fabric specified. |
Colour | Guidance for specification option: From standard range. |
Headrail | |
Material | Powder coated extruded aluminium. |
Colour | White. |
Operation | Manual mono chain operation. Manual cord and chain operation. Manual wand operation. Electric motor operation. |
Operating effort | To BS EN 13120, class 1. |
Testing | Solar transmittance. |
Mechanism endurance | To BS EN 13120, class 1. |
Accessories | None. Sealed in weights with no chains. Sewn. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Fabric |
Recyclability | Manufacturer guidanceSubject to fabric specified. Recyclable where facilities exist. |
Literature
Literature type
6000 Series Vertical Blind - Drawing Manual Cord

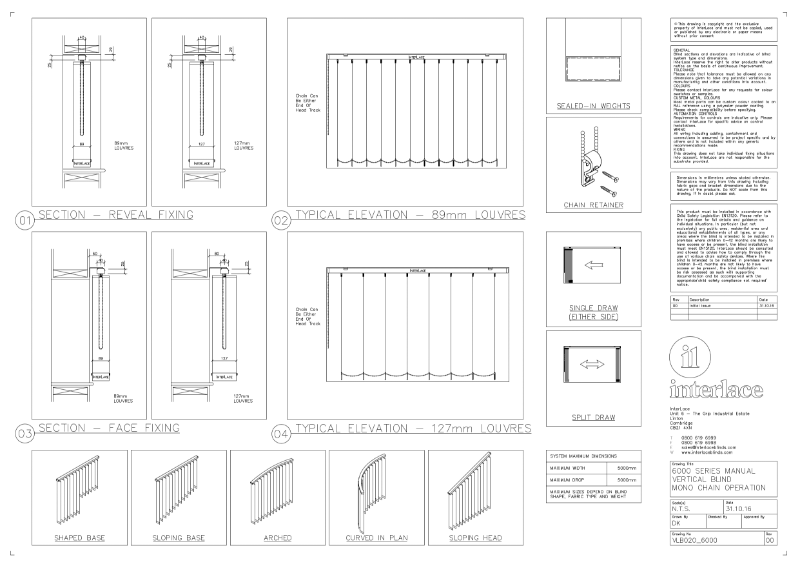

6000 Series Vertical Blind - Drawing Manual Mono Chain
6000 Series Vertical Blind - Drawing Manual Mono Wand
6000 Series Vertical Blind - Drawing Motorised

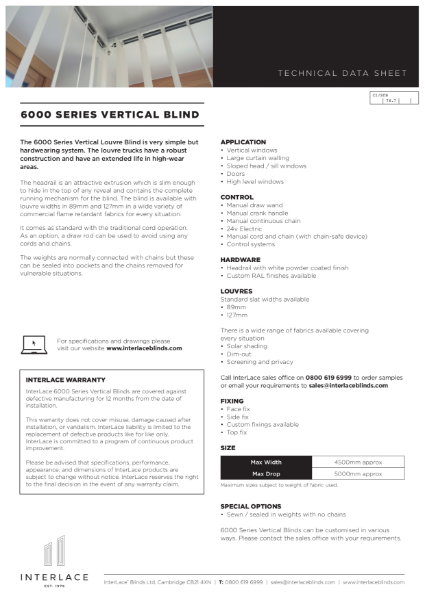

6000 Series Vertical Blind - Literature
