Verti 45 (Semi Vertical) - Cycle storage

Verified by manufacturer 4 months ago

Bellsure Group Third party certifications:
  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • CQMS

    CQMS

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • FSC

    FSC

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • The Railway Industry Supplier Qualification Scheme

    The Railway Industry Supplier Qualification Scheme

    Certificate type

  • smas WORKSAFE

    smas WORKSAFE

    Certificate type

Bike storage which is angled for easier use.

Jump to:
BOS
+44 (0)1730 719292 Website

Application

Cycle storage.

Description

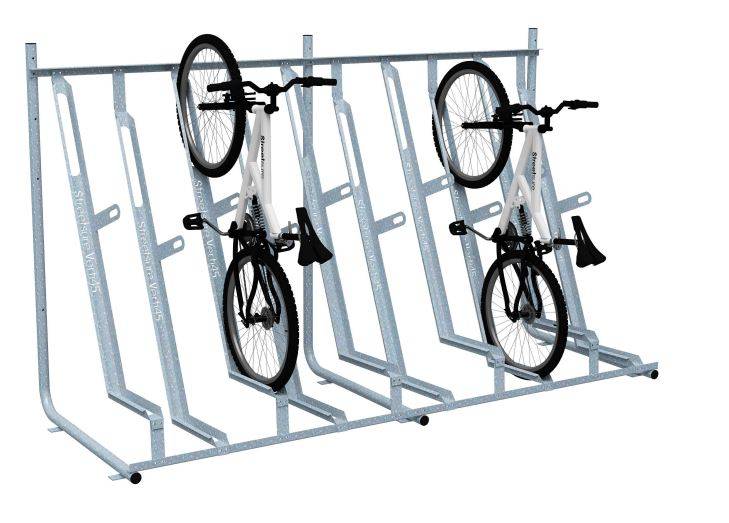

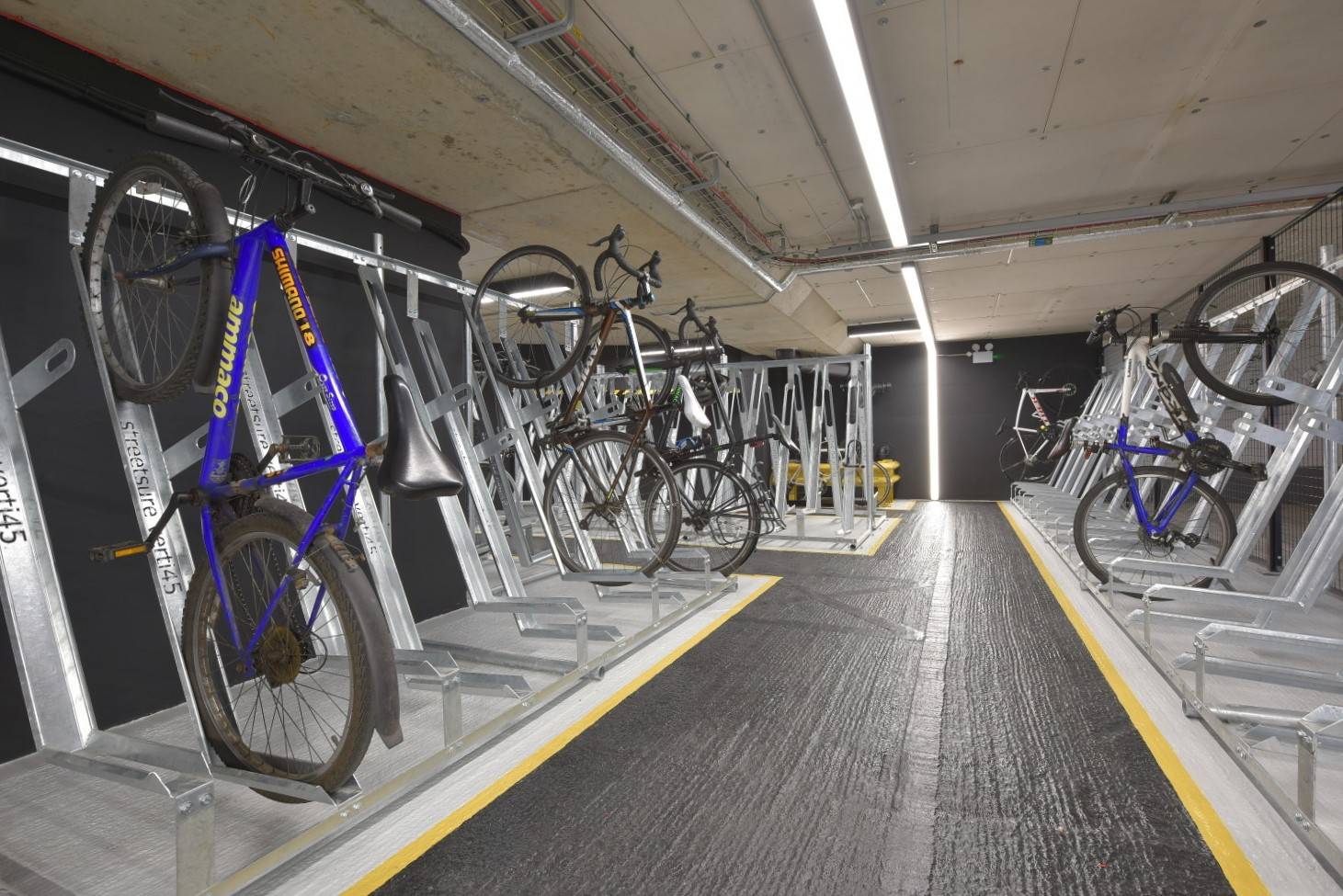

The Verti45 stores the bikes at an angle, making it easy for people to park and remove their bike from the frame.

Storing the bikes at an angle makes more efficient use of floor space, and has a smaller overall footprint than conventional horizontal racks.

  • Height x Depth 1790 x 1100 mm.
  • Width dependent on bike capacity.
  • No moving parts.
  • Minimal maintenance.
  • Available in galvanized steel or powder coated.
  • Unique range of colour options to match any company colours or project colour scheme.
  • Bespoke laser cutting of logos or text for any company/building name.
  • Range of bike capacities available on request.
  • The product will assist with achieving BREEAM rating.


General information

Color

-

Manufacturer guidance

Any standard RAL colour.

Finish

Galvanized

Powder-coated

Material

Carbon steel

Length

1100 mm

Guidance for specification option:

Depth.

Width

Bespoke

Height

1790 mm

Guidance for specification option:

Minimum height: 1850, recommended: 1900.

Warranty description

Two year

Uniclass

Pr_40_30_21_12 Carbon steel cycle standsPrimary

CAWS

Q50/32 Cycle stands

Q50/210 Cycle stands

Specification data - Carbon steel cycle stands

Stand type

Cycle.

Number of stands

-

Manufacturer guidance

Bespoke.

Base

Flat.

Finish as delivered

Galvanized to BS EN ISO 1461.

Galvanized and Powder coated.

Guidance for specification option:

Powder coated Legs. Plasticoated Frames (to Standard RAL Colours.

Colours

-

Manufacturer guidance

Any standard RAL colour. Insert requirements.

Accessories

Location identifiers.

Signage.

Laser cut wording within bike channel.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

Alcumus SafeContractor

Alcumus SafeContractor

Alcumus SafeContractor Accreditation

CHAS

CHAS

CHAS Certificate of Accreditation

CQMS

CQMS

CQMS Mutual Recognition Certificate

Constructionline Gold

Constructionline Gold

Constructionline Gold Certificate

FSC

FSC

FSC Chain of Custody Certification

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISOQAR Certificate of Registration ISO 14001 : 2015

ISO 9001 Quality Management

ISO 9001 Quality Management

ISOQAR Certificate of Registration ISO 9001 : 2015

The Railway Industry Supplier Qualification Scheme

The Railway Industry Supplier Qualification Scheme

RISQS Certificate of Verification

smas WORKSAFE

smas WORKSAFE

SMAS Worksafe Accreditation
