VersiRail® Freestanding

Description

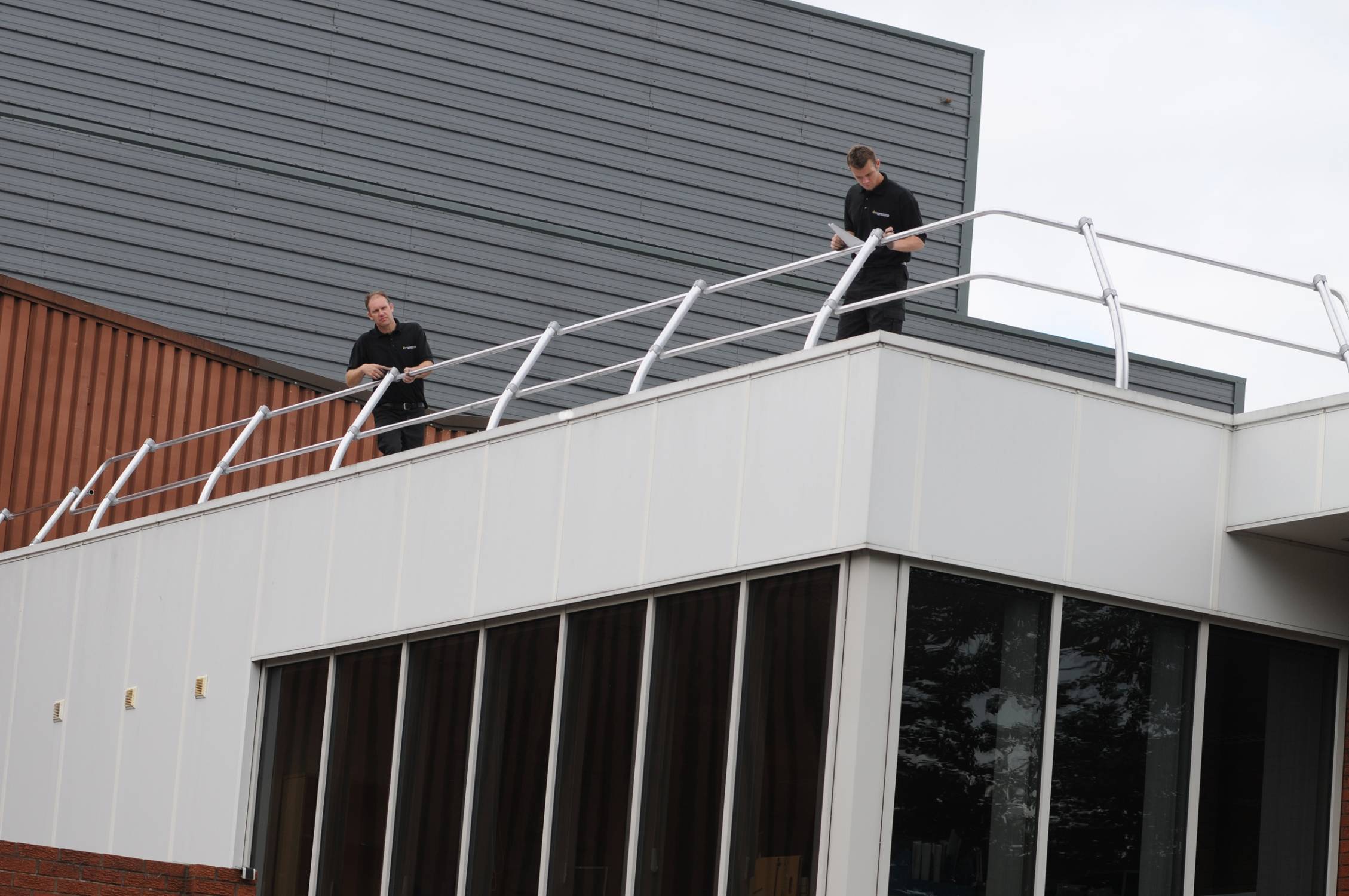

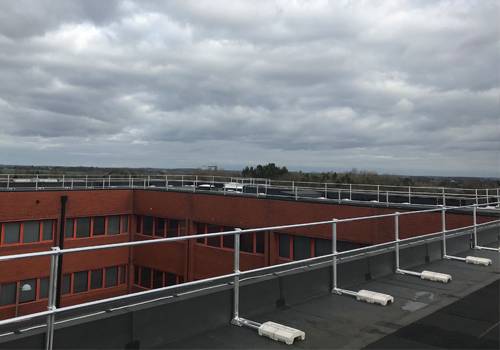

Freestanding safety guardrail system for use on new and existing buildings with working platforms, roofs or technical terraces having slopes between 0°and 4° and no public access. Folding option available; contact Latchways.

Comprising straight, curved or inclined aluminium uprights, with hand and kneerails, all connected via EZ-FIX clamping system to allow fast assembly and accurate level adjustment. No requirement for drilling, the system is mounted directly on the platform.

Complies with requirements of EN 13374 and EN ISO 14122-3, section 8.2, and conforms to European Directive 2001/45/CE.

General information

Uniclass 2015

Pr_25_30_36_03 Aluminium handrailsPrimary

CAWS

L30/55 Proprietary balustrades

L30/560 Proprietary balustrades

L35/170 Guarding system

Specification data - Aluminium handrails

Product Reference

VersiRail® Freestanding

Uprights

-

Standard

222000-00

Curved, 1150 mm high (measured vertically).

222000-00POL

Curved, 1150 mm high (measured vertically), polished.

222000-00RAL

Curved, 1150 mm high (measured vertically), powder coated.

22100-00

Inclined, 1150 mm high (measured vertically).

22100-00POL

Inclined, 1150 mm high (measured vertically), polished.

22100-00RAL

Inclined, 1150 mm high (measured vertically), powder coated.

22000-00

Straight, vertical, 1150 mm high.

22000-00POL

Straight, vertical, 1150 mm high, polished.

22000-00RAL

Straight, vertical, 1150 mm high, powder coated.

As drawing ___

Folding

22001-00

Folding, straight, vertical, 1150 mm high.

22001-00POL

Folding, straight, vertical, 1150 mm high, polished.

22001-00RAL

Folding, straight, vertical, 1150 mm high, powder coated.

As drawing ___

Centres

2000 mm

Maximum.

As drawing ___

Protection sole

Not applicable

22039-00

Protective isolating sole for membrane (non-PVC) coverings.

22088-00

Protective isolating sole for PVC coverings.

Handrails and kneerails

-

Type

22013-00

3 m lengths.

22013-00POL

3 m lengths, polished.

22013-00RAL

3 m lengths, powder coated.

22016-00

6 m lengths. NB kickboards are 3 m long.

22016-00POL

6 m lengths, polished. NB kickboards are 3 m long.

As drawing ___

Kneerail centres, vertical

500 mm

Maximum.

As drawing ___

Connecting elements

22060-00

Junction part.

22068-00

Junction part, foldable system.

22065-00

T junction.

22065-00POL

T junction, polished.

22065-00RAL

T junction, powder coated.

As drawing ___

Corner sections

Not required

22062-00

45°-45° corner section.

22062-00POL

45°-45° corner section, polished.

22062-00RAL

45°-45° corner section, powder coated.

22061-00

90° corner section.

22061-00POL

90° corner section, polished.

22061-00RAL

90° corner section, powder coated.

22066-00 ___°

Stipulate angle required, between 45° and 175°.

22066-00POL ___°

Stipulate angle required, between 45° and 175°. Polished.

22066-00RAL ___°

Stipulate angle required, between 45° and 175°. Powder coated.

As drawing ___

End parts

Not required

22064-00

Closure bend.

22064-00POL

Closure bend, polished.

22064-00RAL

Closure bend, powder coated.

22063-00

Wall end part/ termination flange.

22063-00POL

Wall end part/ termination flange, polished.

22063-00RAL

Wall end part/ termination flange, powder coated.

As drawing ___

Access gates

Not required

22019-00

Only compatible with straight, vertical uprights.

22019-00POL

Only compatible with straight, vertical uprights. Polished.

22019-00RAL

Only compatible with straight, vertical uprights. Powder coated.

As drawing ___

Kickboards

Not required

22090-00

150 mm high, 3 m long, aluminium.

22090-00POL

150 mm high, 3 m long, aluminium, polished.

22090-00RAL

150 mm high, 3 m long, aluminium, powder coated.

As drawing ___

RAL colour

Not applicable

As drawing ___

Other requirements

1 no. counterweight ref 22030-00 per access gate upright

2 no. counterweights ref 22030-00 and 22031-00 per closure bend upright

As drawing ___

Standard product features

Handrails:

40 mm diameter aluminium.

- Connecting elements:

  • Junction part; connects lengths linearly.
  • T junction; connects handrail elements to form right angled connections.

Product Options

Uprights:

- Profiles:

  • Curved; 1150 mm high.
  • Inclined; 1150 mm high.
  • Straight; 1150 mm high. Recommended for folding guardrail applications.

- Maximum centres:

Between uprights: 2 m.

Handrails:

- Lengths:

3 m or 6 m. Powder coating only available to 3 m lengths.

- Corner sections:

  • 45° -45° corner section; for use where upright must be positioned directly in corner (at 45°).
  • 90° corner section; for use where right angles are required in handrails.
  • Corner sections between 45° and 175° can be fabricated to order by stipulating angle. required.

- End parts:

  • Closure bend; for use where handrail terminates but cannot be attached to building. Connects handrail to kneerail. Can also form designated opening in rail. Requires installation of an upright with two counterweights (22030-00 for single counterweight; 22031-00 for additional counterweight).
  • Wall end piece; for termination at supporting wall, parapet or other structure. Fixing is by 4no. M5 diameter screws.

- Access gates:

  • Only compatible with straight vertical uprights. Can be installed anywhere along the guardrail.
  • Width can vary 340–1170 mm.
  • Held closed by spring-loaded mechanism.
  • Additional counterweights (22030-00) required either side of gate.

- Maximum centres:

Between hand and kneerail and parapet/ kickboard: 500 mm.

Kickboards:

  • Required where there is no parapet or where height of parapet is less than 100 mm.
  • Supplied with attaching kit.

Finishes:

Denoted by reference suffix.

  • Untreated: '–'.
  • Polished: -'POL'.
  • Powder coat to RAL colour -'RAL'. Give RAL colour reference as separate item.
