Vepps Healthcare | Vepps Hygen, IPS

Verified by manufacturer 11 days ago

Venesta Washroom Systems Ltd

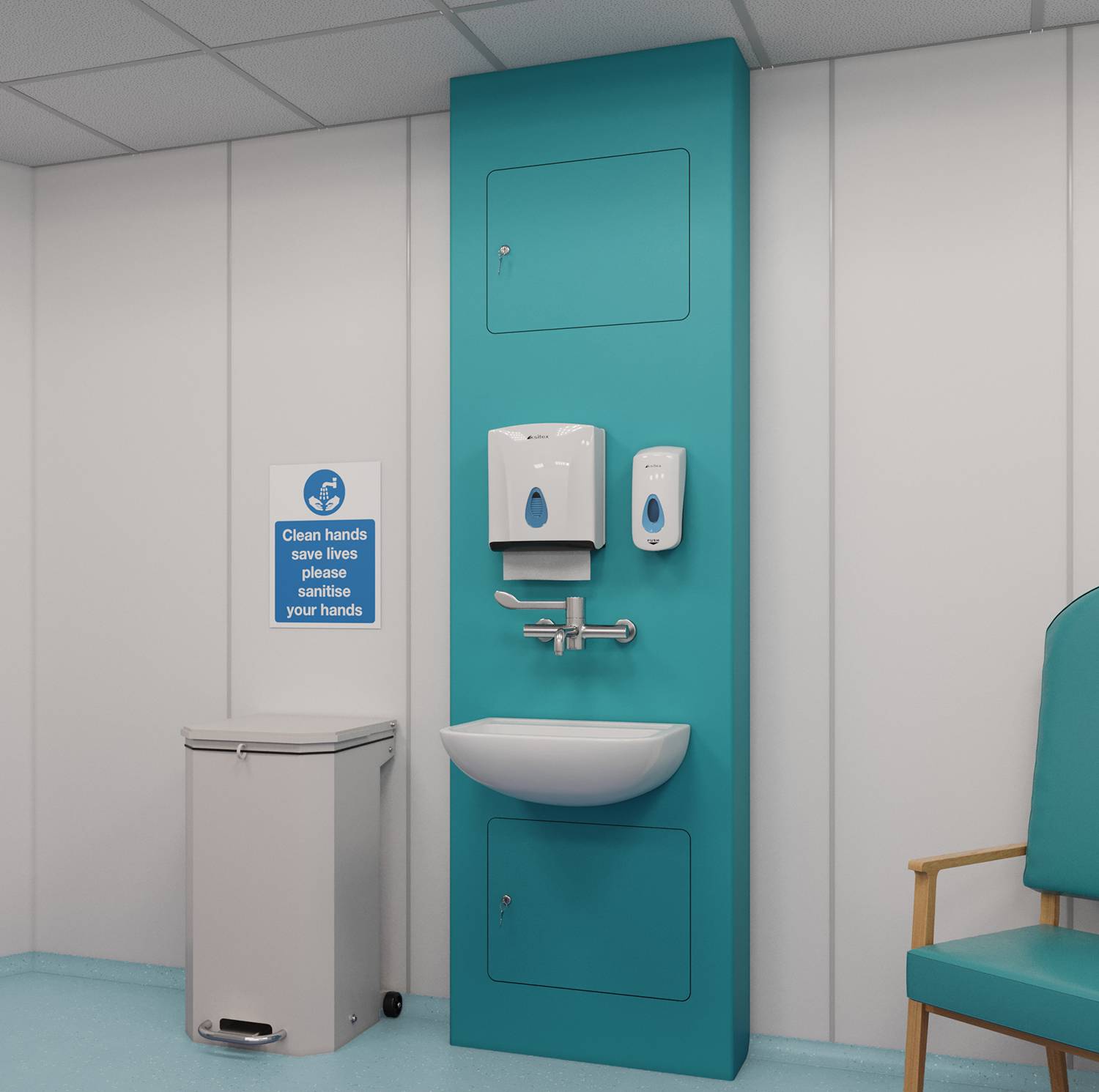

A standalone pre-plumbed basin assembly, formed from a single piece of solid grade laminate, specifically for healthcare settings.

Jump to:
+44 (0)1474 353333 Website

Application

Healthcare applications.

Description

A standalone pre-plumbed basin assembly, formed from a single piece of solid grade laminate, specifically for healthcare settings.


A simple, easy-click wall system with concealed aluminium wall fixing channels, galvanized steel tie back rods and zinc plated steel joggle brackets for a quick yet sturdy, long-lasting installation.


All sanitaryware is pre-plumbed and vigorously tested before being delivered.


Features and benefits:

  • Ingenious, easy install click-fix mechanism.
  • Over 120 variants to choose from.
  • Ultra strong aluminium frame.
  • Maintains integrity of rear fire walls and acoustic rated walls.
  • Fully compliant, tested and proven solution.
  • Optional plinth to allow vinyl flooring to be received.
  • Choice of 34 laminate finishes.

General information

Color

Black

Blue

Cream

Green

Grey

Show more

Finish

Laminated

Material

Solid grade laminate (SGL)

Steel

Zinc

MFC

Length

13 mm

Warranty description

Ten year

Uniclass

Pr_40_20_93_62 Pre-plumbed installation framesPrimary

CAWS

K32/15 Duct/ wall lining panels

K32/150 Duct/ wall linings – panels and proprietary frames

K32/160 Duct linings – preplumbed panels and proprietary frames

Product range

Panelling & Pre-plumbed Systems
Healthcare

Specification data - Pre-plumbed installation frames

Materials

Solid grade laminate, zinc plated steel.

Box framing

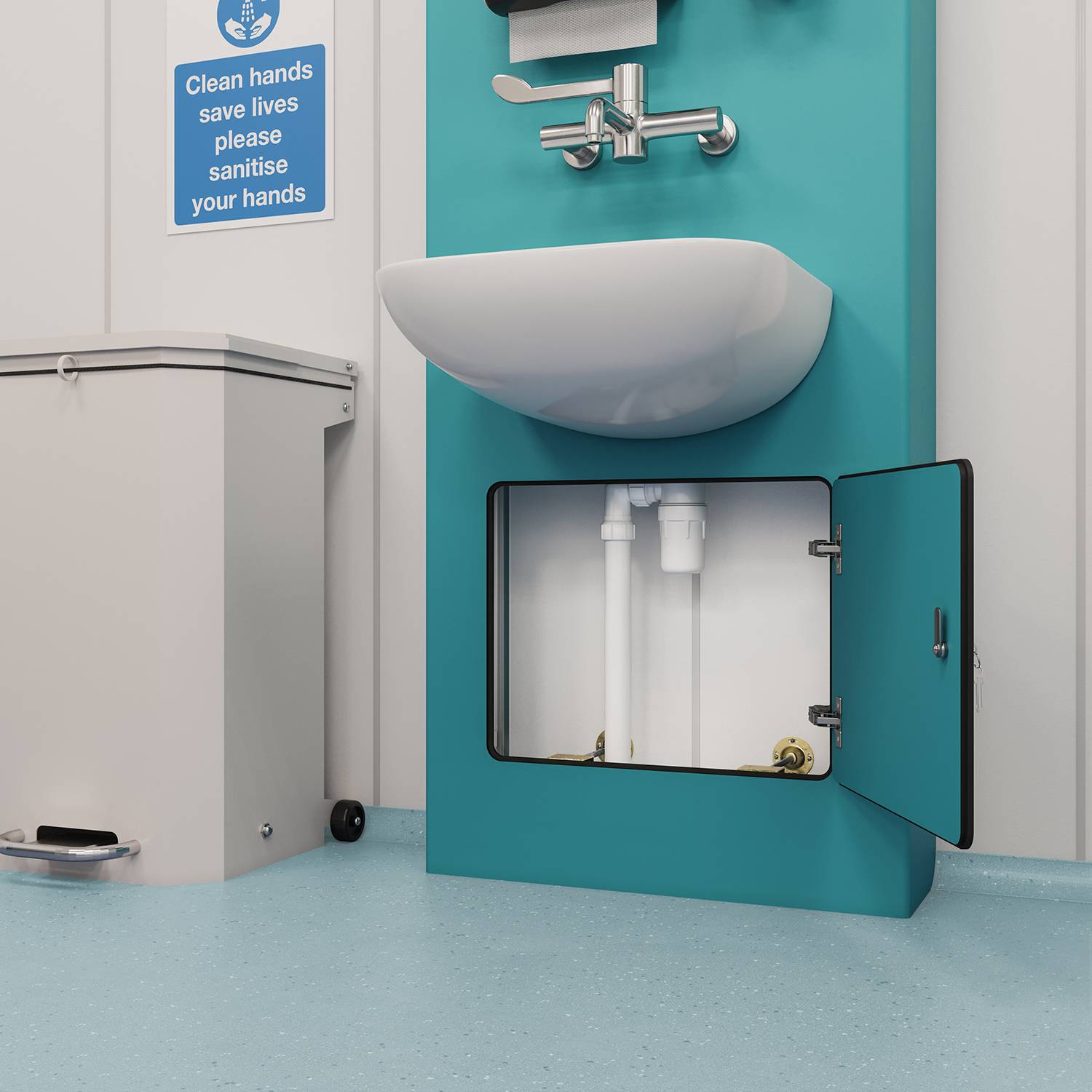

Joint free 13 mm compact laminate with postformed corners with two hinged recessed access panels, complete with locks and seal.

Panel

High density solid grade laminate with decorative surface, both sides (SGL).

Thickness

13 mm nominal.

Hinge

160 degree overlay hinge secured to bespoke Zinc plated steel bracket.

Seal

3 mm Self Adhesive C211 FR flame retardant neoprene sponge seal.

Lock

Budget lock with master key.

Unit

Box unit secured using Venesta tie-back system incorporating M8 zinc plated tie-back rods and supporting bracketry in zinc plated steel.

Guidance for specification option:

  • Height: Up to Maximum Box Height  2740 m to suit either a solid or suspended ceiling.
  • Width: Available either 700 mm or 750 mm wide.
  • Depth: Available in 150 mm and 225 mm depth as standard.

Preplumbing

Pre-fixed and sealed to HBN box out unit, unless stated otherwise, all factory assembled.

Colour/ Finish

Rouge (VEN324 | LRV 17).

Papaya (VEN370 | LRV 35).

Golden (VEN366 | LRV 52).

Canary (VEN365 | LRV 65).

Lime (VEN354 | LRV 54).

Show more

Height

Guidance for specification option:

Maximum box height 2740 m to suit either a solid or suspended ceiling, consult manufacturer and insert requirements.

Width

700 mm.

750 mm.

Depth

150 mm.

225 mm.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Solid grade laminate (SGL)

Steel

Zinc

MFC
