SGL Hospital boxed out unit

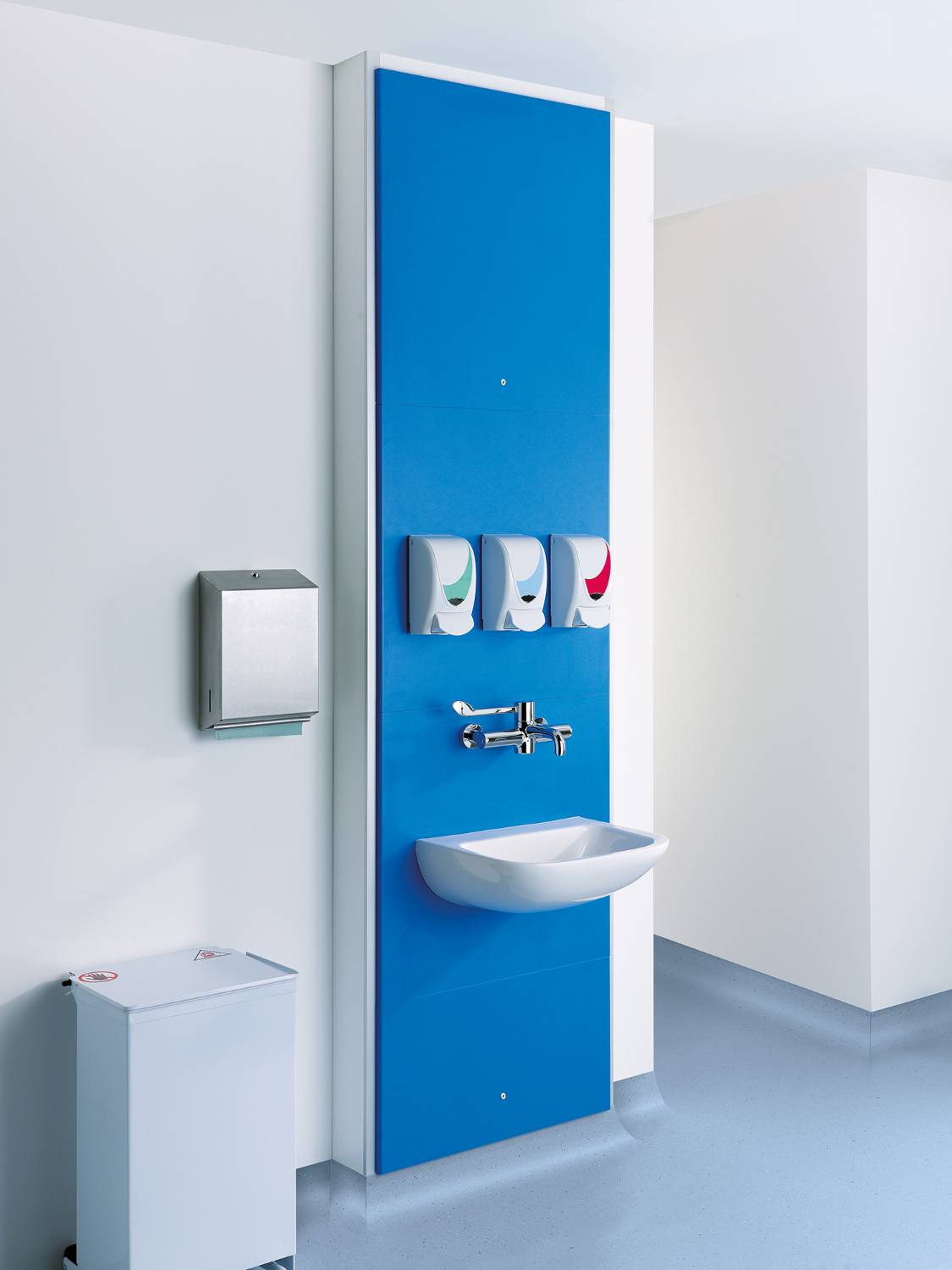

Pre-plumbed hospital Vepps boxed-out unit.
Hospital applications.
Part of the Vepps Healthcare range, Vepps Boxed-Out Unit is a pre-plumbed, factory-assembled and tested paneling system specifically for hospitals.
Available with variable box depths, widths and heights to accommodate service requirements.
Features and benefits:
Hinged access panel using riveted linear-bearing hinges in zinc plated steel and nylon with riveted panel ratchets in zinc plated steel allowing 10 different opening heights.
Subframe tie-back system using M8 zinc plated steel tie-back rods and supporting bracketry in zinc plated steel.
Riveted slider brackets in nylon to allow the top panel to rise and fall where a mid-mounted panel is hinged.
Integrated factory fitted WC carrier in 26 mm SGL for use with wall hung WC’s.
Micro panel lock in polished stainless steel to provide a tamper proof security fixing to the duct panels.
Riveted push-pull clips where applicable to allow bottom panels to be removed.
Color | Black Blue Cream Green Grey |
Finish | Laminated Veneered |
Material | Solid grade laminate (SGL) Steel Zinc Aluminium High pressure laminate (HPL) |
Length | 13 mm 18 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | K32/15 Duct/ wall lining panels K32/150 Duct/ wall linings – panels and proprietary frames K32/160 Duct linings – preplumbed panels and proprietary frames |
Product range |
Materials | Solid grade laminate, zinc plated steel, aluminium, nylon. |
Panel | High density solid grade laminate with decorative surface, both sides (SGL). Guidance for specification option: Panel sections fitted to subframe with zinc plated steel clips with butt joints fitted with zinc plated steel dowel clips and mating nylon dowel-docks. |
Thickness | 13 mm nominal. |
Box framing | Front, sides, skirting and head panels 13 mm compact laminate recessed flush fitting into SAA aluminium frame. |
Edge treatment | Black, radiused and polished. |
Preplumbing | Pre-fixed and sealed to VEPPS unit, unless stated otherwise, all factory assembled. |
Colour/ Finish | Rouge (VEN324 | LRV 17). Papaya (VEN370 | LRV 35). Golden (VEN366 | LRV 52). Canary (VEN365 | LRV 65). Lime (VEN354 | LRV 54). |
Locks | Without locks. |
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Solid grade laminate (SGL) Steel Zinc Aluminium High pressure laminate (HPL) |
