Venty Three Hole Basin Mixer - Basin Mixer Tap
Verified by manufacturer 2 months ago

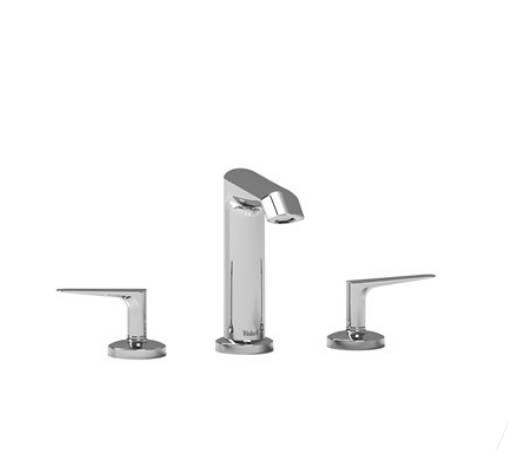

Three hole basin mixer.
Application
For washbasins.
Description
Three hole basin mixer.
Features and benefits:
- Includes rough and trim.
- Quarter turn ceramic disk cartridges.
- Waste kit sold separately.
- Designed to accommodate a three-hole installation from 200–400 mm.
- Quick Connect system simplifies installation.
- Limited lifetime warranty.
- Solid brass construction for durability and long-lasting performance.
General information
Color | Silver |
Finish | Chrome |
Material | Brass |
Length | 169 mm |
Height | 156 mm |
Warranty description | Lifetime |
Uniclass | |
CAWS | N13/335 Washbasins N13/30 Washbasins |
Specification data - Mixer taps
Form | Mixer taps. |
Materials | |
Body | Brass. |
Finish and colour | Chrome-plated. |
Flow rate (maximum) | 8.3 L/ min at 4 bar.Guidance for specification option: 60psi. |
Integral accessories | Waste kit (DB160-EM).Guidance for specification option: Sold separately, contact manufacturer for details. |
Spout projection | 169 mm. |
Spout height | 135 mm. |
Supply pressure | 2–5 bar. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

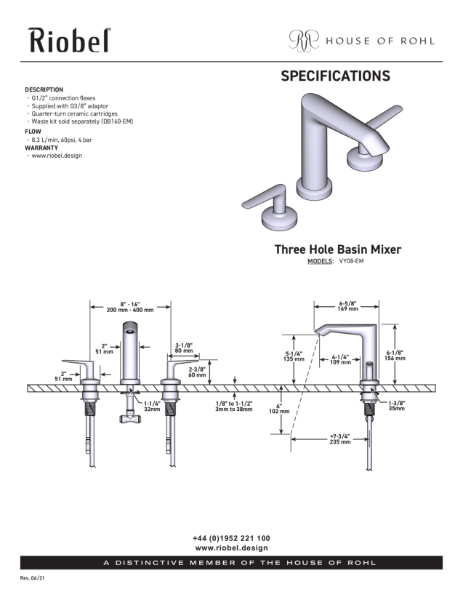

Venty 3 Hole Basin Mixer - PDS

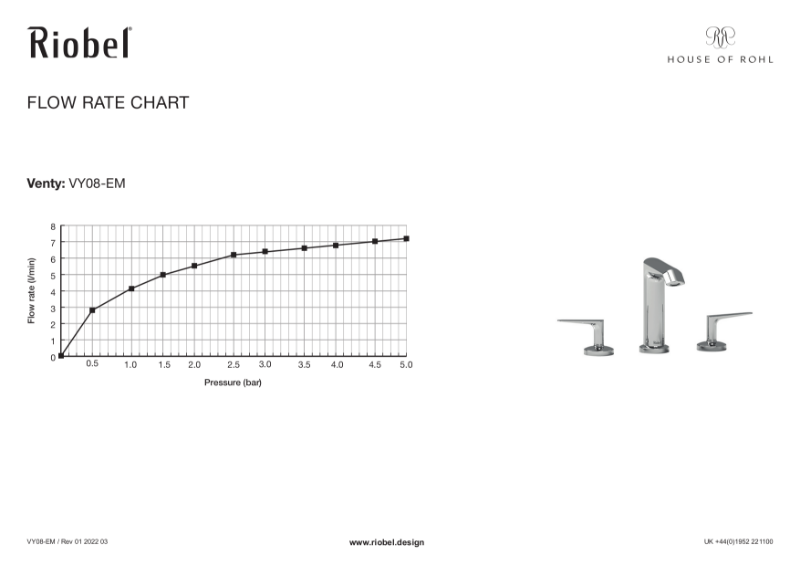

Venty 3 Hole Basin Mixer Flow Rate
