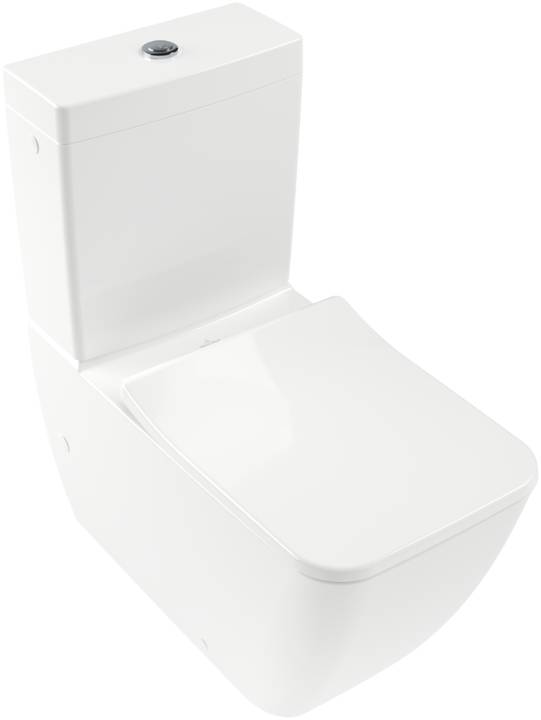

Venticello Washdown WC for Close-coupled WC-suite, Horizontal Outlet 4612R0
Verified by manufacturer 8 months ago
Rimless, washdown toilet for close-coupled WC-suite.
Application
Suitable for close-coupled WC-suite.
Description
Rimless, washdown toilet for close-coupled WC-suite.
Features and benefits:
- Direct flush.
- Sanitary ceramics.
- Recommendation: to be installed from the wall at: 15 mm.
- Complies with EN 997.
- LEED 4.
- European water label 3,375 L.
- With water-saving AQUAREDUCT® system: flush volume 3/ 4.5 litres.
- Horizontal outlet.
- Vertical outlet possible with Vario drainbend.
- Please order toilet seat separately.
- Please order cistern separately.
- Please order Vario drainbend separately.
General information
Color | White |
Material | Ceramic Guidance for specification option: Sanitary ceramics |
Shape | Rectangle |
Width | 375 mm |
Uniclass | |
CAWS | N13/10 WC pans and flushing arrangements N13/300 WCs and cisterns |
Specification data - WC suites
Standards | |
Cisterns | To BS EN 997. |
Pans | To BS EN 997. |
Form | Floor-standing, back to wall. |
Materials | |
Body | Ceramic.Guidance for specification option: Sanitary ceramics. |
Finish and colour | White. |
Sizes | |
Cistern capacity | 3/4.5 L dual flush. |
Pan height | 400 mm. |
Integral accessories | Toilet seat and cover (8M22S1).Toilet seat and cover SlimSeat (Wrapover) (9M79S1).Toilet seat and cover SlimSeat LINE (Sandwich) (9M80S1).Cistern (570711). |
Weight | 40 kg. |
Outlet | Horizontal. |
Width | 375 mm. |
Depth | 700 mm. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 OBJ | - | 1 |
 Revit | - | 1 |
 SketchUp | - | 1 |
 3Ds Max | - | 1 |
 ARCHICAD | - | 1 |
 IFC | - | 1 |
