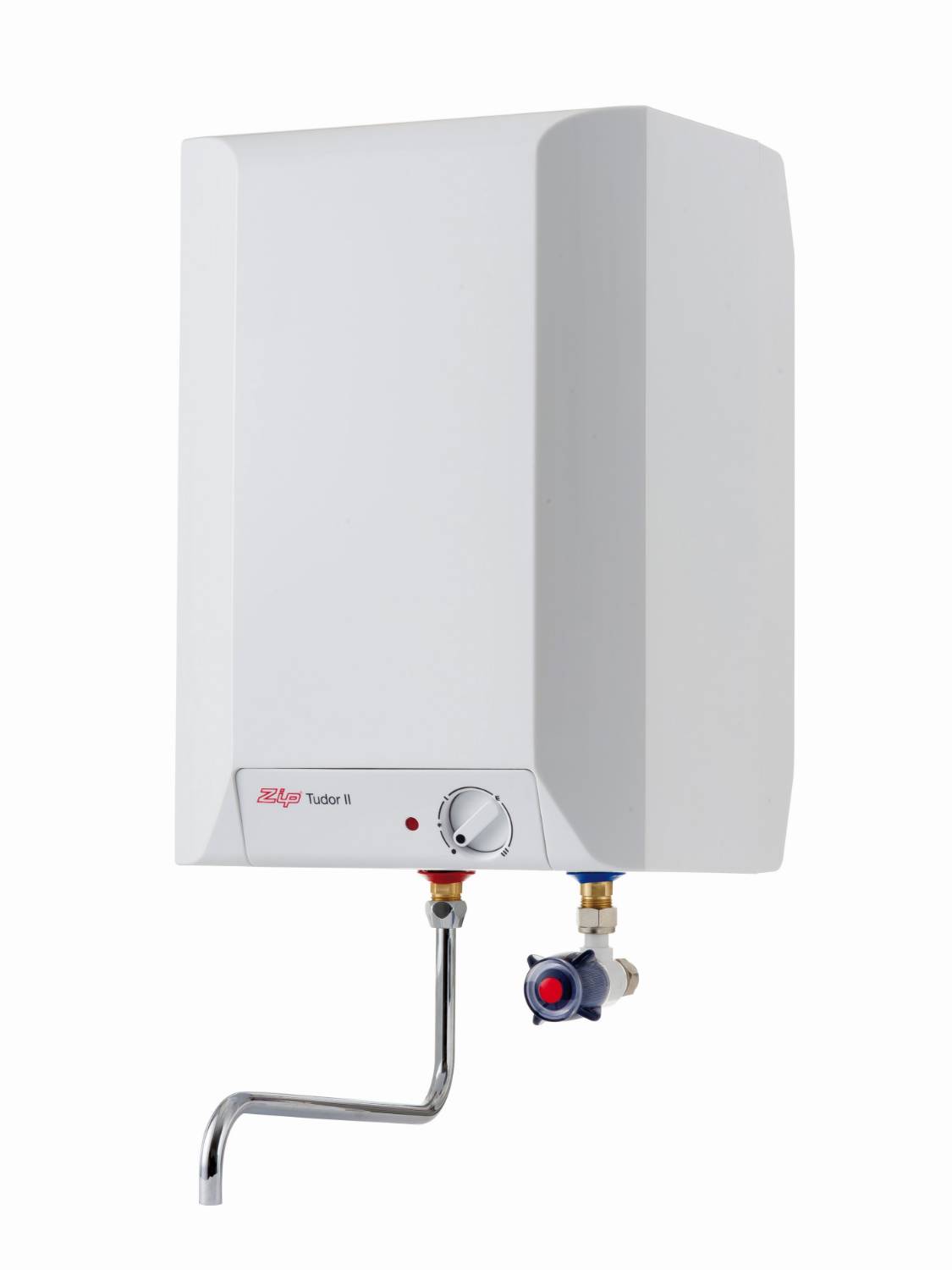

Vented Water Heaters - Water Dispenser
Verified by manufacturer 2 months ago
T4OB5
T4OB5
KIWA BDA
Certificate type
Vented water heaters for a single point of use.
Application
Point of use water heater for use with one basin. Suitable for use in portable buildings.
Description
Vented water heaters for a single point of use.
Features and benefits:
- Options for over-sink and under-sink models.
- Externally adjustable temperature control with frost protection.
- 5–10 L capacity.
- CFC-free polystyrene insulation.
- ErP rating: Class A.
- IP24 rated.
- Supplied with one metre of pre-wired cable.
- Neon element ‘ON’ indicator light.
- Thermostat adjustable from 9°C to 75°C.
- Manually resettable over-temperature safety cut-out.
General information
Color | White |
Finish | Semi-gloss |
Material | Polypropylene Guidance for specification option: Polypropylene water tank with high impact resistant plastic casing. |
Shape | Rectangle |
Warranty description | One year |
Uniclass | |
CAWS | S90/400 Storage water heaters, electric S90/400 Storage water heaters, electric |
Product range |
Specification data - Electric storage water heaters
Third party certification | WRAS-approved. |
Arrangement | Vented water heater for single point of use. |
Capacity | T4OB5 - 5 L.Guidance for specification option: Zip Tudor 4 Oversink. |
Rating | 2 kW at 230 V. |
Casing finish | High impact resistant plastic casing. |
Controls | Capillary type thermostat, adjustable from 9°C to 75°C. |
Accessories | Guidance for specification option: Consult manufacturer and insert requirements. |
Mounting | Over-sink. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Serbia |
Country of product manufacture | Australia |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
KIWA BDA
KIWA REG4 Certificate 2023
Literature
HydroCare Commercial Flyer 2024
Zip Commercial Product Guide - Water Heaters
Zip Water Commercial Price List 2024
