VELFAC Ribo Wood/Aluminium Entrance Doors
Verified by manufacturer 3 months ago
QA Certificate
Certificate type
BM Trada
Certificate type
Secured By Design
Certificate type
EPD
Certificate type
Qualicoat approval
Certificate type

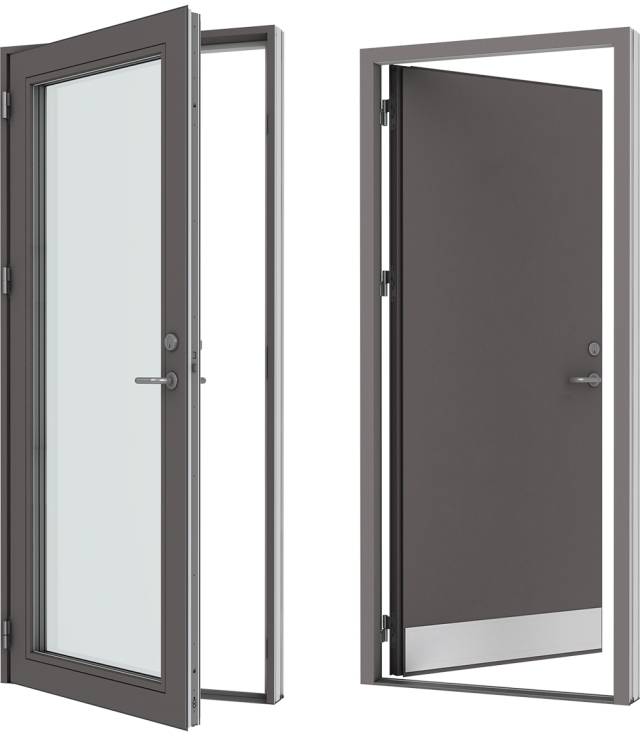

Glazed or flush entrance doors in wood/aluminium for light to medium use. For main entrance in domestic projects and secondary entrance doors in public buildings or office blocks.
Application
Suitable for use as main entrance doors in domestic projects and secondary entrance doors in public buildings or office blocks.

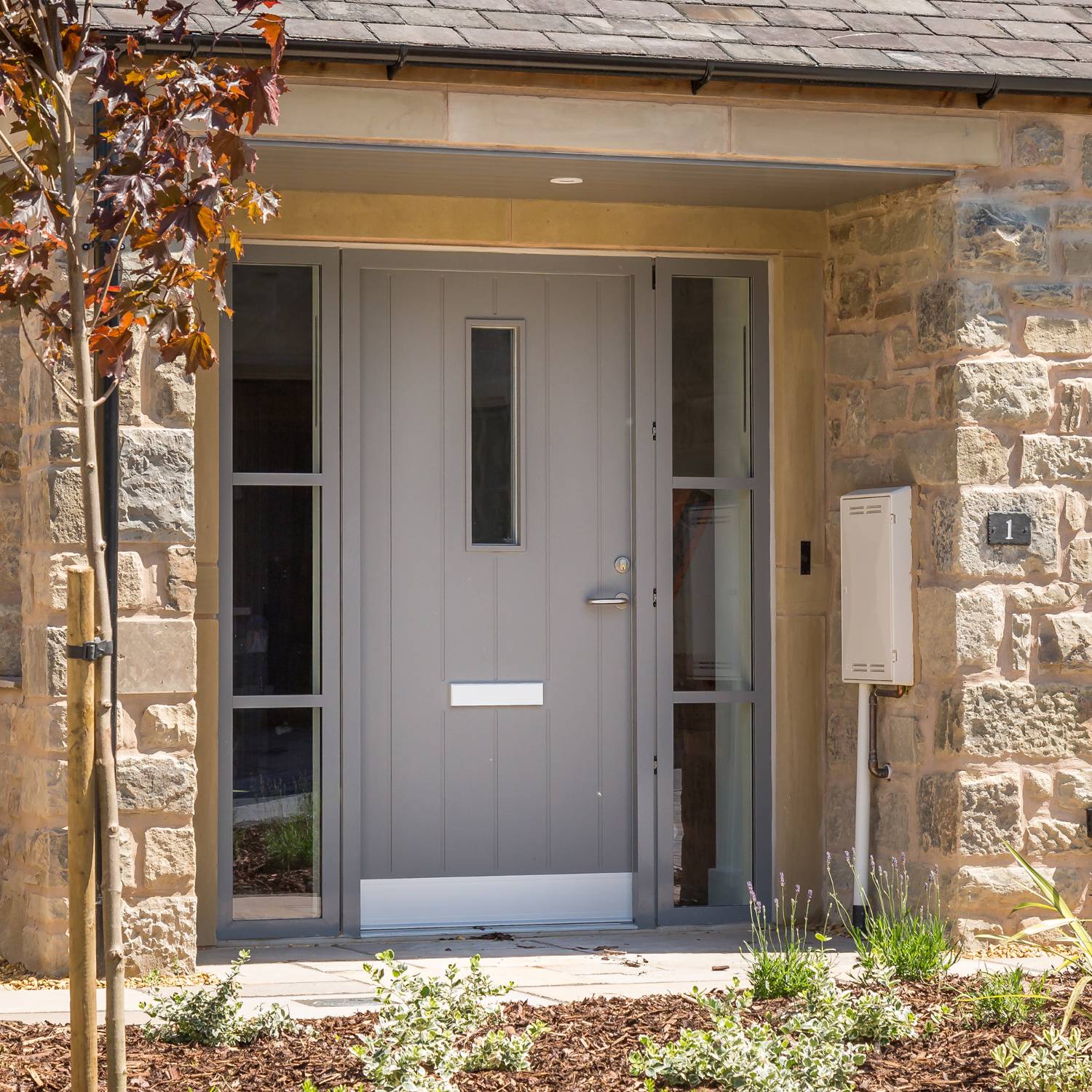

VELFAC Ribo wood/ aluminium doors can be coupled with VELFAC 200 windows to create glazed entrance screens.
Description
Composite wood/aluminium doors for light to medium use.
Features and benefits:
- Can be installed as either outward or inward opening.
- Available as single or double leaf, and double or triple glazed.
- Flush entrance doors are available in a number of external designs and can incorporate a range of glass apertures.
- Glazed entrance doors provide maximum daylight and can be divided by glazing bars with the resulting apertures glazed or panelled.
Vision glazing:
Doors delivered pre-glazed with 32 mm or 52 mm toughened/ laminated glass where required, allowing for 6.8 mm laminate where secured by design is required. Insulating glass units conform to:
- BS 952 Glass for glazing – Part 1: Classification.
- BS EN 572 Glass in building – Basic soda lime silicate glass products – Part 2: Float glass.
- BS EN 12150 Glass in building – Thermally toughened soda lime silicate safety glass – Part 1: definition and description.
- BS EN ISO 12543 Glass in building – Laminated safety glass.
- BS EN 12600 Specification for impact performance.
- BS EN 1279 Glass in building – Insulating glass units.
- BS 6262 Code of practice for glazing for buildings.
- BS 6206 Specification for impact performance requirements for flat safety glass and safety plastics for use in buildings.
- BS EN 6180 Barriers in and about buildings – Code of practice.
The VELFAC Ribo Door System is only available with an order for VELFAC 200.
General information
Color | Clear Beige Black Blue Brown |
Finish | Powder-coated Anodized Painted |
Material | Aluminium Wood Glass |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Five year |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets |
Product range |
Specification data - Composite doorsets
Standard | To EN 14351-1:2006 + A2:2016. |
Configuration | Guidance for specification option: All units are bespoke please contact manufacturer to discuss. |
Doorset size | Guidance for specification option: Contact manufacturer to discuss and insert requirements. |
Performance | |
Acoustic performance | Sound reduction to BS EN ISO 717-3. Flush doors: Rw 25–34. Glazed doors: Rw 34-38. |
Strength and durability | Guidance for specification option: Consult manufacturer. |
Thermal | Triple glazed doors: approx. 0.80 W/m²K. Flush doors: approx. 0.60 W/m²K. |
Intruder resistance | |
Minimum requirement | To PAS 24 and Secured by Design on request. |
Conformity | Certification by accredited third party certification body. |
Frame | |
Materials | Wood core with aluminium sleeve.Guidance for specification option: Aluminium extrusion alloy EN AW-6060 or EN AW-6063 externally & timber internal. |
Threshold | 18 mm.Guidance for specification option: Outward opening. 22.5 mm.Guidance for specification option: Inward opening. 45 mm.Guidance for specification option: Oak threshold (optional). |
Door leaf | |
Thickness | 80 mm. |
Panel details | Sandwich panel.Vision glazing.Manufacturer guidanceConsult manufacturer and insert requirements. |
Glazing | |
Type | In accordance with BS 6262-4 clear 52 mm triple and 32mm double glazing.Guidance for specification option: For systems comprising both triple and double glazed section. In accordance with BS 6262-4 clear 52 mm triple glazing.Guidance for specification option: For systems comprising triple glazing only. In accordance with BS 6262-4 clear 32 mm double glazing.Guidance for specification option: For systems comprising double glazing only. |
Finish | Powder coated to BS EN 6496.Guidance for specification option: In compliance with BS EN 6497, & DIN 50939 with applicators to be registered under the European Qualicoat and/or GSB quality assurance schemes. Anodized. |
Colour | |
External | RAL.Guidance for specification option: Polyester powder coated - RAL colours from the Classic K7 range, Granite, NBS range, consult manufacturer for options and insert requirements. Bronze.Guidance for specification option: Anodized. Silver.Guidance for specification option: Anodized. |
Internal | Water-based diffusion open timber surface treatment.Guidance for specification option: Three layer coating system, 1. Impregnation 2. priming 3. top coat.
|
Door accessories | Guidance for specification option: A wide range of accessories are available, consult manufacturer and insert requirements. |
Hardware | Lock-box with oval cylinder, three adjustable grey hinges, 180° hinges.Guidance for specification option: Lock-box with oval cylinder. The cylinder is placed above the handle. Three adjustable grey approx. 90° hinges. Optional 180° hinges. Alterative fitting - allows for up to 50 mm setback. |
Ironmongery | External and internal door handle. Espagnolette locking system with three closing points. Lock-box with oval cylinder. |
Glazing bars | 31 mm energy glazing bar. 68 mm and 113 mm glass separating glazing bar. |
UK exposure category | To BS 6375-1, 1600 Pa. |
Air permeability | To BS EN 1026, 600 Pa (positive and negative pressure). Guidance for specification option: To BS EN 12207, class 4. |
Watertightness | Tested to BS EN 1027. Inward opening, single leaf doors: 600 Pa. Outward opening single leaf and all double leaf doors: 300 Pa. Guidance for specification option: To BS EN 12208. Inward opening single leaf: class 9A. Outward opening single leaf and all double leaf: class 7A. |
Resistance to wind load | To BS EN 12211, 1600 Pa. Tested to 1600 Pa in accordance with BS EN 12211 (1600 Pa wind serviceability/ 2400 Pa wind safety). Guidance for specification option: To BS EN 12210, class 4A. |
Third-party certification | Q-Mark product certification, BM TRADA certified, Danish window verification and indoor climate label. |
Sustainability data
Country of material origin | Denmark Guidance for specification option: and other Nordic countries. |
Country of product manufacture | Poland |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | kg CO₂ eq/kg Guidance for specification option: Consult manufacturer. |
Recyclability | Guidance for specification option: Consult manufacturer. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | % Guidance for specification option: Consult manufacturer. |
