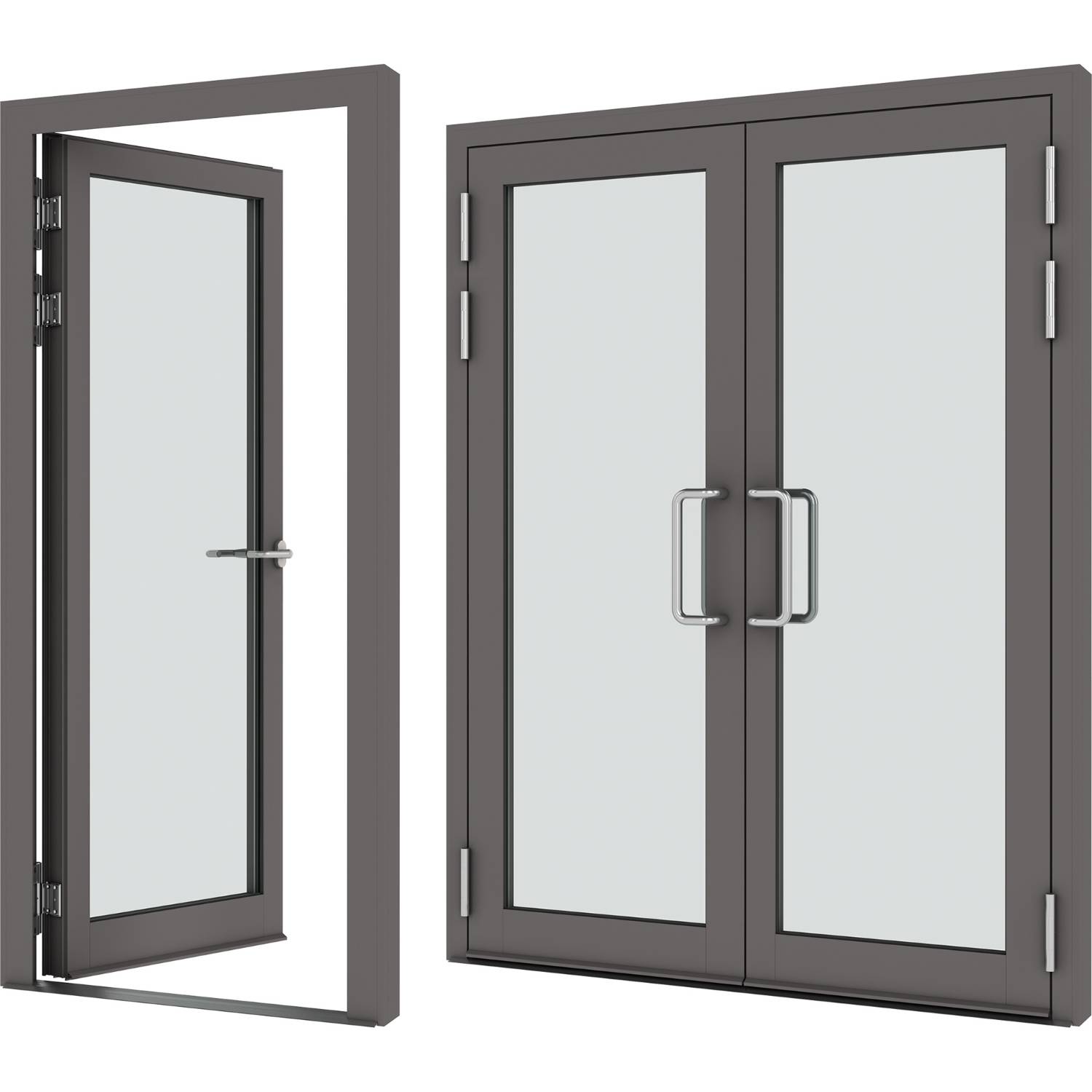

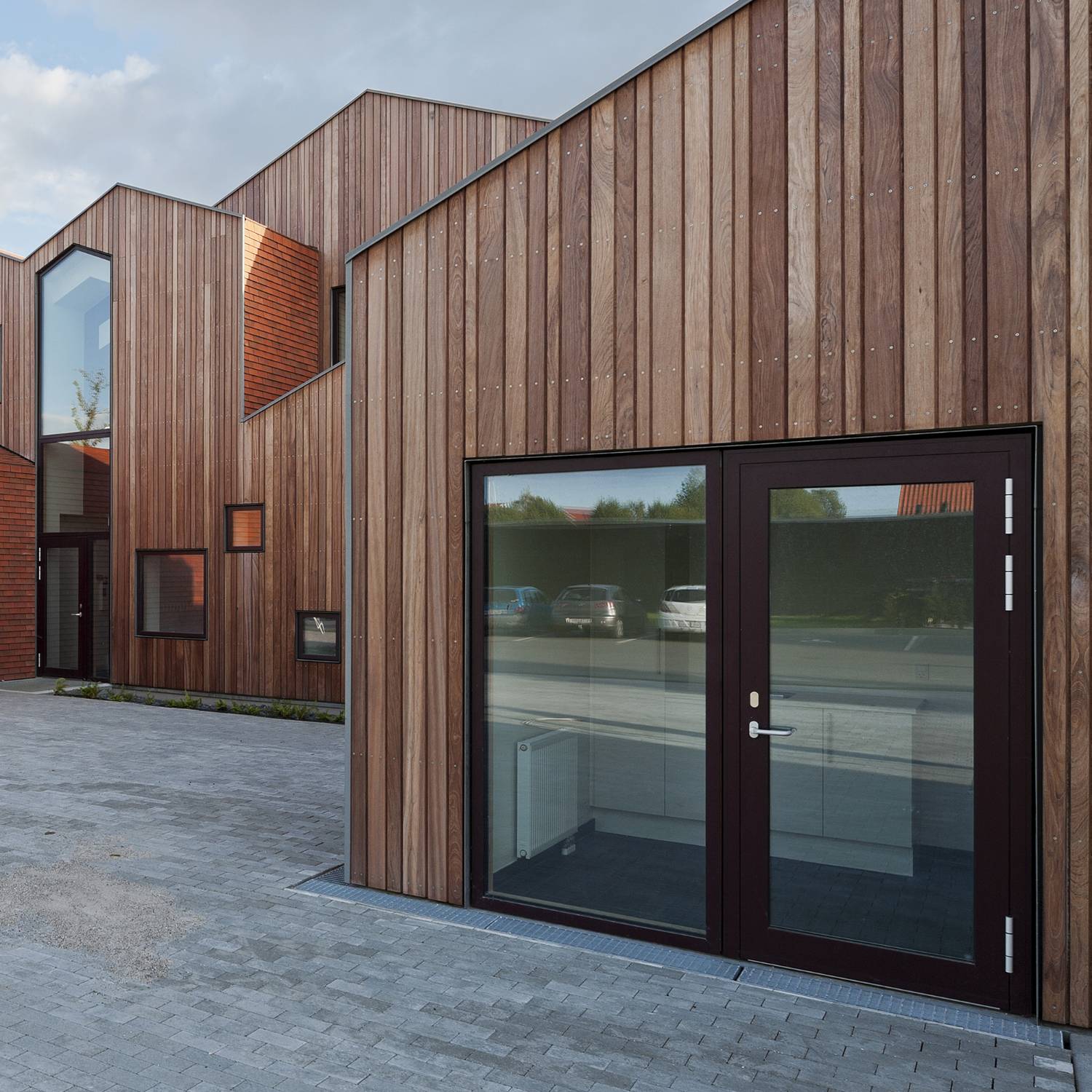

VELFAC Aluminium Door - Glazed Entrance Door for Heavy Use

Verified by manufacturer 2 months ago

Velfac Windows Third party certifications:
  • Secured By Design

    Secured By Design

    Certificate type

  • BM Trada

    BM Trada

    Certificate type

Glazed entrance door for heavy use. For main entrance, side entrance or restricted entrance to commercial, residential or public buildings.

Jump to:
+44 (0)1480 759 510 Website

Application

For commercial applications. Designed for installation where reliability, stability and strength of the door are vital such as, main entrance, side entrance or restricted entrance to commercial, residential or public buildings.


Can be coupled with VELFAC 200 window to glazed create entrance screens for receptions or atria.

Description

24 mm double- or 48 mm triple-glazed thermally broken rebated aluminium doors.


Features and benefits:

  • Manufactured from aluminium profiles and can be divided by one or more glazing bars with the resulting apertures glazed or panelled.
  • Can be installed as either outward or inward opening.
  • Available as single or double leaf.
  • Doors can incorporate a range of glass apertures.
  • 15 mm aluminium with thermal break threshold, compliant with Part M of the Building Regulations.
  • Five-year warranty.


Vision glazing:

Doors delivered pre-glazed with 24 mm/ 48 mm toughened/ laminated glass where required, allowing for 6.8 mm laminate where required. Insulating glass units conform to:

  • BS 952 Glass for glazing – Part 1: Classification.
  • BS EN 572 Glass in building – Basic soda lime silicate glass products – Part 2: Float glass.
  • BS EN 12150 Glass in building – Thermally toughened soda lime silicate safety glass – Part 1: definition and description.
  • BS EN ISO 12543 Glass in building – Laminated safety glass.
  • BS EN 12600 Specification for impact performance.
  • BS EN 1279 Glass in building – Insulating glass units.
  • BS 6262 Code of practice for glazing for buildings.
  • BS 6206 Specification for impact performance requirements for flat safety glass and safety plastics for use in buildings.
  • BS EN 6180 Barriers in and about buildings – Code of practice.


The VELFAC Aluminium door system is only available with an order for VELFAC 200.

General information

Color

Clear

Beige

Black

Blue

Brown

Show more

Manufacturer guidance

Consult manufacturer for anodized and RAL colour options.

Finish

Powder-coated

Anodized

Material

Aluminium

Glass

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Five year

Uniclass

Pr_30_59_24_02 Aluminium doorsetsPrimary
Ss_25_30_20_25 Doorset systems

CAWS

L20/55 Doorsets

L20/480 Doorsets

Product range

VELFAC Aluminium door

Specification data - Aluminium doorsets

Configuration

Single leaf, single action.

Double leaf, single action.

Doorset size

-

Manufacturer guidance

Contact manufacturer to discuss and insert requirements.

Performance

-

Thermal

0.93 W/m²K.

Guidance for specification option:

Door profiles incorporate a rigid polyetherimide isolator mechanically retained in position.

Intruder resistance

-

Minimum requirement

Secured by Design certification.

Application

Both sides.

Conformity

Certification by accredited third party certification body. Type testing not permitted.

Frame

-

Material

Aluminium.

Threshold

Part M compliant 15 mm aluminium with thermal break threshold.

Guidance for specification option:

Consult manufacturer for weather performance. External drainage must be considered when using low thresholds.

Finish

-

Coating

Powder coating to BS 6496.

Anodized.

Door leaf

-

Thickness

75 mm.

Core

Manufacturer's standard.

Panel details

Architectural louvre panel.

Guidance for specification option:

RAL colour, externally and internally, insert requirements.

Sandwich panel.

Guidance for specification option:

RAL colour, silver or bronze anodized, externally and internally, insert requirements.

Vision glazing.

Material

Aluminium.

Glazing

-

Type

Guidance for specification option:

Doors can incorporate a wide range of glass apertures including acoustic glazing, privacy glazing laminate and toughened all available where required. Please consult manufacturer for further details.

Finish

-

Coating

Powder coating to BS 6496.

Anodized.

External colour

RAL.

Guidance for specification option:

Polyester powder coated - RAL colours from the Classic K7 range, Granite, NBS range, consult manufacturer for options and insert requirements.

Bronze.

Guidance for specification option:

Anodized.

Silver.

Guidance for specification option:

Anodized.

Internal colour

As External.

Accessories

-

Manufacturer guidance

A wide range of accessories are available, consult manufacturer and insert requirements.

Execution

Installing hardware.

Opening

Inward.

Outward.

Type

Entrance door.

Guidance for specification option:

  • Single doors, width 726-1526mm x height 1682-2601 mm.
  • Double doors, width 1032-2532 mm x height 1682-2601 mm.

Escape door.

Guidance for specification option:

  • Single doors, width 1036–1526 mm x height 1682–2601 mm.
  • Double doors, width 1732–2532 mm x height 1682–2601 mm.

Main entrance door.

Guidance for specification option:

  • Single doors, width 726-1526mm x height 1682-2601 mm.
  • Double doors, width 1032-2532 mm x height 1682-2601 mm.

Remote access door with electric lock.

Guidance for specification option:

  • Single doors, width 726-1526mm x height 1682-2601 mm.
  • Double doors, width 1032-2532 mm x height 1682-2601 mm.

Remote access door with electric strike.

Guidance for specification option:

  • Single doors, width 726-1526 mm x height 1682-2601 mm.
  • Double doors, width 1032-2532 mm x height 1682-2601 mm.

Show more

Glazing bars

As drawing.

73 mm.

90 mm.

160 mm mid-rail.

Solar control

Required.

Guidance for specification option:

To prevent heat build-up.

Not required.

Third-party certification

BM TRADA certified.

Sustainability data

Country of material origin

Poland

Country of product manufacture

Poland

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

-

Manufacturer guidance

Consult manufacturer.

Recyclability

-

Manufacturer guidance

Consult manufacturer.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

Consult manufacturer.

BIM objects

Platform Compatible Version
Revit

Revit 2016

1

Third party certifications

Secured By Design

Secured By Design

Secured by Design certificate

BM Trada

BM Trada

Q-Mark Enhanced Security Door - Aluminium scheme

Literature

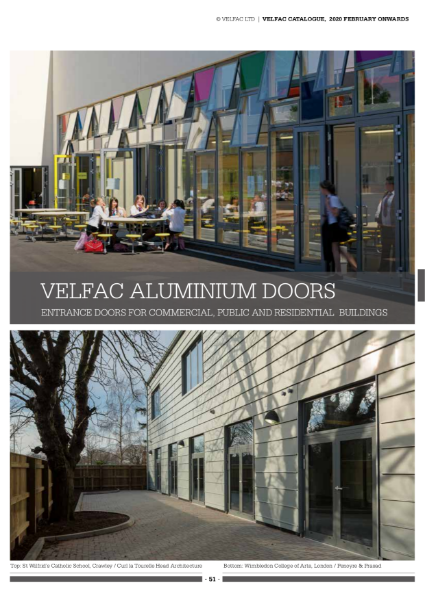

VELFAC Aluminium door Product catalogue

VELFAC Aluminium door Product catalogue

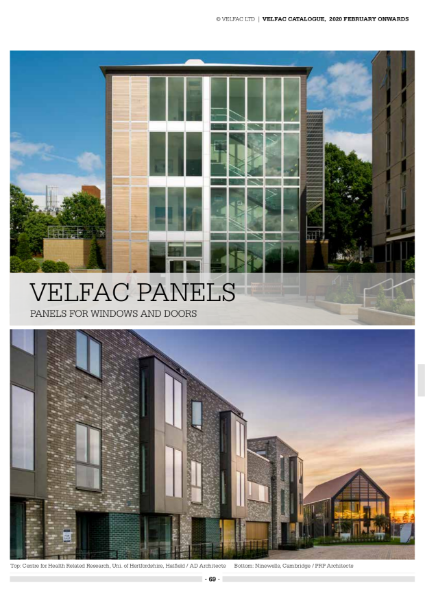

VELFAC Composite Panels Product catalogue

VELFAC Composite Panels Product catalogue

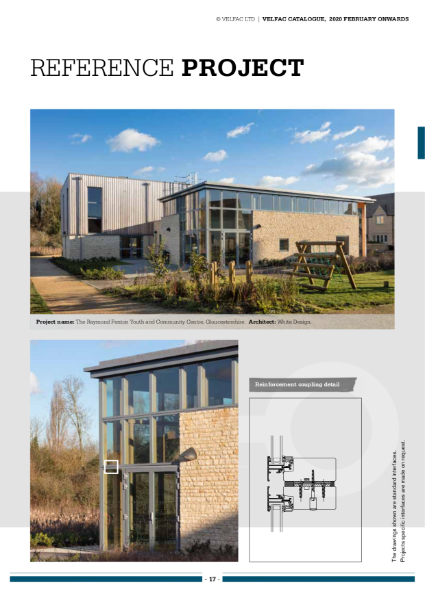

VELFAC Composite Window Reference projects

VELFAC Composite Window Reference projects

Education Brochure

Education Brochure

Case studies

The Raymond Fenton Youth and Community Centre, South Cerney, Gloucestershire

The Raymond Fenton Youth and Community Centre, South Cerney, Gloucestershire

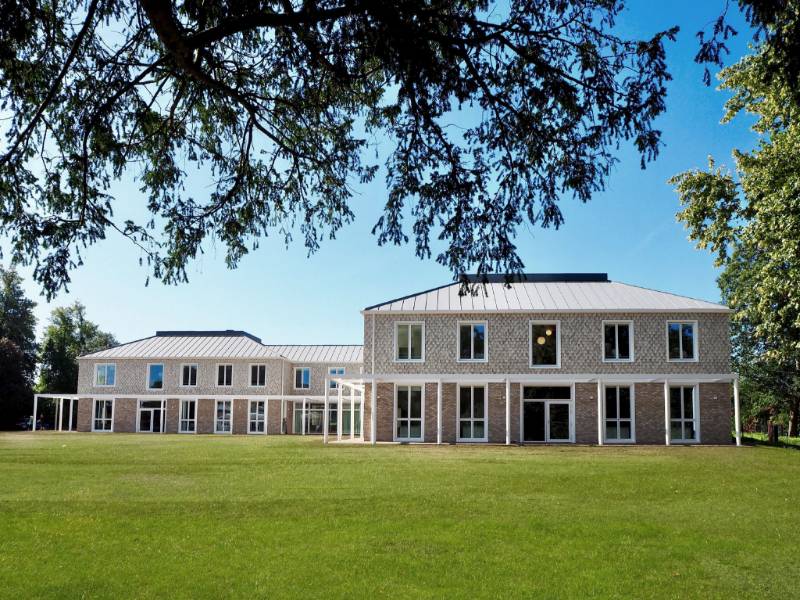

The Aisher boarding house, Sevenoaks

The Aisher boarding house, Sevenoaks

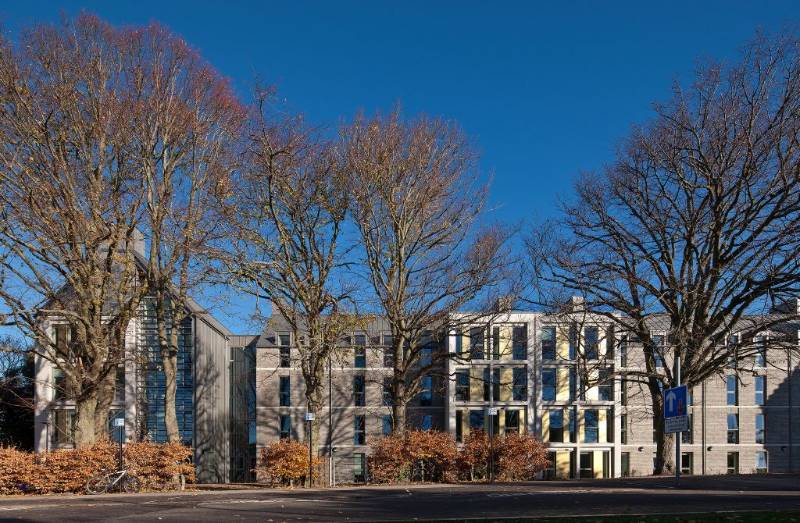

University of St Andrews, Scotland

University of St Andrews, Scotland

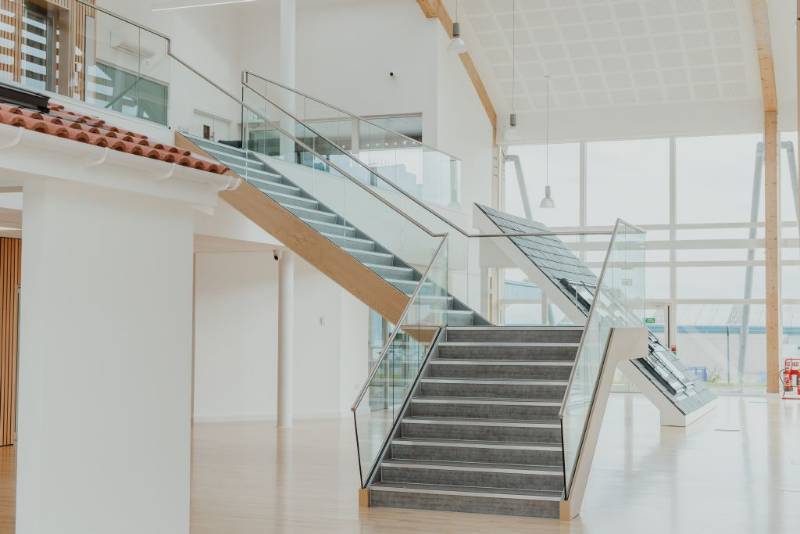

VELUX HQ

VELUX HQ

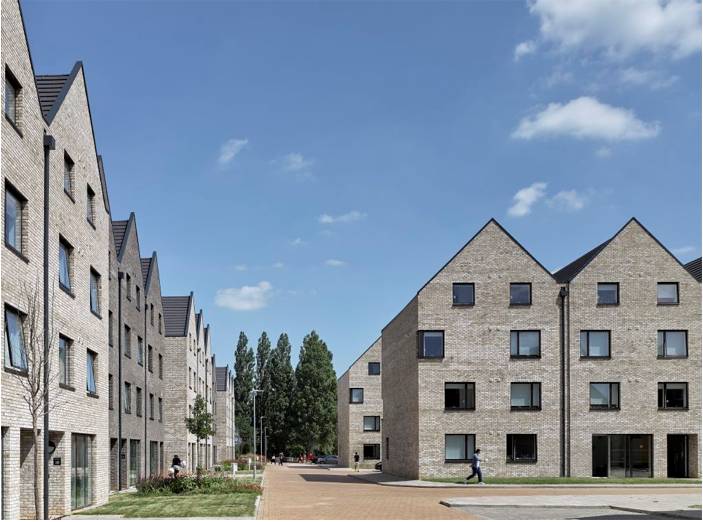

Westwood Student Mews, Coventry

Westwood Student Mews, Coventry

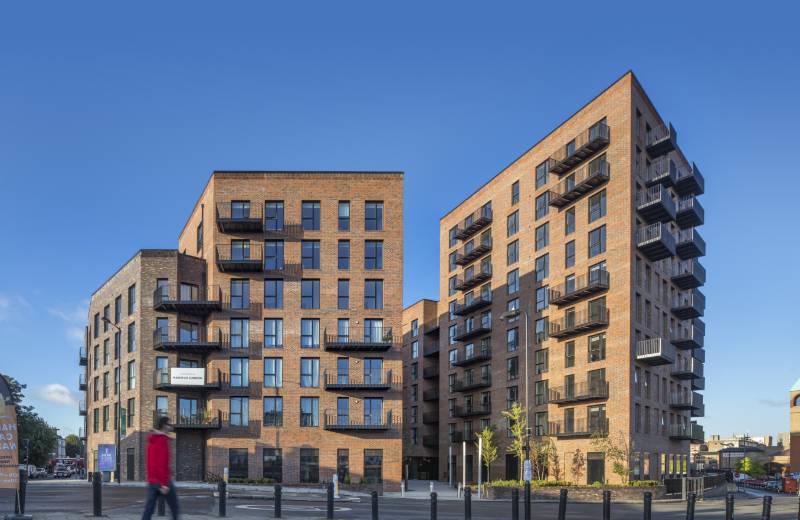

Dalston Lane, London

Dalston Lane, London

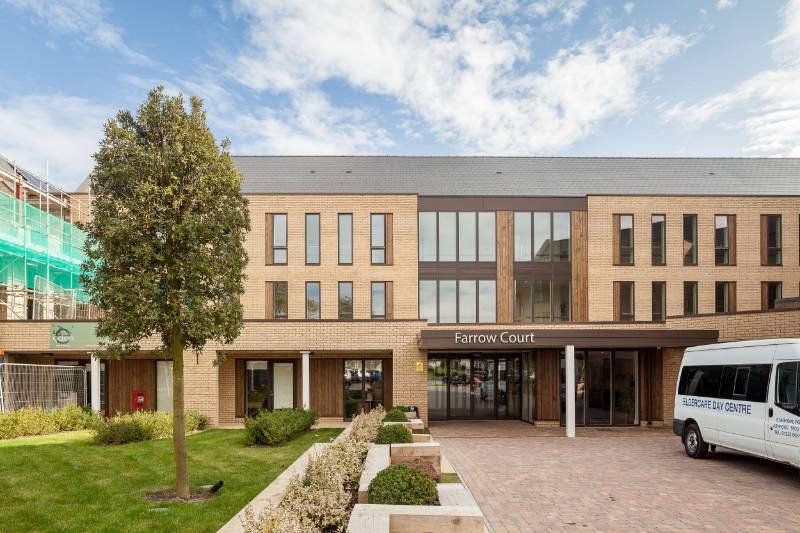

Farrow Court, Ashford - Sheltered housing
