33 mm Vega Single Bank Weather Louvres
33 mm Vega Single Bank Weather Louvres
A range of louvre wall systems in single and double bank designs.
Application
Suitable for building services and ventilation facades for
- Schools & Universities
- Offices.
- Car showrooms
- Leisure Centres
- Shopping Centres & Retail Units
- Commercial Buildings.
- Data Centres
- Car Parks (MSCP)

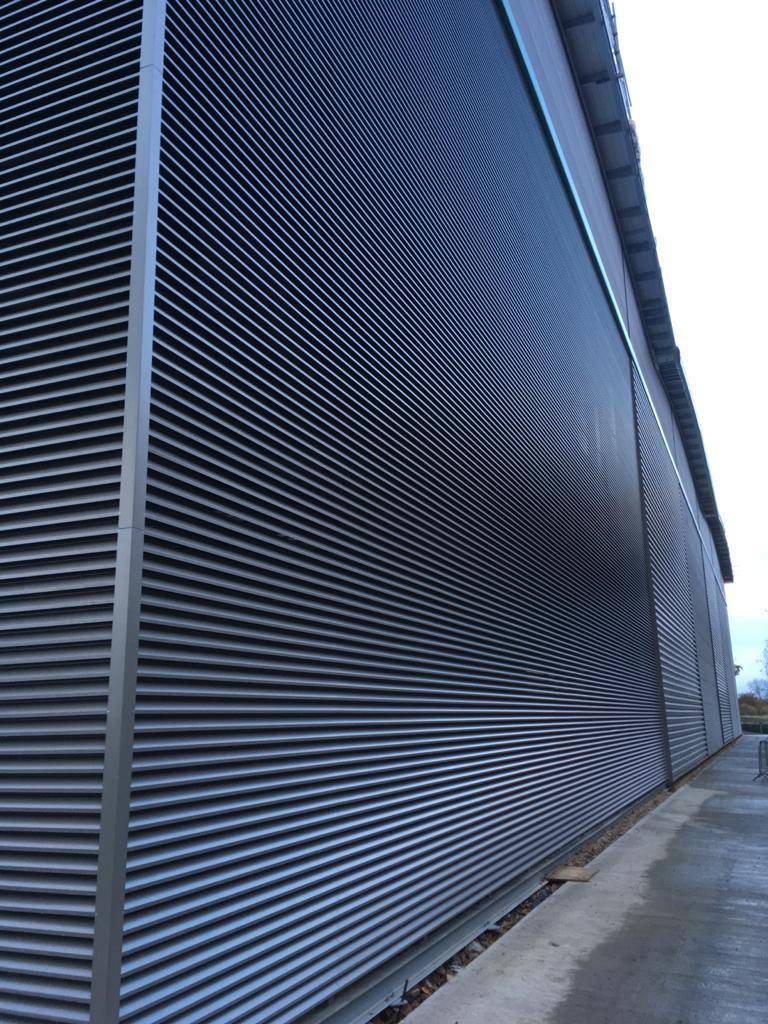

Typical building application below
- Roof top plant screens
- Bike & Cycle Stores
- Refuge & Bin Stores
- Generator Enclosures
- Basement Level Screening
Description
A range of louvre wall systems
- The 50HP Vega high-performance louvre wall system is designed primarily for use in building elevations to allow air flow whilst virtually preventing water penetration.
- The 75Z Vega performance wall louvre system is an aesthetic, robust and cost-effective continuous single bank louvre system.
- The 33Z Vega performance wall louvre system is a small blade, single bank design which is predominantly used for panel applications, but can be used for continuous wall-mounted systems where a finer look is required.
Features and benefits:

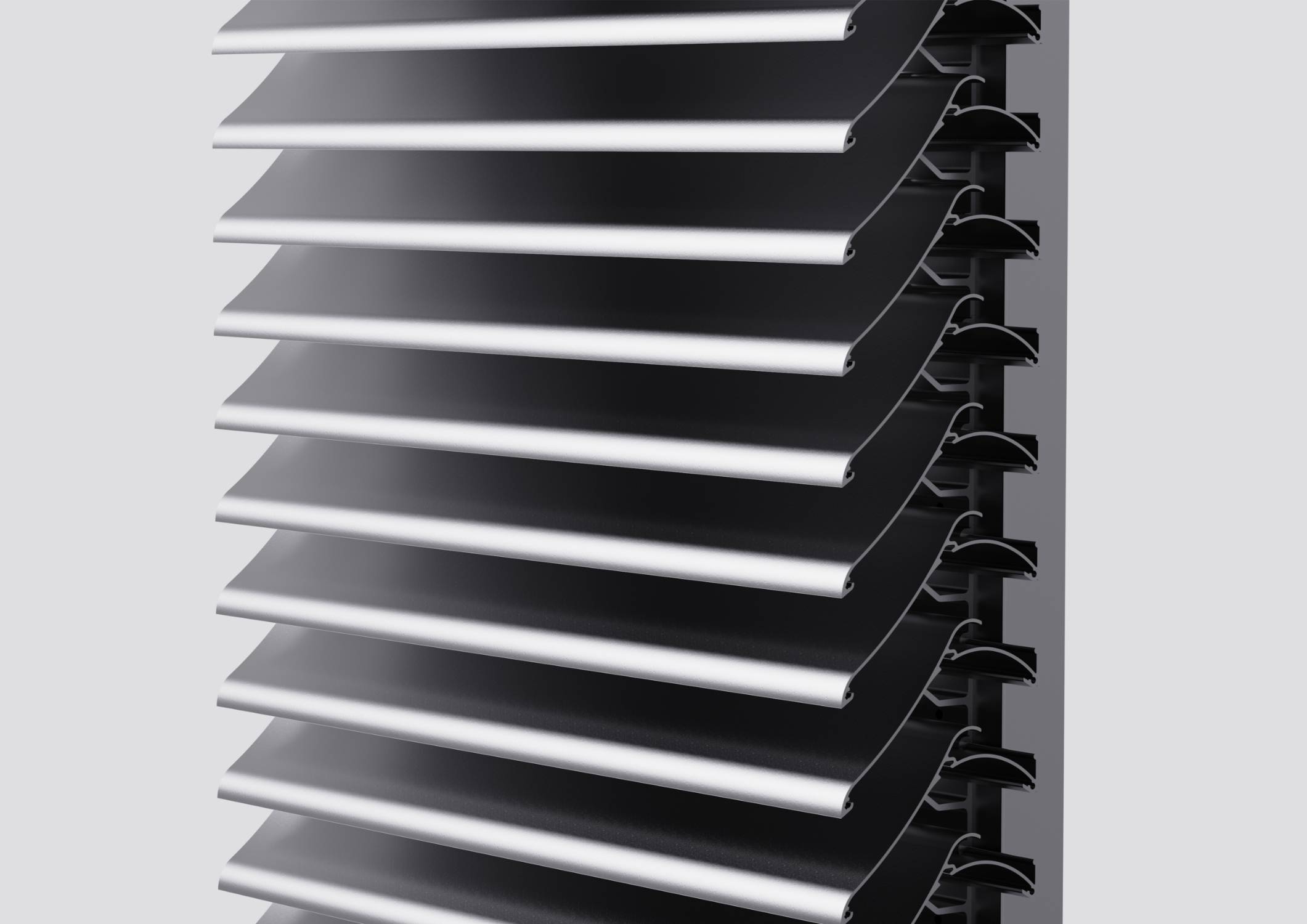

- Z-shaped or curved louvres.
- Manufactured from extruded aluminium profiles.
- Continuous architectural louvre systems to suit all layouts including Straight, Facetted & Curved Systems
- Integrated Single & Double Louvre Door Systems
- Different Louvre blade sizes to suit project requirements
- Single/Double bank louvre design.
- Manufactured from 6063-T6 extruded aluminium alloy.
General information
Color | Other |
Finish | Powder-coated Anodized Mill |
Material | Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | H11/437 Louvres H11/140 Louvres L10/54 Louvres L10/650 Metal louvres |
Specification data - Aluminium louvre panel units
Classification data | |
Size (l x w x d) | Manufacturer guidanceInsert requirements or insert As drawing or As schedule. |
Material | 6063-T6 extruded aluminium alloy to BS EN 12020. |
Finish | Anodizing to BS 3987. Guidance for specification option: To 25 μm. Milled. Powder coating to BS EN 12206-1. Guidance for specification option: To minimum 40 μm. |
Colour | Manufacturer guidancePolyester powder coating available in RAL/ BS colours from the standard range. Insert requirements. |
Texture | Gloss. Matt. Satin. |
Construction | Mitred corners. External folded aluminium flashing corners. |
Air intake and exhaust performance | |
Application | Exhaust. Intake. |
Weather performance | |
Water penetration class (minimum) | To BS EN 13030, Class A. Guidance for specification option: Class A high weather rating performance at 0.5 m/s to BE EN 13030. |
Fire performance | |
Reaction to fire | To BS EN 13501-1, Class A2-s1,d0 (polyester powder-coated). |
Louvre configuration | |
Number of banks | One. |
Blade orientation | Horizontal. |
Blade pitch | 33.3 mm. |
Blade angle | 45° fixed. |
Accessories | Not required. Bird guard mesh. Insect guard mesh. Integral doors. Individual doors. |
Shape | Z shaped. |
Air flow | K-value (inlet): 22.04. K-value (exhaust): 17.51. |
Free area | 50.80%. |
Louvre size | 36 x 21 mm. Manufacturer guidanceProfile thickness: 1 mm. |
Fasteners | A2 stainless steel, with bi-metallic corrosion protection. |
Integral accessories | Head/ jamb/ sill profiles. Guidance for specification option: Bespoke to suit project requirements. |
Profile supports | Mullions: 45 x 60 mm (standard)/ 45 x 100 mm (longer spans). Manufacturer guidanceVertical support profile and blade profile: 113/ 153 mm. Vertical support profile horizontal centres: 2000 mm (50HP)/ 1250 mm (75Z). |
Brackets | 316 Grade stainless steel cleat, ref: 19-2001-CL (standard). |
