VEGA Continuous Louvre Plant Screening
Verified by manufacturer 20 hours ago
50Z Vega Single Bank Weather Louvres
50Z Vega Single Bank Weather Louvres
A range of architectural louvre systems for plant screening that are aesthetic, robust and cost effective.
Application
Suitable for use on the following building types
- Schools & Universities
- Offices.
- Car showrooms
- Leisure Centres
- Shopping Centres & Retail Units
- Commercial Buildings.
- Data Centres
- Car Parks (MSCP)
Typical building application below

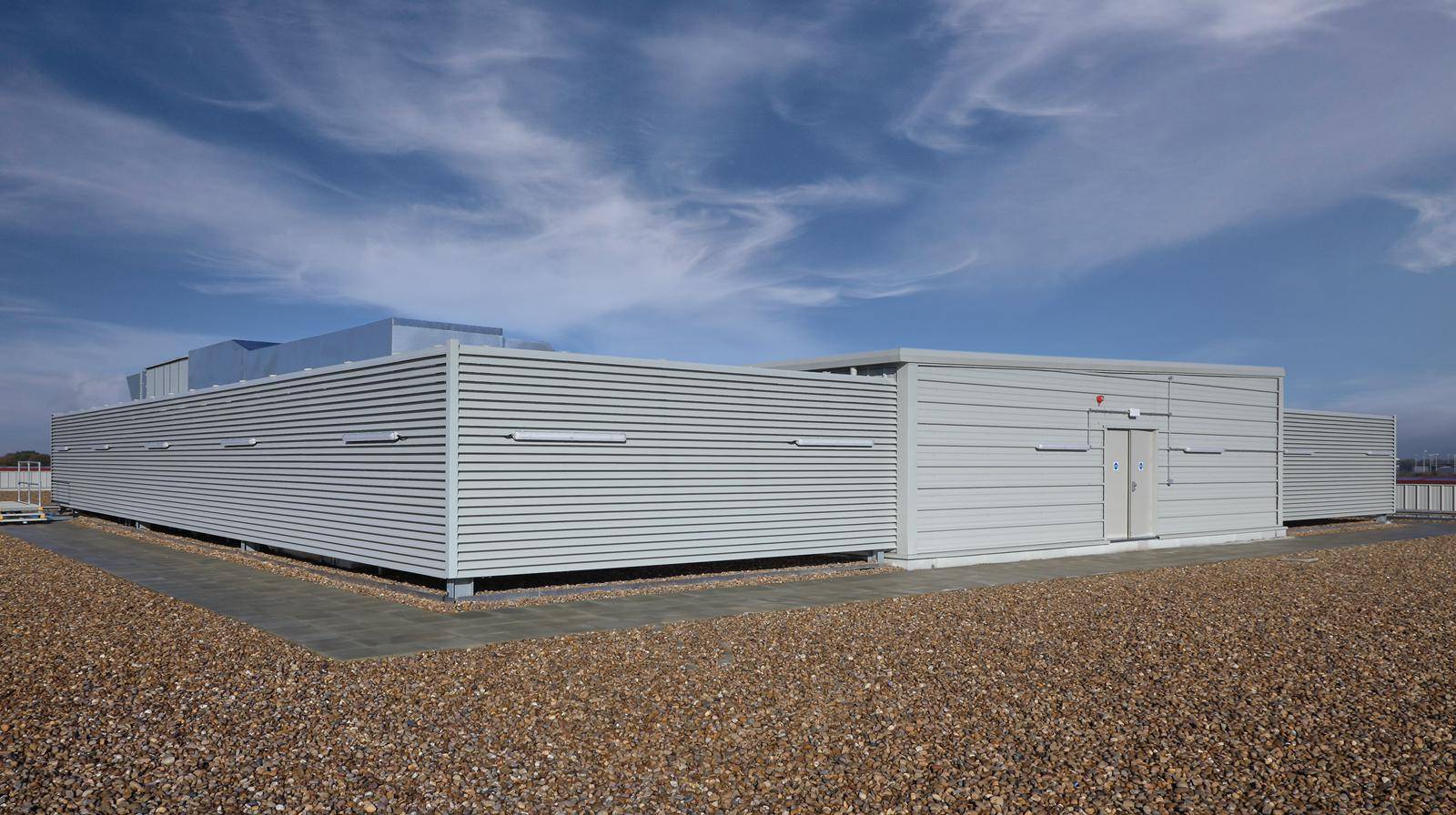

- Roof top plant screens
- Bike & Cycle Stores
- Refuge & Bin Stores
- Generator Enclosures
- Basement Level Screening
Description
Four systems are available
- 125Z Vega louvre wall system
- 125F Vega louvre wall system.
- 75Z Vega performance wall louvre system
- 50Z Vega performance wall louvre system
Features and benefits:
- Continuous architectural louvre systems to suit all layouts including Straight, Facetted & Curved Systems
- Integrated Single & Double Louvre Door Systems
- Different Louvre blade sizes to suit project requirements
- Single bank louvre design.
- Manufactured from 6063-T6 extruded aluminium alloy.
General information
Color | Other Beige Black Bronze Copper |
Finish | Powder-coated Anodized Mill |
Material | Aluminium |
Shape | Rectangle Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | Q40/30 Proprietary fencing Q40/430 Proprietary fencing |
Specification data - Aluminium louvre panel units
Classification data | |
Size (l x w x d) | Manufacturer guidanceInsert requirements or insert As drawing or As schedule. |
Material | 6063-T6 extruded aluminium alloy to BS EN 12020. |
Finish | Anodizing to BS 3987. Guidance for specification option: To 25 μm. Milled. Powder coating to BS EN 12206-1. Guidance for specification option: To minimum 40 μm. |
Colour | Manufacturer guidancePolyester powder coating available in RAL/ BS colours from the standard range. Insert requirements. |
Texture | Gloss. Matt. Satin. |
Construction | Mitred corners. External folded aluminium flashing corners. |
Air intake and exhaust performance | |
Application | Exhaust. Intake. |
Weather performance | |
Water penetration class (minimum) | |
Fire performance | |
Reaction to fire | To BS EN 13501-1, Class A2-s1,d0 (polyester powder-coated). |
Louvre configuration | |
Number of banks | One. |
Blade orientation | Horizontal. |
Blade pitch | 50 mm. |
Blade angle | 45° fixed. |
Accessories | Not required. Insect mesh. Bird mesh. Blanking plates. Integral doors. Individual doors. |

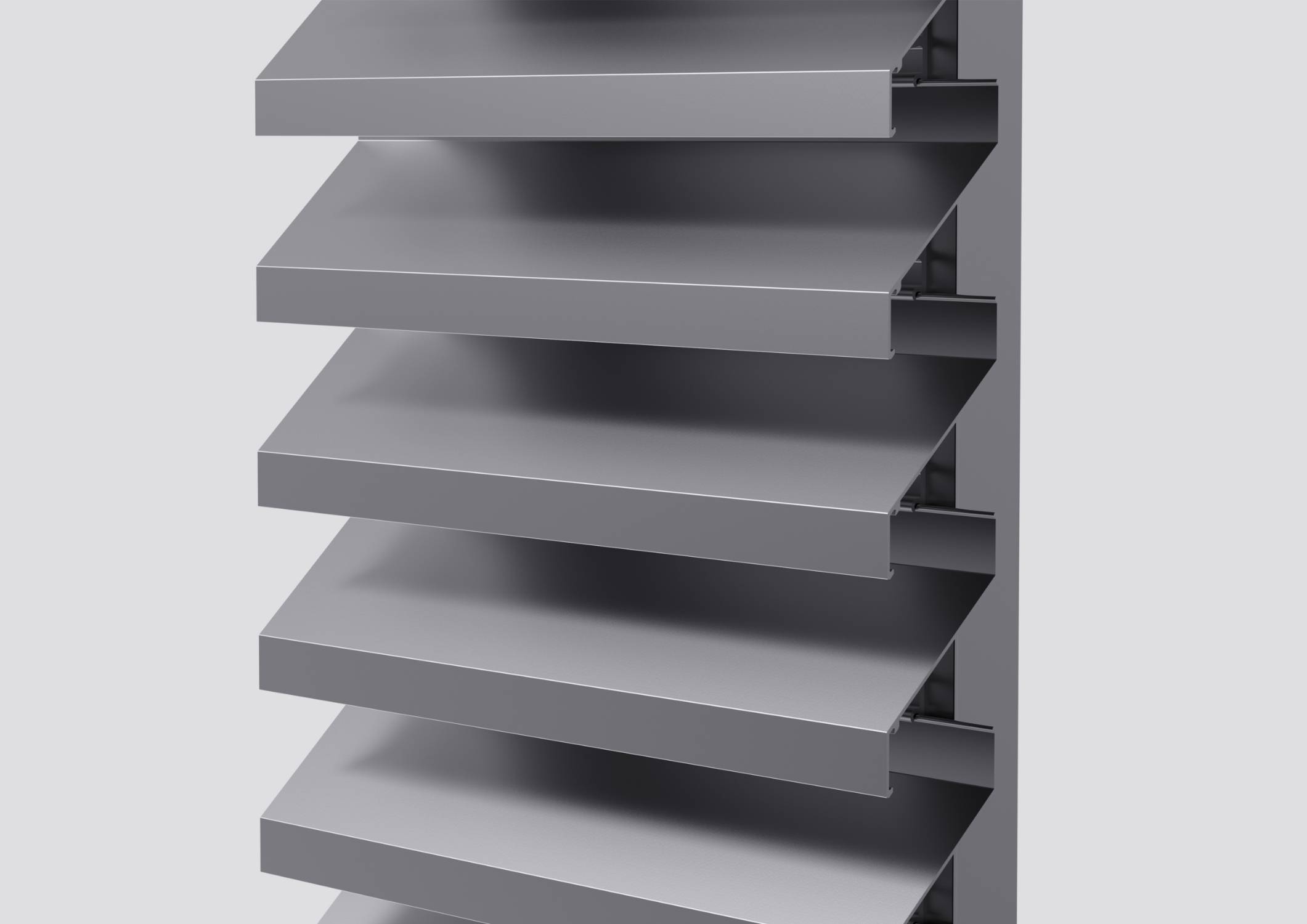

Shape | Z shaped. |
Free area | 50.00%. |
Louvre size | 52 x 32 mm. Manufacturer guidanceProfile thickness: 1.5 mm. |
Fasteners | A2 stainless steel, with bi-metallic corrosion protection. |
Integral accessories | Head/ jamb/ sill profiles. Guidance for specification option: Bespoke to suit project requirements. |
Profile supports | Mullions: 45 x 60 mm (standard)/ 45 x 100 mm (longer spans). Manufacturer guidanceVertical support profile and blade profile: 113/ 153 mm. Vertical support profile horizontal centres: 1250 mm (50Z, 75Z)/ 1500 mm (125Z, 125F). |
Brackets | 316 Grade stainless steel cleat, ref: 19-2001-CL (standard). |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Aluminium |
Recyclability | The global recycling efficiency rate (RER) of aluminium is currently 76% |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
