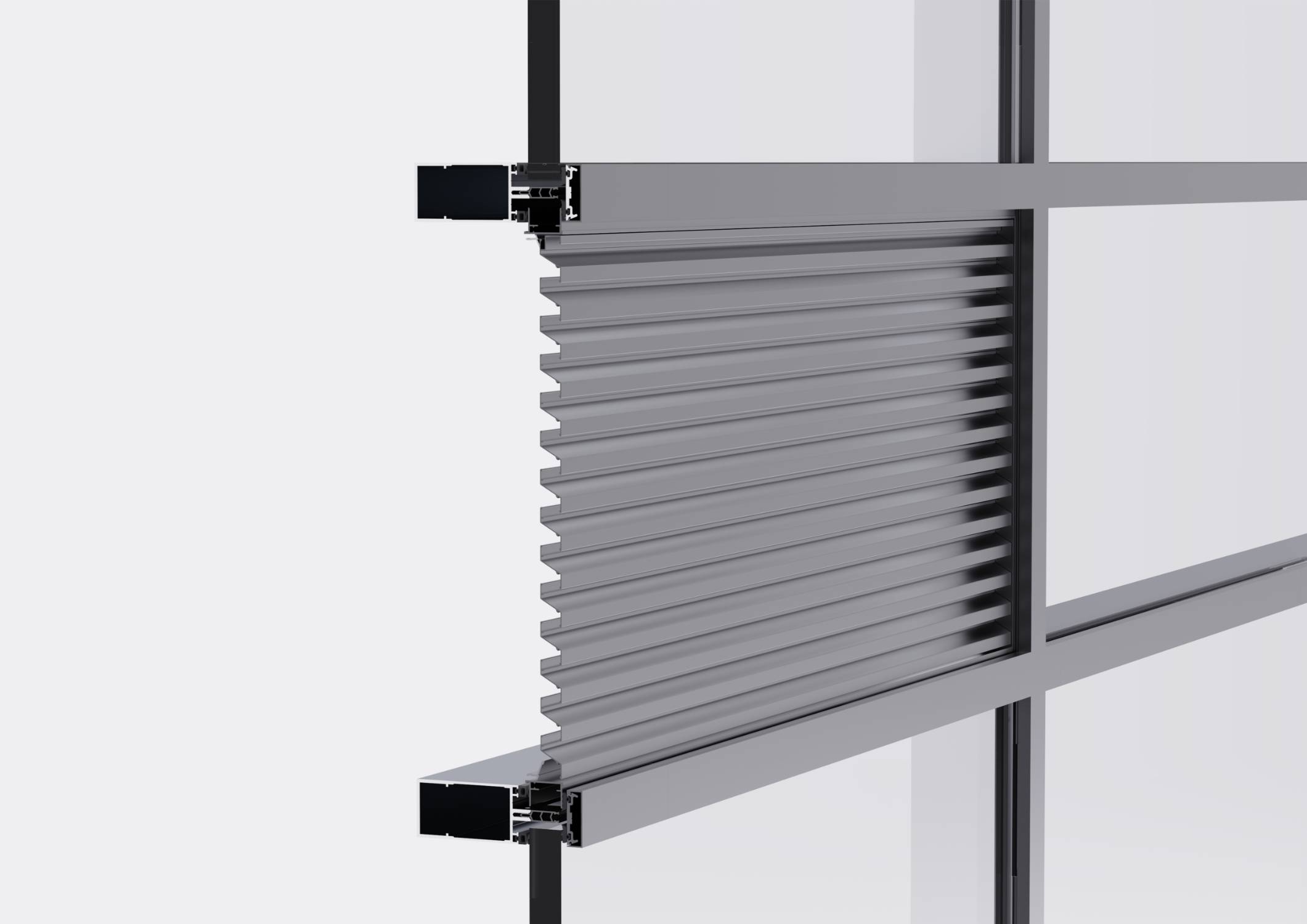

33 mm Vega Single Bank Louvre System
33 mm Vega Single Bank Louvre System
A range of louvre systems for glazed and wall mounted panels.
Application
For all louvre panel applications.
Description
A range of louvre systems for glazed and wall mounted panels.
All systems are designed for panel applications with several extruded frame designs to suit different glazing depths and wall types.
Three systems
- 33Z Vega small blade louvre system is suitable for most architectural facade applications
- 50HP Vega high performance louvre system is designed primarily for use in building elevations to allow air flow whilst virtually preventing water penetration.
- 75Z Vega small blade louvre system is suitable for larger architectural panel facade applications
Features and benefits:
- Z shaped/ curve shaped profiles.
- Different louvre profile options to meet Architect/MEP airflow & weather requirements
- Different frame options to meet facade applications
- Manufactured from 6063-T6 extruded aluminium alloy.
General information
Color | Other Beige Black Blue Bronze |
Finish | Powder-coated Anodized Mill Metallic Textured |
Material | Aluminium |
Shape | Rectangle Triangle Square Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | H11/437 Louvres H11/140 Louvres L10/54 Louvres L10/650 Metal louvres |
Specification data - Aluminium louvre panel units
Classification data | |
Size (l x w x d) | Manufacturer guidanceInsert requirements or insert As drawing or As schedule. |
Material | 6063-T6 extruded aluminium alloy to BS EN 12020. |
Finish | Anodizing to BS 3987. Guidance for specification option: To 25 μm. Milled. Powder coating to BS EN 12206-1. Guidance for specification option: To minimum 40 μm. |
Colour | Manufacturer guidancePolyester powder coating available in RAL/ BS colours from the standard range. Insert requirements. |
Texture | Gloss. Matt. Satin. |
Construction | 28 mm custom glazed and flanged frames with mitred corners. 32 mm custom glazed and flanged frames with mitred corners. |
Air intake and exhaust performance | |
Application | Exhaust. Intake. |
Weather performance | |
Water penetration class (minimum) | To BS EN 13030, Class A. Guidance for specification option: Class A high weather rating performance at 0.5 m/s to BE EN 13030. |
Fire performance | |
Reaction to fire | To BS EN 13501-1, Class A2-s1,d0. |
Louvre configuration | |
Number of banks | One. |
Blade orientation | Horizontal. |
Blade pitch | 33.3 mm. |
Blade angle | 45° fixed. |
Accessories | Not required. Insect mesh. Bird mesh. Blanking plates. |
Shape | Z shaped. |
Air flow | K-value (inlet): 22.04. K-value (exhaust): 17.51. |
Free area | 50.80%. |
Louvre size | 36 x 21 mm. Manufacturer guidanceProfile thickness: 1 mm. |
Fasteners | A2 stainless steel, with bi-metallic corrosion protection. |
Integral accessories | Head/ jamb/ sill profiles and brackets. Guidance for specification option: To suit project requirments. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Material | Aluminium |
Recyclability | The global recycling efficiency rate (RER) of aluminium is currently 76% |
Expected Life | 80 year |
