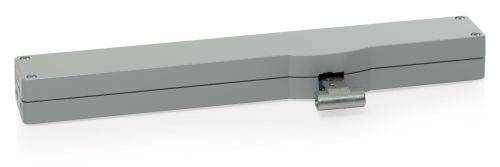

VCD Chain Actuator

Description

A range of chain actuators, suitable for façade and roof windows.

Features and benefits:

  • For façade windows, roof windows and ventilation flaps in conservatories.
  • With motor electronics controlled via microprocessor.
  • 'TMS+' tandem safety function (combines TMS and BRV message) for operating two drives on one sash.
  • Option of chain stroke programming via magnet.
  • Reprogrammed opening stroke is transmitted to the tandem drive.
  • Simple connection via plug connector.
  • Programmable drive functions and different drive parameters.
  • Running speed in closed direction decreases to 5 mm/s (passive closing edge protection).
  • Time-controlled reversing when an obstacle is detected in the closed direction (active closing edge protection).

General information

Uniclass 2015

Pr_75_50_02_13 Chain actuatorsPrimary

CAWS

L10/10 Wood windows

L10/15 Wood windows

L10/20 Steel windows

L10/210 Wood windows

L10/25 Aluminium windows

L10/250 Wood windows

L10/260 Wood windows

L10/30 PVC-U windows

L10/31 PVC-U windows

L10/310 Steel windows

L10/315 Steel windows

L10/33 Proprietary windows

L10/330 Aluminium windows

L10/335 Aluminium windows

L10/350 PVC-U windows

L10/360 PVC-U windows

L10/380 PVC-U windows

L10/390 Proprietary windows

L10/400 Composite windows

L10/410 Composite windows

L10/45 Rooflights

L10/460 Rooflights

L10/480 Roof windows

L10/490 Roof ventilators

L10/50 Roof windows

L10/650 Metal louvres

Specification data - Chain actuators

Product Reference

VCD Chain Actuator

Type

See 'Options' below and insert reference.

Accessories

None

Brackets

Various options available consult literature and insert product reference(s).

Cables

Standard product features

Technical characteristics:

  • Supply: 24 V d.c (0.35 A). Except for '- K' drive which requires 230 V (50 Hz).
  • Duty cycle: 30 %.
  • Force of pressure: 200 N.
  • Tensile force: 150 N.
  • Nominal locking force: 2000 N.
  • Service life: > 10 000 double strokes.
  • Open running speed: 6 mm/s.
  • Closed running speed: 6 mm/s.
  • Ingress protection rating: IP 30.
  • Housing: Die-cast zinc.
  • Surface: Powder coated.
  • Connection: 2.5 m cable.

Product Options

Type:

- VCD 203 drive (Stroke: 250 mm):

  • VCD 203/250 (SR). Silver (~ RAL 9006).
  • VCD 203/250 (WH). White (~ RAL 9016).
  • VCD 203/250 (BK). Black (~ RAL 9005).
  • VCD 203-PLP. Variable equipment possible.

- VCD 204 drive:

  • VCD 204/250 (SR). Stroke: 250 mm, silver (~ RAL 9006).
  • VCD 204/250 (WH). Stroke: 250 mm, white (~ RAL 9016).
  • VCD 204/250 (BK). Stroke: 250 mm, black (~ RAL 9005).
  • VCD 204/350 (SR). Stroke: 350 mm, silver (~ RAL 9006).
  • VCD 204/350 (WH). Stroke: 350 mm, white (~ RAL 9016).
  • VCD 204/350 (BK). Stroke: 350 mm, black (~ RAL 9005).
  • VCD 204-PLP. Variable equipment possible.

- VCD 204 TMS+ Set drive (Stroke: 350 mm):

  • VCD 204/350-TMS+ Set (SR). Stroke: 350 mm, silver (~ RAL 9006).
  • VCD 204/350-TMS+ Set (WH). Stroke: 350 mm, white (~ RAL 9016).
  • VCD 204/350-TMS+ Set (BK). Stroke: 350 mm, black (~ RAL 9005).
  • VCD 204-PLP. Variable equipment possible.

- VCD 204-K drive (Direct control via 230 V):

  • VCD 204/250-K (SR). Stroke: 250 mm, silver (~ RAL 9006).
  • VCD 204/250-K (WH). Stroke: 250 mm, white (~ RAL 9016).
  • VCD 204/250-K (BK). Stroke: 250 mm, black (~ RAL 9005).
  • VCD 204/350-K (SR). Stroke: 350 mm, silver (~ RAL 9006).
  • VCD 204/350-K (WH). Stroke: 350 mm, white (~ RAL 9016).
  • VCD 204/350-K (BK). Stroke: 350 mm, black (~ RAL 9005).
  • VCD 204-K. Variable equipment possible.

- VCD 204-K TMS+ Set (Direct control via 230 V, 2 tandem drives):

  • VCD 204/250-K-TMS+ Set (SR). Stroke: 250 mm, white aluminium (~ RAL 9006).
  • VCD 204/250-K-TMS+ Set (WH). Stroke: 250 mm, white (~ RAL 9016).
  • VCD 204/250-K-TMS+ Set (BK). Stroke: 250 mm, black (~ RAL 9005).
  • VCD 204/350-K-TMS+ Set (SR). Stroke: 350 mm, white aluminium (~ RAL 9006).
  • VCD 204/350-K-TMS+ Set (WH.) Stroke: 350 mm, white (~ RAL 9016).
  • VCD 204/350-K-TMS+ Set (BK). Stroke: 350 mm, black (~ RAL 9005).
  • VCD 204-K-TMS+ Set. Variable equipment possible.
