VCC64 – Channel and Volume Controller

Verified by manufacturer 5 months ago

Johnson Controls Third party certifications:
  • CE Marking

    Certificate type

Volume and channel controller.

Jump to:
BOS
Website

Application

In-wall installation in local zone.

Description

The VCC-64 allows up to 99 programmable channels and volume control (0–9). Usually installed in local zone and connected via bus to the system, it offers source selection, volume control and lock function.


Features and benefits:

  • Installation in local zone and connected via bus to the system.
  • 99 programmable channels.
  • Volume control (0–9).
  • Bus RS-485 interface.
  • 4 P terminal block.
  • DIP switch.
  • Lock function.
  • LCD Display of 2 x 8 character type.
  • Anti-interference, confirms EN 55103-2, CE, CCC certified.

General information

Color

White

Finish

Smooth

Material

Acrylonitrile butadiene styrene (ABS)

Shape

Rectangle

Length

40 mm

Width

86 mm

Height

56 mm

Warranty description

Three year

Uniclass

Pr_60_75_08_48 Local volume controlsPrimary

CAWS

S92/420 Alarm devices

S92/420 Alarm devices

Specification data - Local volume controls

Volume control

Resistive – switched.

Enclosure

-

Mounting method

Recessed.

Faceplate finish

ABS material, white.

Power supply

12V DC

Power consumption

1.2 W maximum (100 mA).

Display

2 x 8 characters LCD.

Environmental conditions

Temperature -5 to 55ºC.
Relative humidity 15–80%.

Dimensions

86 x 56 x 40 mm.

Manufacturer guidance

Width x height x length.

Weight

110 g.

Sustainability data

Contains Red List materials

No

Country of material origin

Spain

Country of product manufacture

Spain

Material

Acrylonitrile butadiene styrene (ABS)

Manufacturing plant location

Recyclability

Recyclability (guidance on recyclability considerations): Refers to the ability and ease with which a product can be recycled at the end of its useful life. This item provides guidance or information on aspects related to product recycling, which may include tips on how to disassemble or separate its components to facilitate recycling, as well as information on the materials used in their manufacture and their potential for recycling.

Expected Life

Ten year

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

Third party certifications

CE Marking

CE Marking

VCC-64 Certificate

Literature

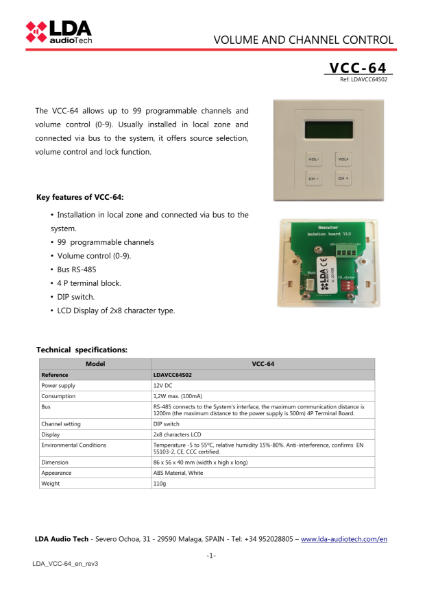

VCC64 – Channel and Volume Controller
