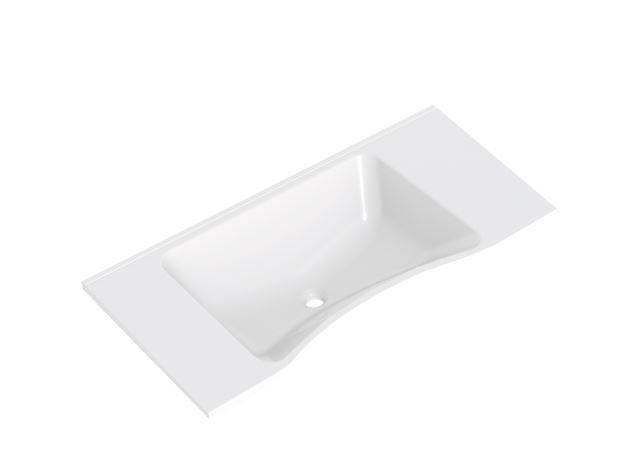

VariusMed Scrub Up Trough

Verified by manufacturer over a year ago

(ANMW0030) 203.0590.629

KWC DVS Limited Variant:

Multi-purpose medical washing trough.

Jump to:
+44 (0)1246 458900 Website

Application

Suitable for medical environments.

Description

Multi-purpose medical washing trough.


Features and benefits:

  • Manufactured from Miranit granite composite with an alpine white gelcoat finish to provide a stylish, clean and hygienic solution for sanitary rooms in healthcare environments.
  • The pore-free, smooth gelcoat surface is dirt repellent and easy to clean. The material has a high stability towards changes in water temperature (temperature resistant up to 80°C).
  • The fracture-proof, robust material is suitable for high usage areas. Has a large internal radii, with significant rearward slant to prevent dripping water.
  • Can be manufactured to suit project requirements. Specify the number of moulded bowls (three maximum), basin length and bowl distance in order to suit any installation. Includes an integral back panel with integrated brackets and fixing materials.
  • Overflow not included.

General information

Color

White

Finish

Gelcoat

Material

Granite

Shape

Rectangle

Length

440 mm

Width

645 mm

Height

205 mm

Uniclass

Pr_40_20_96_99 Wash troughsPrimary

CAWS

N13/346 Washing troughs

Product range

Washing Troughs

Specification data - Wash troughs

Materials

-

Body

Miranit granite composite.

Finish and colour

Alpine white gelcoat.

Size

230 x 550 mm.

Water supply, overflow and waste holes

-

Overflow

None.

Product Reference

(ANMW0030) 203.0590.629

(ANMW0031) 203.0590.632

(ANMW0032) 203.0590.633

Length

Guidance for specification option:

Insert requirements, 700–3600 mm.

Spacing

Guidance for specification option:

700 mm minimum centre-to-centre spacing, insert requirements.

Accessories/ Other requirements

Not required.

(ZANMW0038) 203.0590.153.

Guidance for specification option:

Reinforced stainless steel bracket.

(ZANMW0039) 203.0590.154.

Guidance for specification option:

Reinforced white coated steel bracket.

Amount

Single.

Guidance for specification option:

Width: 1000 mm.

Bowl

645 x 205 x 440 mm.

Thickness

25 mm.
