Variset NV Range Hanging Systems
Description

Variset is a range of options for the storage of coats, bags and personal effects. Hangers and hooks slide in aluminium rails, which can also form a slatted shelf, to provide anything from a single hook rail to a complete cloakroom layout. Designed for use in offices and conference areas, as well as cloakrooms. Hangers and/ or hooks (either sliding or fixed) are usually supplied at 100 mm centres, but any other spacing can be specified. Available in lengths and configurations to suit room layout.

Product range/ properties:

– Variset NV1: Wall mounted shelf and coat hanger system.

  • Overall width including coat hangers: 545 mm.
  • Width of shelf: 330 mm.
  • Overall height of wall brackets: 212 mm.
  • A solid wall is required for fixing to.

– Variset NV2.1: Wall mounted shelf with nylon hooks along one rail.

  • Width of shelf: 330 mm.
  • Overall height of wall brackets: 212 mm.
  • A solid wall is required for fixing to.

– Variset NV2.2: Wall mounted shelf with nylon hooks along two rails.

  • Width of shelf: 330 mm.
  • Overall height of wall brackets: 212 mm.
  • A solid wall is required for fixing to.

– Variset NV2.3: Wall mounted shelf with nylon hooks along three rails.

  • Width of shelf: 344 mm.
  • Overall height of wall brackets: 212 mm.
  • A solid wall is required for fixing to.

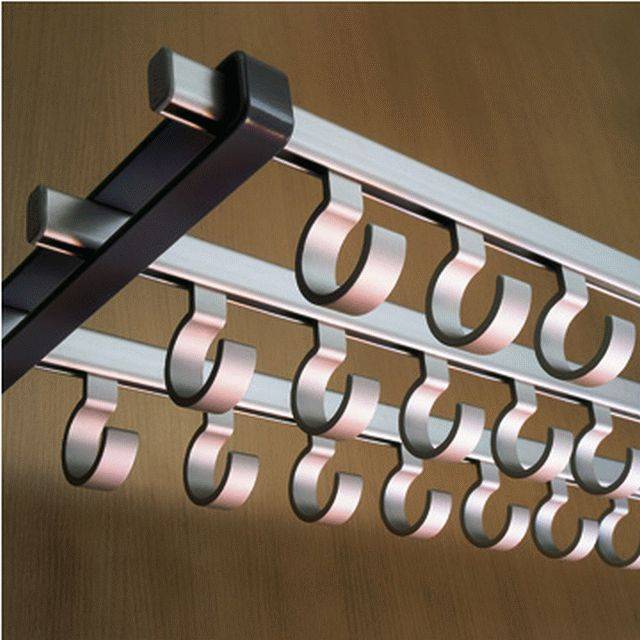

– Variset NV2.1C: Wall mounted shelf with aluminium cup hooks along one rail.

  • Width of shelf: 330 mm.
  • Overall height of wall brackets: 212 mm.
  • A solid wall is required for fixing to.

– Variset NV2.2C: Wall mounted shelf with aluminium cup hooks along two rails.

  • Width of shelf: 330 mm.
  • Overall height of wall brackets: 212 mm.
  • A solid wall is required for fixing to.

– Variset NV2.3C: Wall mounted shelf with aluminium cup hooks along three rails.

  • Width of shelf: 335 mm.
  • Overall height of wall brackets: 212 mm.
  • A solid wall is required for fixing to.

– Variset NV3: Wall mounted shelf, coat hanger and coat hook system.

  • Overall width including coat hangers: 545 mm.
  • Width of shelf: 330 mm.
  • Overall height of wall brackets: 212 mm.
  • A solid wall is required for fixing to.

– Variset NV10: Wall mounted coat hook system.

  • Overall depth: 44 mm.
  • Overall height of wall fixing: 28 mm.

– Variset FSA/NV3D: Free-standing double island shelf, coat hanger and coat hook system; single or double sided with NV options as above.

  • Overall width including hangers: 1150 mm.
  • Overall width of both shelves: 715 mm.
  • Total height: 1880 mm.

Accessories:

  • End brackets: To fix ends of rails to return walls with special captive nuts to prevent rails being lifted off.
  • Hangers: Choice of types: PH acrylic hanger, WH wooden hanger or NV moulded hanger.
  • Numbers: Hangers can be numbered and detachable numbered claimers are available if required.
  • Two tier units: For increased capacity.
  • Added security: Hangers can incorporate an armoured cable (CRL) with the option of a coin return lock or padlock and hasp.
  • The units are made in lengths to order.

General information

Material

Extruded aluminium rails with mild steel brackets

Uniclass 2015

Pr_40_30_78_17 Coat racksPrimary

CAWS

N10/210 Coat racks

Specification data - Coat racks

Product Reference

NV1 Coat Hanger System

NV1 PH Coat Hanger System

NV1 WH Coat hanger system

NV2.1 Coat Hook System

NV2.2 Coat Hook System

NV2.3 Coat Hook System

NV2.1C Coat Hook System

NV2.2C Coat Hook System

NV2.3C Coat Hook System

NV3 Coat Hanger and Coat Hook System

NV3 PH Coat Hanger and Coat Hook System

NV3 WH Coat Hanger and Coat Hook System

NV10 Coat Hook System

FSA/ NV3D Free Standing Island Coat Hanger and Coat Hook System

Rails

-

Finish

Silver anodized

Nylon coated

Polyester coated

Wall brackets

-

Finish

Nylon coated

Polyester coated

Fittings

Not required

End brackets

Numbering hangers

Standard product features

Material:

Extruded aluminium rails with mild steel brackets.

Colour:

Polyester or nylon coated in a comprehensive range of RAL colours. Consult manufacturer for details.

Product Options

Colour:

Comprehensive range of RAL colours available; consult manufacturer for details.

Fittings:

Fixing: Wall brackets to be fixed at maximum 1000 mm centres.
