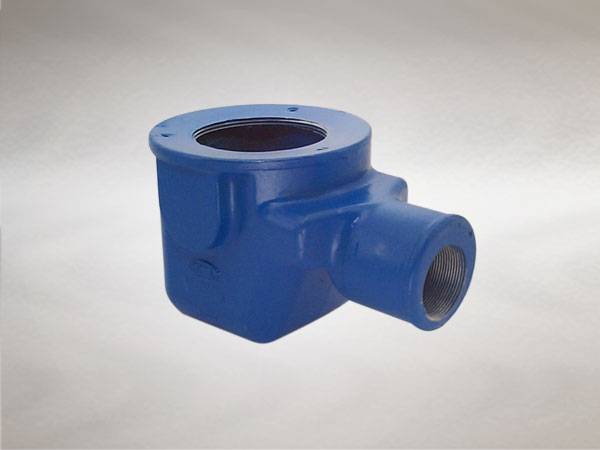

Name: Vari-Level rodding eyes, trapped
Brand: 9PCSnDK4sR4faZBXgDMK4S
SKU: 6oXoQWkkpKDMBQf5MJx8St

R11/390 Rodding eyes

Add U201 for 4" throat version.

Add U1101 for 3" throat version.

Add U1101 for 3" throat version.

For plastics pipe.

For 100 mm SuperSleve pipe.

For 150 mm SuperSleve pipe.

Body material:

Cast iron body, trapped sump.

Plastic body, trapped sump (applies to GP1104, GP312 and GP614).

Stainless steel grade 304 body, trapped sump (applies to QG114 and QG214), grade 316 is available on request.

Cast iron access covers:

H – Fitted with Pin Torx screws for security applications.

Nickel bronze access covers:

H – Fitted with Pin Torx screws for security applications.

I – Tapped to provide a direct connection for waste pipes - specify size BSP - 1¼", 1½", or 2" (applies to K51 Series, K52 Series, L51 Series and K5301; K5103 & L5103 may also be tapped 3" or 4" BSP; K5102 may also be tapped 3" BSP).

P – Polished.

Stainless steel access covers:

H – Fitted with Pin Torx screws for security applications.

I – Tapped to provide a direct connection for waste pipes - specify size BSP - 1¼", 1½", or 2" (applies to K51, K52 and K53 only).

P – Polished.

M - grade 316 stainless steel (K5107 and K5607 have sherardized cast iron frame).

Direct connection gratings, stainless steel, non-trapped

Uniclass 2015	Pr_65_52_24_31 Floor gulliesPrimary
CAWS	R11/390 Rodding eyes

Product Reference	Vari-Level rodding eye, trapped
Body	-
Cast iron	Not required G102, ‘P’ trapped, 50 mm seal, size 2” BSP G202, ‘P’ trapped, 50 mm seal, rodding access plug, size 2” BSP G203, ‘P’ trapped, 50 mm seal, rodding access plug, size 3” BSP G303, ‘P’ trapped, 50 mm seal, rodding access plug, size 75 mm G304, ‘P’ trapped, 50 mm seal, rodding access plug, size 100 mm G502, ‘S’ trapped, 50 mm seal, rodding access plug, size 2” BSP G503, ‘S’ trapped, 50 mm seal, rodding access plug, size 3” BSP G603, ‘S’ trapped, 50 mm seal, rodding access plug, size 75 mm G604, ‘S’ trapped, 50 mm seal, rodding access plug, size 100 mm G1014, ‘S’ trapped, 50 mm seal, rodding access plug, size 100 mm GC144, bottle trapped, 50 mm seal, size 100 mm GD144, bell trapped, 50 mm seal, size 100 mm, pipework system BS 416/ Din19522/ plastics GD164, bell trapped, 50 mm seal, size 100 mm, BS 437 GP1104, plastic body, trapped 50 mm seal, size 110 mm, pipework system plastic/BS 416 GP312, plastic body, trapped 50 mm seal, size 50 mm, pipework system plastic GP614, plastic body, trapped 50 mm seal, size 110/ 50 mm, pipework system plastic H102, ‘P’ trapped, 100 mm seal, size 2” BSP H203, ‘P’ trapped, 100 mm seal, size 3” BSP H204, ‘P’ trapped, 100 mm seal, size 4” BSP J204, ‘P’ trapped, 100 mm seal, size 4” BSP
Stainless steel	Not required QG114, bell trapped, 60 mm seal, rodding access plug, size 100 mm QG214, 'P' trapped, 60 mm seal, rodding access plug, size 100 mm
Membrane clamping collar	Suffix C (optional), fits G and QG series bodies (G102 to G1004, QG114 and QG214) C.C, standard 4" throat version (gasketed), fits body GC144 C.CW, 4" throat version, includes weepholes (not sealed), fits body GC144 C.D, standard 4" throat version (gasketed), fits bodies GD144 and GD164 C.CW, 4" throat version, includes weepholes, (not sealed), fits bodies GD144 and GD164 C.H1, 3" throat version (optional), fits body H102 Add U201 for 4" throat version. C.H2, 4" throat version (optional), fits bodies H203 and H204 Add U1101 for 3" throat version. C.J2, 4" throat version (optional), fits body J204 Add U1101 for 3" throat version.
Access covers	-
Ductile iron	Not required K5801, 176 mm dia. double sealed L5701, 150 x 150 mm double sealed
Nickel bronze	Not required K5101, 142 mm dia. gasketed, for use with sheet floor covering K5102, 176 mm dia. gasketed, for use with sheet floor covering K5103, 250 mm dia. gasketed, for use with sheet floor covering K5201, 135 mm dia. gasketed K5202, 135 mm dia. gasketed K5203, 150 mm dia. gasketed K5301, 152 mm dia. gasketed, for use with trowel applied composition covering, 4 mm flange depth K5401, 155 mm dia. plug with ‘O’ ring seal for use in plunge & foot baths K5501, 152 mm dia. double sealed K5601, 176 mm dia. double sealed, for use with sheet floor covering K5701, 152 mm dia. double sealed, recessed (19 mm depth) for flooring material L5101, 135 x 135 mm gasketed L5103, 160 x 160 mm gasketed L5201, 150 x 150 mm hinged cover in square frame, unsealed L5301, 150 x 150 mm hinged cover with grating inside, unsealed L5401, 150 x 150 mm hinged cover with grating inside, sealed cover L5501, 150 x 150 mm double sealed L5601, 150 x 150 mm double sealed
Stainless steel	Not required K5107, 176 mm dia. for use with sheet floor covering, unsealed K5207 150 mm dia. gasketed K5307, 150 mm dia. gasketed, for use with trowel applied composition covering, 6 mm flange depth K5507, 150 mm dia. double sealed K5607, 176 mm dia. double sealed, for use with sheet floor covering L5305 135 x 135 mm hinged cover with a circular non-secured grating inside L5308 150 x 150 mm hinged cover with a circular non-secured grating inside L5507, 147 x 147 mm double sealed L5807, 150 x 150 mm double sealed, recessed (22 mm depth) for flooring material
Accessories	None T1301, 150 x 150 mm gulley adaptor for use with 4” throat grating/ cover T1302, 150 x 150 mm gulley adaptor for use with 3” throat grating/ cover T1401, 188 mm dia. gulley adaptor for use with 4” throat grating/ cover T1402, 188 mm dia. gulley adaptor for use with 3” throat grating/ cover T701, 3” cast iron adaptor for cast iron DIN 19522 SMU 75 mm T701, 3” cast iron adaptor for plastic pipe 82 mm O.D T702, 4” cast iron adaptor for cast iron BS 416 100 mm T702, 4” cast iron adaptor for cast iron DIN 19522 100 mm T703, 4” cast iron adaptor for cast iron DIN 19522 SMU 75 mm T703, 4” cast iron adaptor for plastic pipe 82 mm O.D T704, 4” cast iron adaptor for plastic pipe 75 mm O.D T712, 3” cast iron adaptor for cast iron BS 416 100 mm T712, 3” cast iron adaptor for cast iron DIN 19522 100 mm T712, 3” cast iron adaptor for plastic pipe 110 mm O.D T714, 3” cast iron adaptor for plastic pipe 75 mm O.D T792, 4" cast iron adaptor for cast iron BS 416 50 mm T792, 4" plastics (ABS) adaptor for cast iron DIN 19522 50 mm T742, 2" BSP male thread cast iron T801, 3” cast iron adaptor for cast iron BS 416 75 mm T803, 4” cast iron adaptor for cast iron BS 416 75 mm T901, 4” cast iron adaptor for clay supersleve 100 mm T911, 3” cast iron adaptor for clay supersleve 100 mm TP702, 4” plastics (ABS) adaptor for cast iron BS 416 100 mm TP702, 4” plastics (ABS) adaptor for cast iron DIN 19522 100 mm TP702, 4” plastics (ABS) adaptor for plastic pipe 110 mm O.D T1103, 100 mm Supersleve pipework - for 100 mm BS 416 or BS 437 T1201, 50 mm copper pipework adaptor - for 50 mm BS 416 T1202, 75 mm copper pipework adaptor - for 75 mm BS 416 T1203, 100 mm copper pipework adaptor - for 100 mm BS 416 T1501, 100 mm plastic pipework adaptor - for 100 mm BS416 T1603, 75 mm DIN 19522 Ensign pipework adaptor - for 75 mm BS 416 T101, spigot adaptor to 2" BSP thread for 50 mm cast iron BS 416 T102, spigot adaptor to 3" BSP thread for 75 mm cast iron BS 416 T104, spigot adaptor to 6" BSP thread for 150 mm cast iron BS 416 T101, spigot adaptor to 2" BSP thread for 50 mm cast iron DIN 19522 (Ensign and SMU) T108, spigot adaptor to 3" BSP thread for 75 mm cast iron DIN 19522 (SMU) T102, spigot adaptor to 3" BSP thread for 75 mm cast iron DIN 19522 (Ensign) T103, spigot adaptor to 4" BSP thread for 100 mm cast iron DIN 19522 (Ensign and SMU) T104, spigot adaptor to 6" BSP thread for 150 mm cast iron DIN (Ensign and SMU) T302, spigot adaptor to 4" BSP thread for 100 mm stainless steel (Europipe) pipes T301, spigot adaptor to 3" BSP thread for 82 mm plastics pipes T103, spigot adaptor to 4" BSP thread for 160 mm HDPE T105 100 mm spigot adapter - For BS 437 cast iron pipe T106 150 mm spigot adapter - For BS 437 cast iron pipe T1802, Adaptor (ABS) to 2" BSP thread for 50 mm stainless steel pipework; threaded one end; length 90 mm T1702 Adaptor (ABS) to 2" BSP thread for 50 mm plastics pipework; threaded one end; length 60 mm; includes solvent weld socket T1704 Adaptor (ABS) to 4" BSP thread for 110 mm plastics pipework; threaded one end; length 126 mm; includes solvent weld socket T303 160 mm spigot adapter For plastics pipe. T501 100 mm spigot adapter For 100 mm SuperSleve pipe. T502 150 mm spigot adapter For 150 mm SuperSleve pipe. U101, cast iron extension for use with gratings/ covers with 4” throat and bodies with 4” inlet U102, cast iron extension for use with gratings/ covers with 4” throat and bodies with 4” inlet U103, cast iron extension for use with gratings/ covers with 4” throat and bodies with 4” inlet U104, cast iron extension for use with gratings/ covers with 4” throat and bodies with 4” inlet U1101, cast iron extension for use with gratings/ covers with 3” throat and bodies with 3” inlet U1202, stainless steel portable funnel U1203, Stainless steel portable funnel without tall piece U1501, stainless steel support plate and cast iron membrane clamp U1601, stainless steel asphalt flange U201, cast iron extension for use with gratings/ funnels/ covers with 4” throat and bodies with 4” inlet U208, cast iron extension for use with gratings/ covers with 4” throat and bodies series B1, B2, G2-G6, G8, G10 to provide height increase of only 25 mm U501, nickel bronze bolt on funnel for single direct waste pipe U502, cast iron bolt on funnel for single direct waste pipe U511, stainless steel bolt on funnel for single direct waste pipe U601, nickel bronze bolt on funnel for multiple direct waste pipe U602, cast iron bolt on funnel for multiple direct waste pipe U703, backwater valve 3" U704, backwater valve 4" U1404, removable bottle trap U1301, 90° swept bend U902, deep seal ‘P’ trap, 2” BSP inlet and outlet U903, deep seal ‘P’ trap, 3” BSP inlet and outlet U904, deep seal ‘P’ trap, 4” BSP inlet and outlet UP104, plastics extension for use with gratings/ covers with 4” throat and bodies with 4” inlet UP701, Vari-Level filter bucket UP702, Vari-Level filter bucket, deep version UX9901 - cast iron 100 mm inlet/outlet plug
