Vantage® - Cistern
Verified by manufacturer 4 months ago

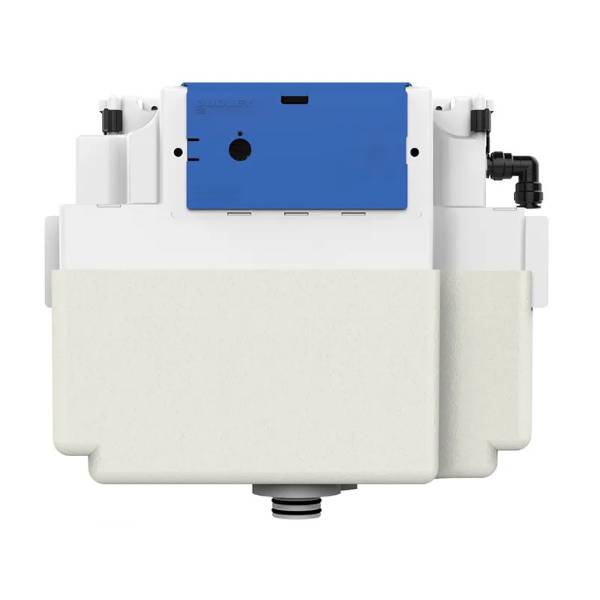

320433 - With polystyrene jacket
320433 - With polystyrene jacket
WRAS
Certificate type
A compact, dual flush concealed cistern.
Application
For domestic and commercial applications.
Description
A compact dual flush concealed cistern.
Features and benefits:
- Air tubes enable the button, plate or sensor to be installed up to 750 mm away from the cistern.
- Dual flush to support BREEAM level of excellence, factory set to 6/4 L, convertible to 5/3 - 4/2.6 L.
- Compact dimensions enable the Dudley Vantage to fit into furniture units as small as 500 x 200 x 800 mm [W x D x H].
- Fitted with Hydroflo side inlet, integral isolating valve and internal overflow warning, Niagara pneumatic valve, front and top access panels.
- CAT 5 and WRAS approved.
General information
Color | White |
Finish | Gloss |
Material | High density polystyrene |
Shape | Rectangle |
Length | 125 mm |
Width | 460 mm |
Height | 369 mm |
Warranty description | Five year Guidance for specification option: Five years for lever operated cisterns. Three year Guidance for specification option: Three years for syphon operated cisterns. |
Uniclass | |
CAWS | N13/300 WCs and cisterns N13/10 WC pans and flushing arrangements |
Specification data - WC cisterns
Approval | Water Regulations Advisory Scheme (WRAS)-approved, CAT 5 approved. |
Standard | To BS EN 997. |
Form | Concealed. |
Operation | Push-button.Flush plate.Automatic, sensor operated. |
Materials | |
Finish and colour | White. |
Capacity | 6/4 L dual flush.5/3 L dual flush.4/2.6 L dual flush. |
Water supply, overflow and outlet holes | |
Water supply | Side inlet. |
Outlet | Bottom outlet. |
Integral accessories | Polystyrene jacket. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 20 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
WRAS
Vantage Concealed Cistern
