K3 Vanity (High gloss Colourcoat)
K3 Vanity (High gloss Colourcoat)

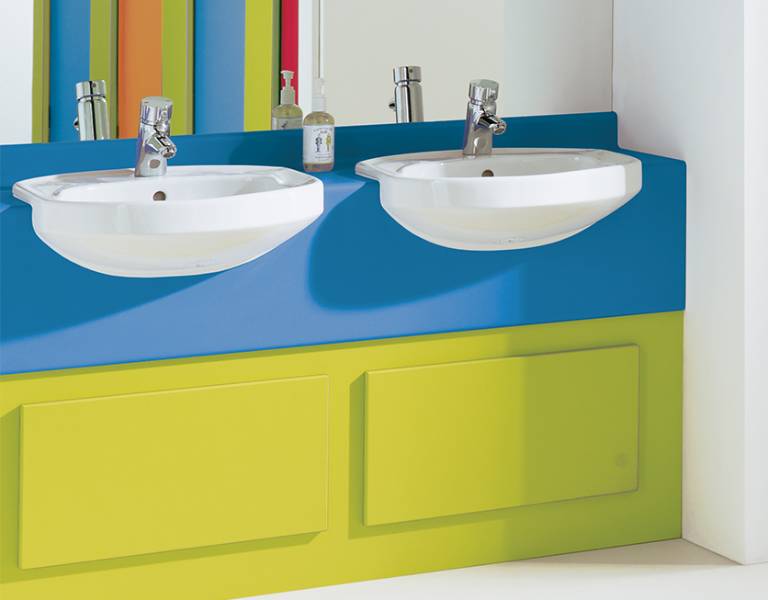

Pre-plumbed K3 profile vanity unit with fully inset basin with upstand.
Application
Suitable for dry washroom environments.
Description
An economical vanity unit solution suited to dry environments available in a full range of colours and materials.
K3 profile vanity unit with fully inset basin with upstand. Supplied as pre-plumbed.
Features and benefits:
- Removable access panels.
- Available in a range of materials.
General information
Color | Black Blue Green Grey Orange |
Finish | Laminated Lacquered Gloss Veneered |
Material | High pressure laminate (HPL) MFC Medium density fibreboard (MDF) |
Shape | Rectangle |
Width | 555 mm |
Height | 600 mm 675 mm 750 mm 800 mm 850 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | N10/145 Vanity and washroom furniture |
Product range |
Specification data - Vanity units
Materials | |
Carcass | |
Frame and panels | 18 x 18 x 75 mm softwood corner blocks, 18 mm nominal high performance melamine faced 660 kg/m³ grade moisture resistant chipboard (MFC). |
Worktop | |
Material | 660 kg/m³ grade moisture resistant chipboard faced each side with high pressure laminate (HPL). |
Finish and colour | Rouge (VEN324 | LRV 17).Papaya (VEN370 | LRV 35).Golden (VEN366 | LRV 52).Canary (VEN365 | LRV 65).Lime (VEN354 | LRV 54).Clover (VEN378 | LRV 20).Olive (VEN367 | LRV 38).Duck Egg (VEN368 | LRV 54).Marine Green (VEN360 | LRV 46).Hydrangea (VEN361 | LRV 55).Cornflower Blue (VEN359 | LRV 22).Pacific (VEN353 | LRV 20).Peacock (VEN371 | LRV 25).Teal (VEN377 | LRV 11).Indigo (VEN356 | LRV 8).Merlot (VEN364 | LRV 8).Macaroon (VEN348 | LRV 24).Peony (VEN376 | LRV 52).Porcelain (VEN352 | LRV 81).Suede (VEN369 | LRV 66).Cloud (VEN351 | LRV 58).Shadow (VEN350 | LRV 37).Gunmetal (VEN349 | LRV 10).Noir (VEN337 | LRV 5).Steel (VEN319 | LRV 42).Light Parchment (VEN363 | LRV 57).Grey Parchment (VEN362 | LRV 31).Vintage Grey (VEN372 | LRV 27).Weathered Grey (VEN358 | LRV 21).Black Ash (VEN374 | LRV 9).African Wenge (VEN373 | LRV 11).Dark Walnut (VEN355 | LRV 13).Golden Oak (VEN357 | LRV 36).Soft Oak (VEN375 | LRV 45). |
Integral accessories | Not required.Angle brackets.Screws and plugs for fixing underframe to floor and vanity top to underframe and back wall. |
Preplumbing | Pre-fixed and sealed to vanity unit by Venesta, all factory assembled. |
Thickness | 18 mm nominal. |
Vanity top and panels | Manufacturer guidance555 mm overall width bed with post-formed and radiused 100 mm apron (downstand) and coved, radiused 75 mm upstand, reinforced with moisture resistant chipboard divisions and ends with 25 mm MDF back rails all properly framed together including 18 x 18 x 75 softwood corner blocks, glued and screwed. |
Board | 660 kg/m³ grade moisture resistant chipboard faced each side with high pressure laminate (HPL). |
Underpanel | High performance medium density 720 kg/m³ grade fibreboard (MDF). |
Finish | Sprayed with one coat of primer and finished with High Gloss pigmented lacquer. |
Edge treatment | 1 mm matching ABS. 1 mm contrasting ABS. |
Underframe | 18 mm nominal high performance melamine faced 660 kg/m³ grade moisture resistant chipboard (MFC). |
Bed height | 600 mm. Guidance for specification option: Key stage 1. 675 mm. Guidance for specification option: Key stage 2. 750 mm. Guidance for specification option: Key stage 3. 800 mm. Guidance for specification option: Key stage 4 to adult. 850 mm. Guidance for specification option: Key stage 4 to adult. |
Fixing method | Concealed plastic clips fixed to edge of underframe cutouts and reverse of facing panels. |
Joint treatment | Nominal 70 mm wide flashgap between each panel section. |
Colour | Unity. Infinite. Sahara. Manufacturer guidanceThe High Gloss ColourCoat option for VV-epps unit and flashgap finishes are available for inclusion with the Venesta Cubicle ranges as follows. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | High pressure laminate (HPL) MFC Medium density fibreboard (MDF) |
Similar products from Venesta Washroom Systems Ltd

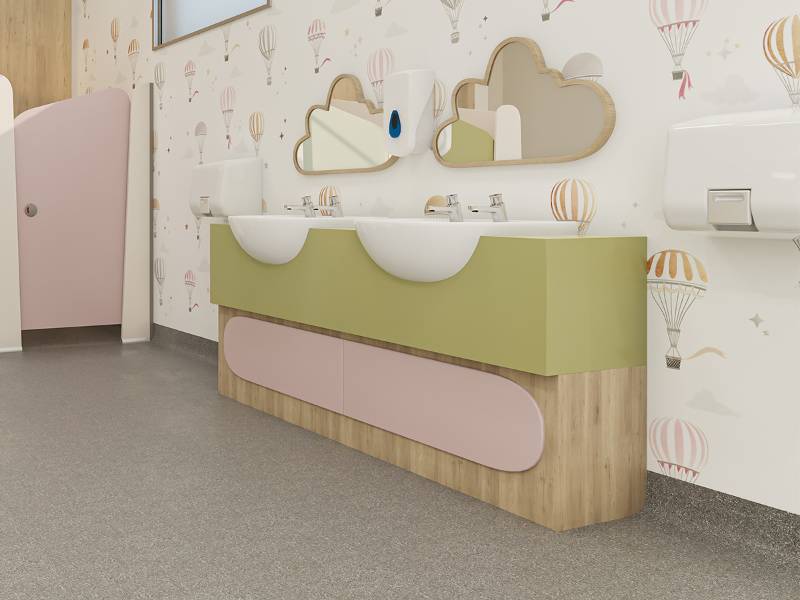

Education | Lollipop Vanities
Vanities | Baby Change Vanities

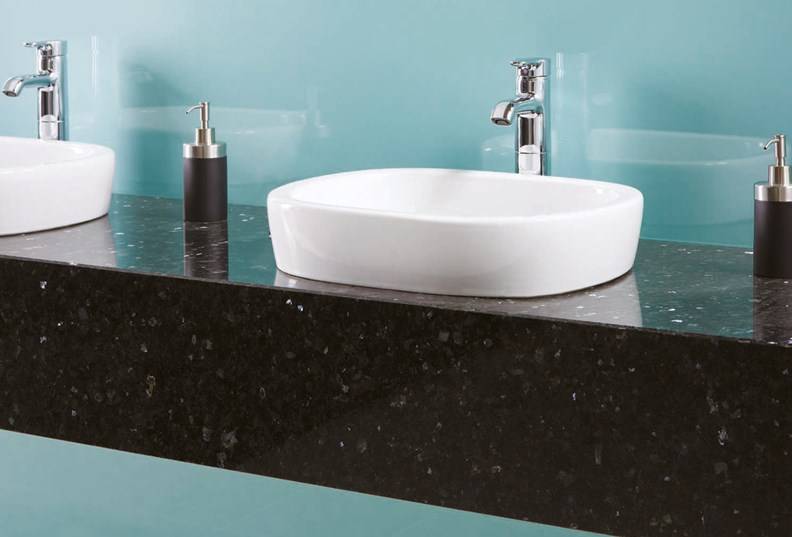

Vanities | Granite Vanity Units
Vanities | HPL K1 Profile, Factory Plumbed
Vanities | HPL K2 Vanity, Factory Plumbed
Vanities | HPL K4 Vanity, Factory Plumbed

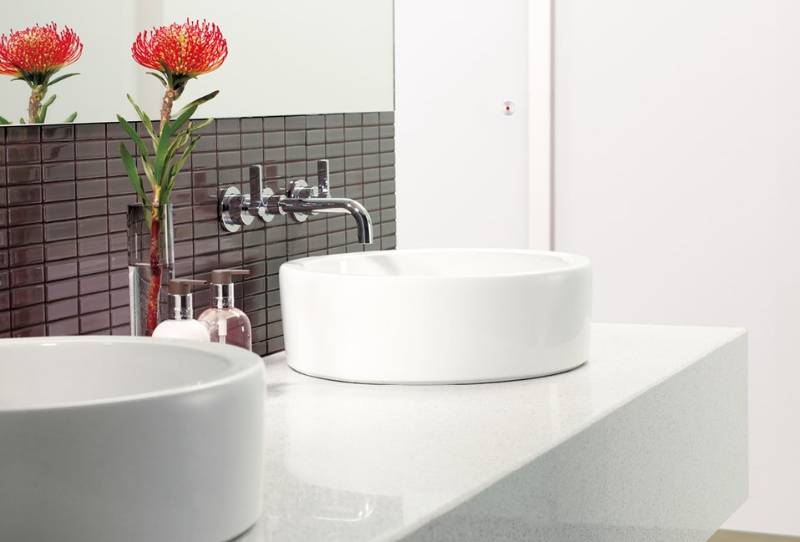

Vanities | Quartz Vanity Units
