VANDEX Construction Joint Tape - Waterproofing Tape
Verified by manufacturer 7 days ago
A waterproofing tape for construction joints and cracks in concrete structures.
Application
In combination with VANDEX BB 75 E flexible waterproofing slurry, forms an excellent and durable seal of construction joints and cracks, in damp concrete conditions.
- Moving joints have to be sealed with VANDEX FLEXTAPE.
- Water leaks should be waterproofed with VANDEX PLUG first.
Description
A waterproofing tape for construction joints and cracks in concrete structures.
Features and benefits:
- Economical and safe.
- Can be applied onto damp substrate.
- Resistant to hydrostatic pressure*.
- Permanently flexible.
- Can be bonded to concrete surfaces with VANDEX BB 75 E.
- Simple tape joints bonded with VANDEX BB 75 E.
- Approx. 0.7 mm thick.
- The sealing zone consists of a NBR rubber.
- Front and back side are laminated with an elasticized and alkali-resistant PP carrier fleece.
- The overlapping on both sides ensures an optimal bond to surface protection system.
*Resistant to hydrostatic pressure on the positive side, and on the negative side with appropriate support.
In combination with VANDEX BB 75 E flexible waterproofing slurry (available to specify separately), forms an excellent and durable seal of construction joints and cracks, in damp concrete conditions.
General information
Color | White |
Material | Rubber Polypropylene |
Shape | Rectangle |
Length | 30000 mm Guidance for specification option: Per roll. |
Width | 180 mm |
Height | 0.7 mm Guidance for specification option: Thickness. |
Uniclass | |
CAWS | J10/340 Sealants |
Specification data - Rubber flexible waterstops
Classification data | |
Material | NBR rubber covered by PP carrier fleece. |
Movement (maximum) | Elongation at lateral failure: 260%. |
Width | 180 mm. Guidance for specification option: Approx. Manufacturer guidanceWidth of fabric web (each side): approx. 10 mm. |
Roll length | 30 m. Guidance for specification option: Approx. |
Thickness | 0.7 mm. Guidance for specification option: Approx. |
Water vapour diffusion resistance | 45 000. |
Sustainability data
Material | Rubber Polypropylene |
Literature

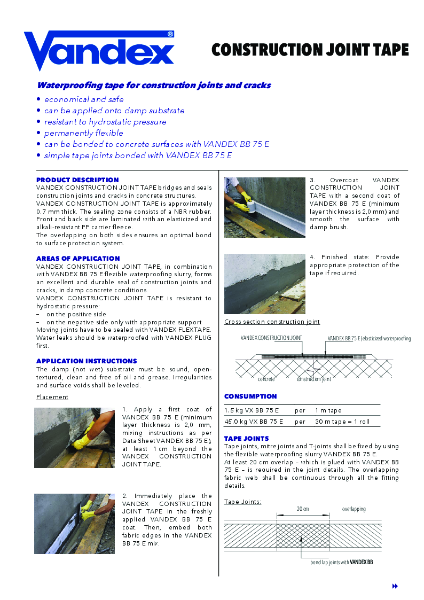

VANDEX Construction Joint Tape - Product Data Sheet
