Valenteena Valve Exposed

Verified by manufacturer 9 months ago

VTN.CN.CP

Elisa™ Variant:

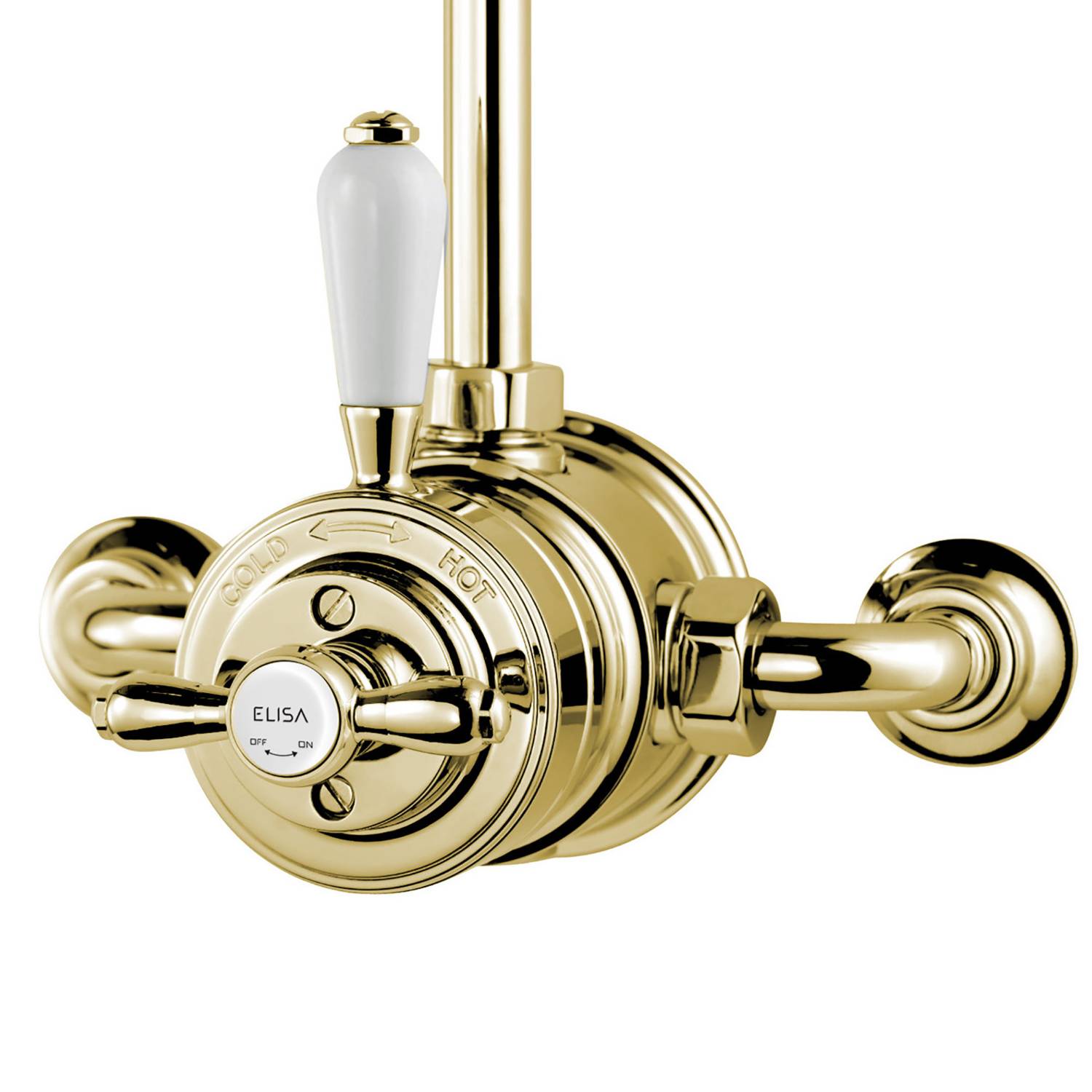

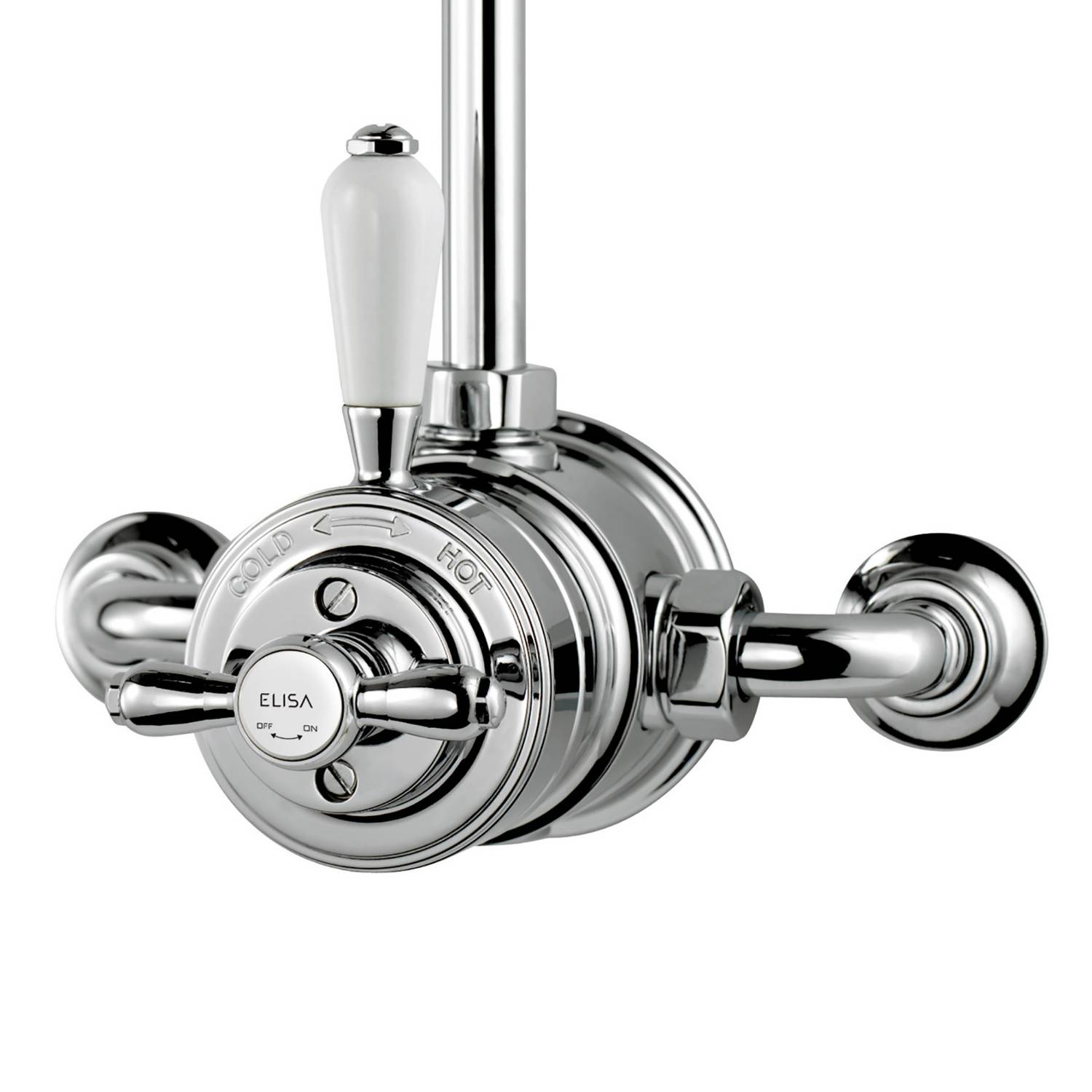

Solid brass exposed shower valve.

Jump to:
+44 (0)1959 560003 Website

Application

Compatible with gravity, boosted gravity, combi and balanced high pressure water systems.

Description

Classic styling, that features a range of traditional fixed or flexible shower head options, a solid brass concentric valve with an authentic ceramic temperature handle, combines distinctive, period aesthetics with all the benefits of safe, high performance, showering.


Available in polished chrome or gold plated the separate flow and thermostatic temperature controls ensure safe, precise and reliable showering and the extra assurance of automatic cut-off should water supplies fail. Compatible with all plumbing systems, a Valenteena shower is the perfect focal point for more traditional bathroom designs.


Features and benefits:

  • Quality, solid brass exposed shower valve.
  • Classically styled five inch and eight-inch drencher and adjustable shower head options.
  • Bi-metallic thermostatic technology to maintain a consistent and precise water temperature.
  • Maximum temperature limit can be set during installation.
  • Separate flow control.
  • Chrome or gold-plated finish.

General information

Color

Silver

Gold

Finish

Gloss

Material

Brass

Plastic

Shape

Other

Length

182 mm

Width

194 mm

Height

100 mm

Warranty description

Five year

Uniclass

Pr_40_20_87_80 Shower thermostatic valvesPrimary

CAWS

N13/42 Shower mixer valves

N13/40 Shower units

N13/375 Shower units

Specification data - Shower thermostatic valves

Form

Exposed wall-mounted thermostatic shower mixer valve.

Materials

-

Body

Brass.

Finish and colour

Gloss, chrome.

Flow rate (maximum)

8 L/ min at 0.1 bar; 20 L/min at 3 bar.

Water supply temperature (maximum)

65°C.

Guidance for specification option:

Minimum: 5°C.

Integral accessories

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Width

194 mm.

Depth

182 mm.

Height

100 mm.

Weight

2.6932 kg.

Bar

0.1—10 bar.

Manufacturer guidance

Min-Max.

OutletConnectionSize

3/4" BSP.

InletConnectionSize

15 mm compression.

Water supply

Hot left, cold right.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Literature

Elisa Valenteena Brochure Issue 01

Elisa Valenteena Brochure Issue 01
