VTN.CN.CP

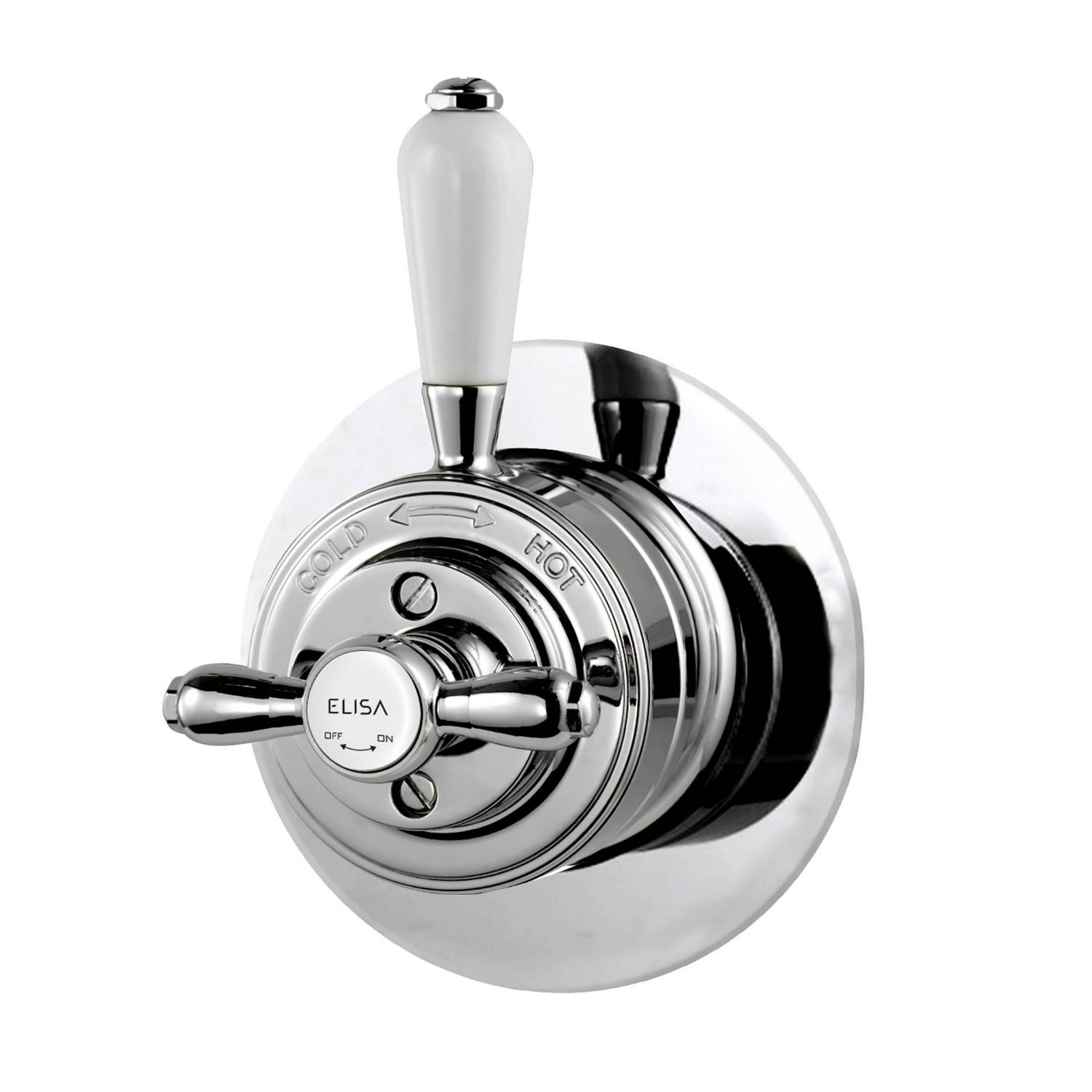

Solid brass concealed shower valve.
Compatible with gravity, boosted gravity, combi and balanced high pressure water systems.
Classic styling, that features a range of traditional fixed or flexible shower head options, a solid brass concentric valve with an authentic ceramic temperature handle, combines distinctive, period aesthetics with all the benefits of safe, high performance, showering.

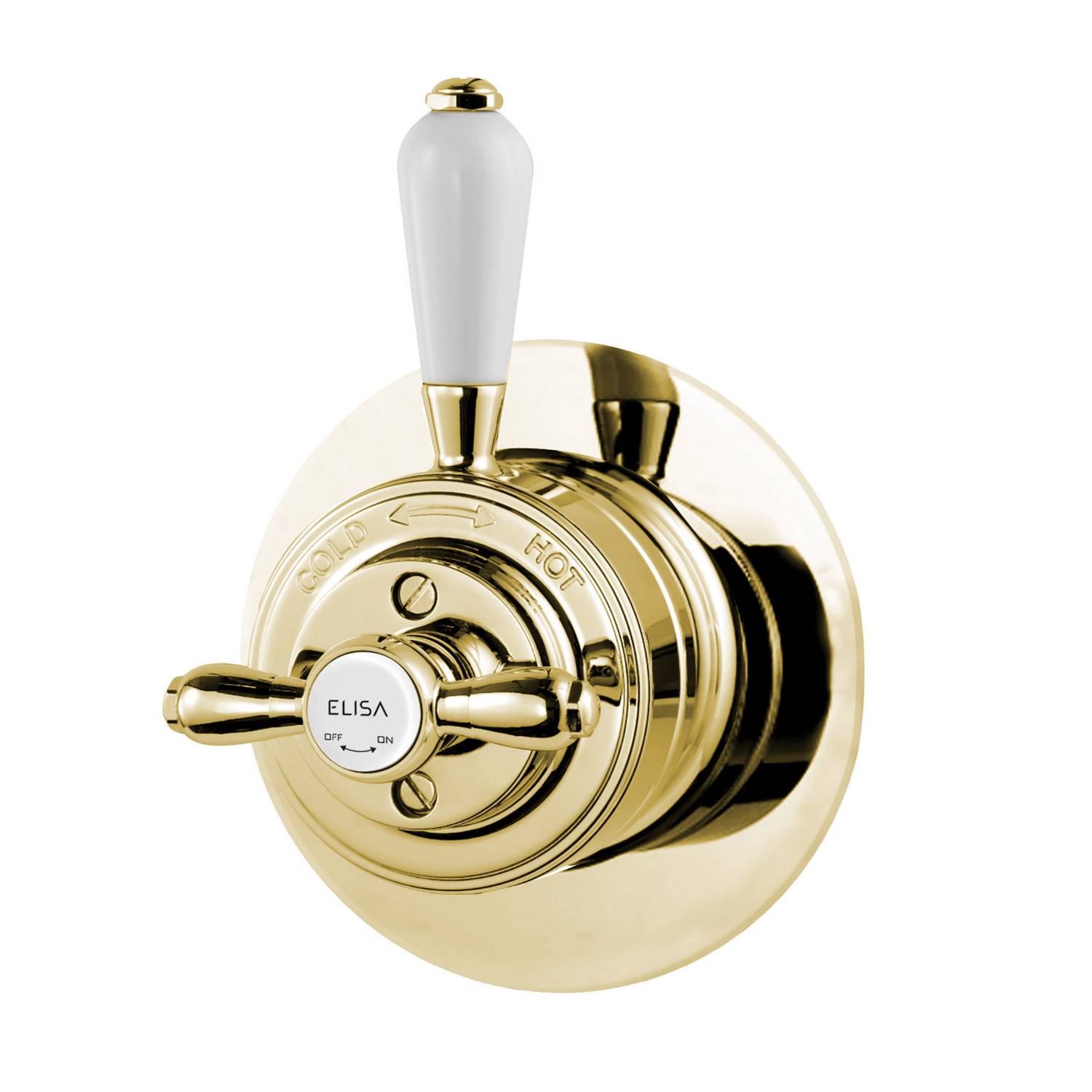

Available in polished chrome or gold-plated finish, the separate flow and thermostatic temperature controls ensure safe, precise and reliable showering and the extra assurance of automatic cut-off should water supplies fail. Compatible with all plumbing systems, a Valenteena shower is the focal point for more traditional bathroom designs.
Features and benefits:
Color | Silver Gold |
Finish | Gloss |
Material | Brass |
Shape | Other |
Length | 150 mm |
Width | 150 mm |
Height | 90 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/42 Shower mixer valves N13/40 Shower units N13/375 Shower units |
Form | Concealed wall-mounted thermostatic shower mixer valve. |
Materials | |
Body | Brass. |
Finish and colour | Gloss, chrome. |
Flow rate (maximum) | 8 L/ min at 0.1 bar; 20 L/min at 3 bar. |
Water supply temperature (maximum) | 65°C.Guidance for specification option: Minimum: 5°C. |
Integral accessories | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Width | 150 mm. |
Depth | 90 mm. |
Height | 150 mm. |
Weight | 2.3932 kg. |
Bar | 0.1—10 bar. Manufacturer guidanceMin-Max. |
OutletConnectionSize | 3/4" BSP. |
InletConnectionSize | 3/4" male threads. |
Water supply | Hot left, cold right. |
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
