V90 Stainless Steel Shelving System - Shelf Units
Verified by manufacturer 16 days ago
Stainless steel shelving system consisting of shelves (solid or perforated), uprights and brackets, that can be configured as required.
Application
Designed for applications including public, commercial, industrial, domestic and anti-vandal environments.
Suitable for:
Kitchens
Bathroom
Residential
Commercial Projects
Description

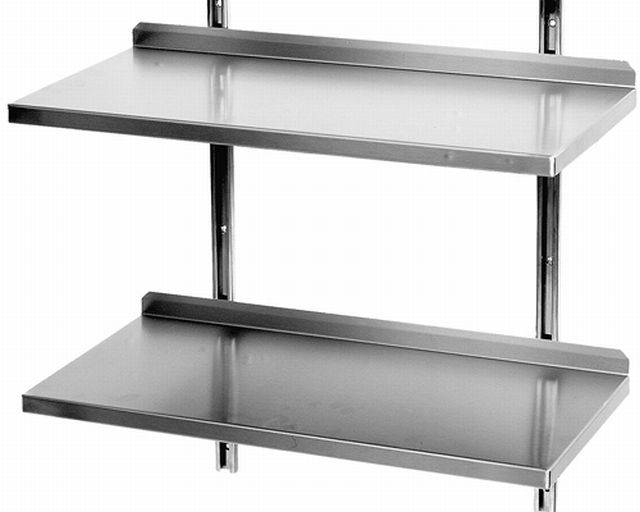

V90 Shelving System is a three-part system of shelves, uprights and brackets, designed to create a good-looking and hygienic installation. The uprights allow simple 'stepless' adjustment of shelf positions whenever it is required.
Features and benefits:
- Low maintenance, hygienic and very durable.
- Material: 1 mm thick brushed satin stainless steel; Grade: EN 1.4301.
- Uprights fixed to wall with C-section.
- Brackets clamped to upright with single bolt (stepless, unslotted linear adjustment).
- All individual components are available separately to allow use with other materials, e.g. glass shelves.
- Uprights: Spacing interval: 800–1200 mm centres (approximately 1000 mm centres is recommended).
General information
Color | Silver |
Finish | Satin Brushed |
Material | Stainless steel Steel |
Shape | Rectangle |
Length | Bespoke Guidance for specification option: Up to 4000 mm. |
Width | 200 mm 300 mm 400 mm 500 mm |
Height | 400 mm 600 mm 800 mm 1000 mm 1500 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N10/160 Shelving systems N11/370 Shelving N13/449 Shelves N10/30 Shelving systems N10/10 Purpose-made N10/110 Purpose-made N11/380 Purpose-made units |
Product range |
Specification data - Shelf units
Form | Freestanding. |
Dimensions | |
Length | 4000 mm (maximum).Guidance for specification option: Bespoke length up to 4000 mm, insert requirement. As drawing. |
Height | As drawing.Guidance for specification option: Insert requirement. 400 mm.600 mm.800 mm.1000 mm.1500 mm.1800 mm.2000 mm.Manufacturer guidanceUprights. |
Depth | As drawing.Guidance for specification option: Choice of four widths and special sizes made to order, insert requirement. 200 mm.300 mm.400 mm.500 mm. |
Shelf spacing | Adjustable.Guidance for specification option: Spacing interval: 800–1200 mm centres (approximately 1000 mm centres is recommended). |
Materials | |
Carcass or frame | 1 mm thick stainless steel, grade EN 1.4301. |
Shelves | Solid, 1 mm thick stainless steel, grade EN 1.4301.Guidance for specification option: As standard. Perforated, 1 mm thick stainless steel, grade EN 1.4301. |
Finish | Brushed satin. |
Brackets | As drawing. Guidance for specification option: Insert requirement. 170 mm. Guidance for specification option: For 200 mm shelf. 270 mm. Guidance for specification option: For 300 mm shelf. 370 mm. Guidance for specification option: For 400 mm shelf. 470 mm. Guidance for specification option: For 500 mm shelf. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |

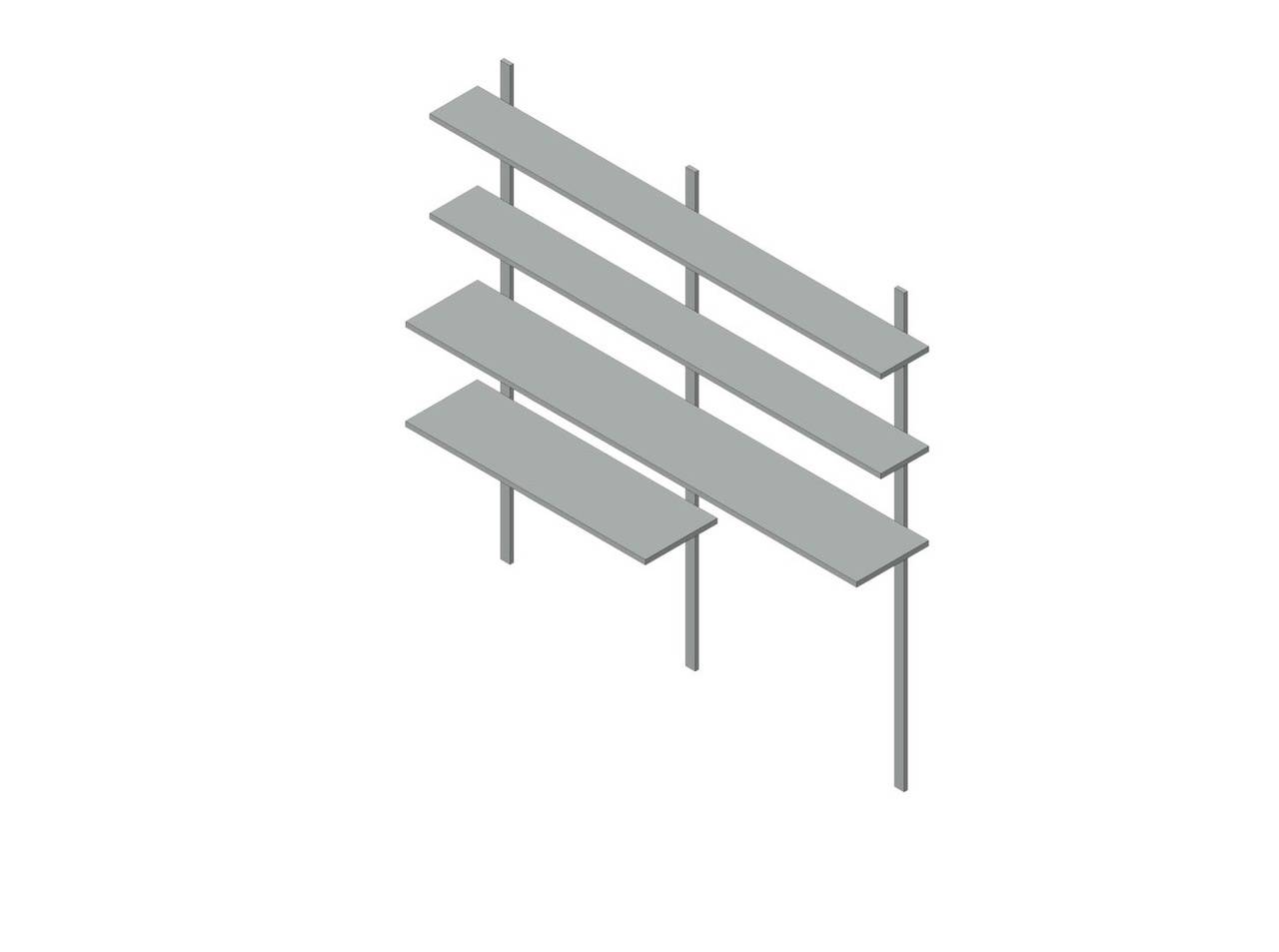

BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2017 | 1 |
 IFC | - | 1 |
