V55 Gypsum Separator - Dirt Separator

Verified by manufacturer 6 months ago

Anderson, GEC Ltd

Stainless steel gypsum separator.

Jump to:
+44 (0)1442 826999 Website

Application

Suitable for all sinks in public, commercial, industrial, domestic and anti-vandal environments.

Description

Stainless steel gypsum separator providing highly effective separation of finer residues and also heavier metals.


Features and benefits:

  • Low maintenance, hygienic and very durable.
  • 300 mm diameter x 390 mm high.
  • Stainless steel sediment trap with 38 mm diameter threaded top inlet and reversible 38 mm diameter threaded side outlet.
  • 13 litre removable quick-release container with drain valve and handle for easy disposal of solids.
  • For use with all sinks.
  • Cantilever brackets for wall mounting.
  • EN 1.4301 stainless steel.

General information

Color

Silver

Finish

Satin

Brushed

Material

Stainless steel

Steel

Shape

Circle

Length

300 mm

Guidance for specification option:

Diameter.

Width

300 mm

Guidance for specification option:

Diameter.

Height

390 mm

Warranty description

Five year

Uniclass

Pr_65_55_76_22 Dirt separatorsPrimary

CAWS

N11/80 Installing sinks, taps and wastes

N12/650 Installing sinks, taps, traps and wastes

N11/350 Sinks, taps, traps and wastes

N11/650 Installing sinks, taps and wastes

N12/380 Sinks, taps, traps and wastes

N12/650 Installing sinks, taps, traps and wastes

N16/350 Traps

N12/380 Sinks, taps, traps and wastes

N11/30 Sinks, taps, traps and wastes

Product range

Sanitaryware / Sediment Traps

Specification data - Dirt separators

Arrangement

13 L removable quick-release container with drain valve and handle.

Material

Brushed satin stainless steel to EN 1.4301.

Connections

Threaded, 38 mm, top inlet and left hand side outlet.

Threaded, 38 mm, top inlet and right hand side outlet.

Diameter

300 mm.

Height:

390 mm.

Integral accessories

Cantilever brackets for wall mounting.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Literature

Stainless Steel Sanitaryware - A Comprehensive and Economic Range of Safe, Highly Durable, Hygienic Sanitary Appliances, Including WCs, Basins, Urinals, Mirrors, Baths and Bins

Stainless Steel Sanitaryware - A Comprehensive and Economic Range of Safe, Highly Durable, Hygienic Sanitary Appliances, Including WCs, Basins, Urinals, Mirrors, Baths and Bins

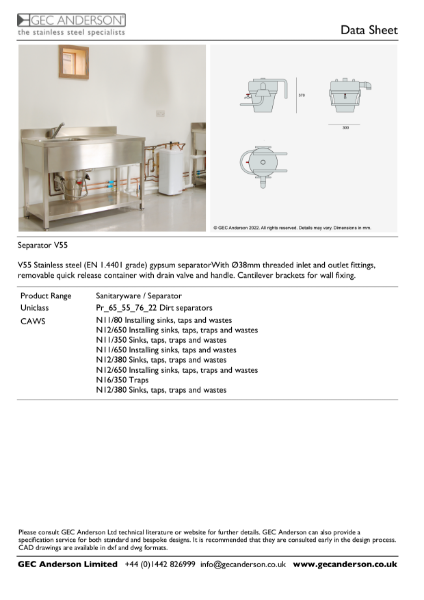

GEC Anderson Data Sheet - Separator V55

GEC Anderson Data Sheet - Separator V55

Case studies

Bernard Leach Pottery Studio, St Ives

Bernard Leach Pottery Studio, St Ives
