V301 Wall Mounted Trough Urinal - Stainless Steel Urinals
Verified by manufacturer 29 days ago
Wall mounted stainless steel trough urinal.
Application
Designed for applications including public, commercial, industrial, domestic and anti-vandal environments.
Suitable for:
Commercial Project
Bathroom
Washroom
Description
Stainless steel wall hung trough urinal.
Features and benefits:
- Triangular splash guards and concealed sparge pipe, with option for exposed sparge pipe.
- Stainless steel concealed fixing strip.
- Low maintenance, hygienic and very durable.
- Brushed satin EN 1.4401 acid-resisting stainless steel.
- Stainless steel concealed fixing strip.
- Supplied ready for plumbing.
- Boxing for corners (eg. for L-shape sections) are available.
Dimensions:
- Standard lengths: 600 mm up to 3000 mm. Special sizes are available to order. 600 mm length per space recommended.
- Depth: 240 mm.
- Height: 431 mm.
Connections:
- 38 mm diameter outlet (125 mm from LH or RH side), to be specified.
- 25 mm diameter threaded flush pipe fitting as standard, with option of side or back inlet.
General information
Color | Silver |
Finish | Satin Brushed |
Material | Stainless steel Steel |
Shape | Triangle |
Length | Bespoke Guidance for specification option: 600–3000 mm. |
Width | 240 mm |
Height | 431 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/316 Urinals and flushing valves N13/15 Urinals and cisterns N13/315 Urinals and auto-flushing cisterns |
SKU Code | V301 |
Product range |
Specification data - Wall-hung urinals
Classification data | |
Form | Trough. |
Materials | |
Body | Stainless steel type 1.4401, acid-resisting. |
Finish and colour | Brushed satin. |
Water supply, overflow and waste holes | |
Water supply | Top flush pipe fitting, threaded, 25 mm. Top side inlet, threaded, 25 mm. Top back inlet, threaded, 25 mm. |
Overflow | None. |
Waste | 38 mm diameter outlet, at 125 mm from LHS. 38 mm diameter outlet, at 125 mm from RHS. |
Integral accessories | Triangular splash guards. Concealed sparge pipe. Stainless steel concealed fixing strip. |
Accessories | Not required. Boxing for corners. Exposed sparge pipe. |
Size: | 600 x 240 x 431 mm (minimum). Guidance for specification option:
|
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
Literature
Literature type
GEC Anderson Combined Product Literature- The Complete Range Overview with Detailed Specification Data, Examples, Applications, History & Insight into GEC Anderson Stainless Steel

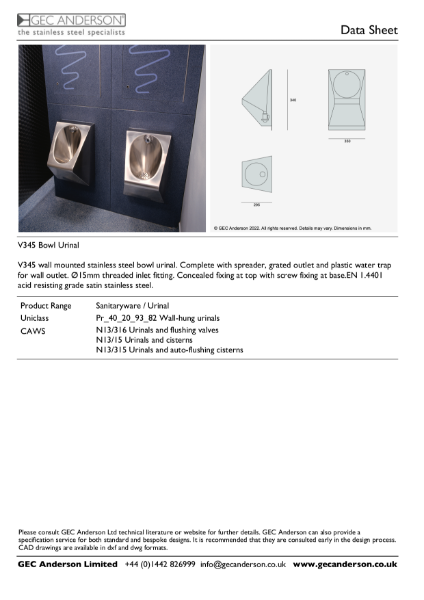

GEC Anderson Data Sheet - V345 Bowl Urinal
