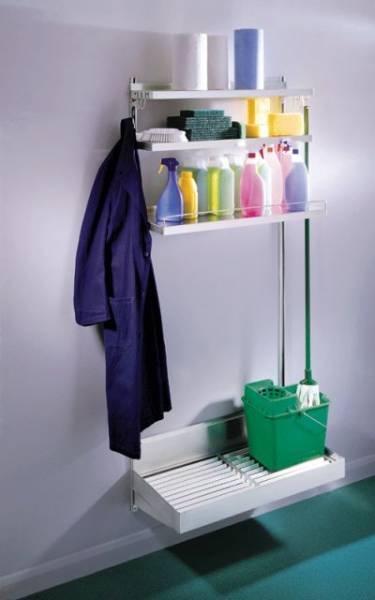

V114 StorTidy

Description

V114 StorTidy is a modular unit based on GEC Anderson’s V90 shelving components. Each complete set is a hygienic, versatile and adaptable unit for open-storage situations and needs.


Components/ Configuration:

  • Two, 1800 mm high stepless uprights and brackets.
  • Two, 200 mm upper shelves with hooks to top shelf for hanging articles, brushes and mops.
  • 315 mm intermediate shelf and guardrail.
  • V113 Bucket Sink, with removable grating, rear splashguard and 38 mm diameter waste and trap. Dimensions: 450 x 415 mm, or 800 x 415 mm.
  • Non-standard configurations are available to order.

General information

Color

Silver

White

Finish

Satin

Material

Stainless steel

Shape

Rectangular

Uniclass 2015

Pr_40_30_78_77 Shelf unitsPrimary

CAWS

N10/160 Shelving system

N10/30 Shelving system

N11/370 Shelving

Product range

Sanitaryware / StorTidy Sets

Specification data - Shelf units Enhanced data

Form

Wall mounted.

Dimensions

-

Length

450 mm.

800 mm.

Height

415 mm.

Materials

-

Carcass or frame

Stainless steel grade: EN 1.4301.

Finish

Brushed satin.

Product Reference

V114 StorTidy
