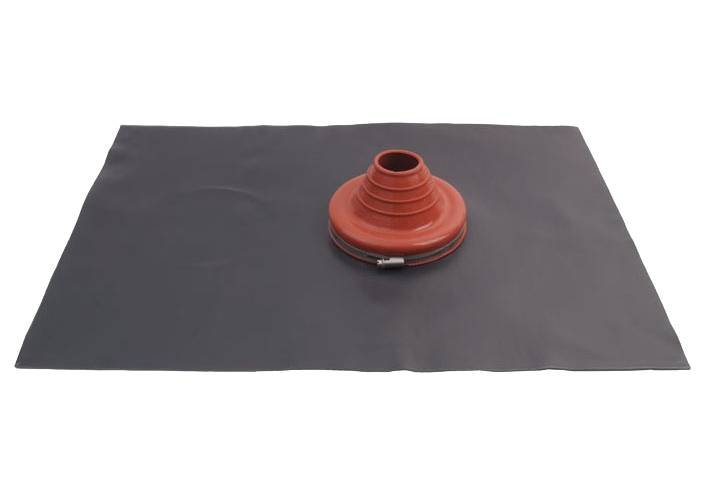

V-Seal® Lead series pipe flashings
Verified by manufacturer 1 month ago
Pipe flashing with Acrylead base for slate and tile roofs
Application
Provides weatherseal for pipes, chimneys, flues, cables and other penetrations through slate and tiled roofs
Description
Features and benefits:
- Large malleable Acrylead base is simply formed to match profile of slates and tiles
- Acrylic primer coating on lead sheet ensures safe handling
- Flexibility - allows for expansion, contraction and building movement
- Simple to fit sleeve marked with pipe diameters
- Life expectancy in excess of 20 years under normal weather conditions
- EPDM version for standard pipes and silicone version for hot pipes
General information
Color | Black Red |
Finish | Ribbed |
Material | EPDM Silicone |
Shape | Circle |
Length | 600 mm 700 mm 850 mm |
Width | Manufacturer guidanceOptions to suit various pipe diameters |
Height | 100 mm 200 mm |
Uniclass | |
CAWS | H71/470 Flashings H71/50 Flashings |
SKU Code | VL- |
Product range |
Specification data - Lead flashings
Classification data | |
Material | Lead. |
Item | Pipe collar. |
Form of delivery | Preformed item. |
Finish | Acrylic primer coating. |
Colour | Grey. |
Texture | Plain. |
Pipe diameter | Manufacturer guidance5–450 mm diameter options available, consult manufacturer and insert details. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | Australia |
Material | EPDM Silicone |
Recyclability | 95% |
