Application

Suitable for:

  • Floors and walls.
  • Use with underfloor heating.
  • Floating floor (manufacturer recommends Ted Todd Universal bond).
  • Secret nail fixing (manufacturer recommends Ted Todd bitumen backed paper for moisture barrier).
  • Structural flooring (maximum 400 mm space between centres).
  • Joists (maximum 400 mm centres).

Description

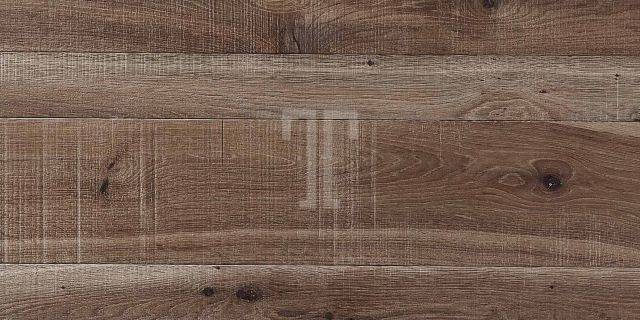

Engineered European oak flooring, designed to be laid in a plank format.

Features and benefits:

  • Part of the URBAN collection; consult manufacturer's literature for other formats.
  • EU Timber Regulation (EUTR) compliant.
  • Can be fully bonded to subfloor (with Ted Todd MS Flex high strength adhesive).

Applications:

Suitable for:

  • Floors and walls.
  • Use with underfloor heating.
  • Floating floor (manufacturer recommends Ted Todd Universal bond).
  • Secret nail fixing (manufacturer recommends Ted Todd bitumen backed paper for moisture barrier).
  • Structural flooring (maximum 400 mm space between centres).
  • Joists (maximum 400 mm centres).

- Can be installed over:

  • Concrete (dry, flat).
  • Plywood.
  • Screed (dry, flat; manufacturer recommends Primerfast moisture barrier).

Related products:

A range of complementary products is available, including formed treads and risers, L-sections, T-sections, reducers, scotia, skirting and architraves. Consult manufacturer for details).

Guarantee:

25-year product warranty.

General information
Uniclass 2015 Wood laminate strips and boards (Pr_25_71_97_93)
Specification data
Product Reference

URBAN Collection - Plank

Type

Brooklyn

Dalston

Gaslamp

Hoxton

Manhattan

Width

80 mm

180 mm

220 mm

Standard product features

Technical characteristics:

  • Length: Random, up to 2.20 m.
  • Thickness: 20 mm.
  • Wood species: European oak.
  • Grade: Nature.
  • Construction: Two ply engineered, 100% hardwood.
  • Wear layer: 6 mm hardwood (nominal).
  • Surface texture: Naked skin lacquer.
  • Surface texture: Sawn.
  • Edge detail: Hand rolled edges.
  • Profile: Tongue and grooved to all sides
  • Certification: FSC Mix Credit.
  • Tolerance: ±0.25 mm/ 95% in tolerance
  • Moisture content: 8–12% fair and average.
  • Slip rating: Dry: Low risk; Wet: Moderate risk.
  • Fire rating to EN 13501-1 (flooring): D fl - s1.
  • Emissions to EN 14342: E1.
  • Humidity requirements: Between 40% and 60% relative humidity.
  • Janka hardness rating: 1120 lbf (4980 N).
  • Formaldehyde emission: E1.
  • Thermal conductivity: 0.10 m²K/W (1.0 Tog).
  • Tonal variation: Medium natural.
  • Batch variation: Not advised to mix batches in one floor area.

Product Options

Tone:

  • Brooklyn: Light.
  • Dalston: White.
  • Gaslamp: Metal.
  • Hoxton: Mid.
  • Manhattan: Dark.
