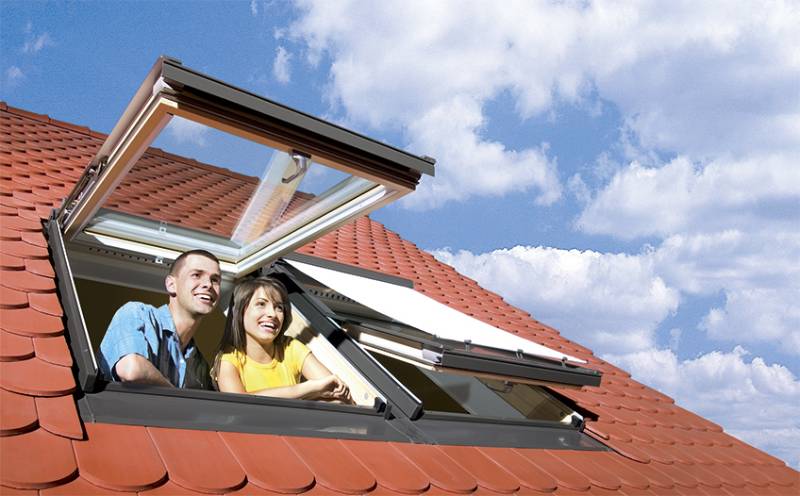

UPVC Top Hung and Centre Pivot preSelect Roof Window (PPP-V)

Verified by manufacturer 2 months ago

Fakro GB Ltd

PVC-U top hung and pivot roof window.

Jump to:
+44 (0)1283 554755 Website

Application

Suitable for roofs of 15–55º pitch (55-75º available please contact Fakro).

Description

Top hung and pivot roof window.


Features and benefits:

  • Manufactured from white, multi-chambered PVC-U profiles with galvanized steel reinforcement.
  • The window can be opened outwards, hinged around the top edge, or rotated around a centre pivot. The opening method is set using the preSelect switch in the frame.
  • V35 air inlet gives air flow of 16–37m³/ hour when the window is closed.
  • 1.4 W/m²K overall (1.0 W/m²K glass).

General information

Color

Brown

Copper

Silver

Other

Finish

Powder-coated

Material

Aluminium

Plastic

Polyvinyl chloride (PVC)

Copper

Shape

Rectangle

Warranty description

Ten year

Guidance for specification option:

For windows.

20 year

Guidance for specification option:

For glazing.

Uniclass

Pr_30_59_98_72 Rigid polyurethane frame roof window unitsPrimary

CAWS

L10/46 Roof windows

L10/480 Roof windows

Specification data - Rigid polyurethane frame roof window units

Frame

-

Finish as delivered

Aluminium, polyester powder coated RAL 7022.

Guidance for specification option:

Brown as standard.

Aluminium, polyester powder coated RAL.

Guidance for specification option:

Insert RAL colour reference.

Copper.

Titanium zinc.

Manufacturer guidance

(External cladding finish):

Glazing or infill

-

Composition

Insulated U3.

Guidance for specification option:

As standard.


  • 4 mm toughened glass outer, 16 mm argon filled cavity, 4 mm toughened glass inner with low e coating facing into cavity.
  • Glazing U-value: 1.0 W/m²K.
  • Whole window U-value: 1.4 W/m²K.

Insulated, L3 laminated glass inner and self cleaning external glass.

Guidance for specification option:

  • 4 mm toughened glass outer, 14 mm argon filled cavity, 6.4 mm external self cleaning glass with laminated glass inner and low e coating facing into cavity.
  • Reduces penetration of UV light by up to 95%.

Insulated, R1 or R2 noise-resistant glass inner.

Guidance for specification option:

  • 4 mm toughened glass outer, 16 mm argon filled cavity, laminated glass inner with sound proofing epoxy resin between the two sheets and low e coating facing into the cavity.
  • Airborne sound reduction, R1: 41.dB; R2: 44 dB.

Insulated, obscured glass outer.

Guidance for specification option:

4 mm toughened glass outer with embossed pattern, 16 mm argon filled cavity, 4 mm toughened glass inner with low e coating facing into cavity.

Insulated, reflective glass outer.

Guidance for specification option:

  • 4 mm reflective toughened glass outer, 16 mm argon filled cavity, 4 mm toughened glass inner with low e coating facing into cavity.
  • Reflective tints: Blue, brown, clear, green, grey.


Insert tint.

Insulated, security glazing.

Guidance for specification option:

4 mm toughened glass outer, 16 mm argon filled cavity, laminated glass inner consisting of two sheets of 4 mm glass with a 1.52 mm layer of PVB (Polyvinylbutyral) between and with low e coating facing into cavity.

Insulated, self cleaning glass.

Guidance for specification option:

4 mm glass outer with self-cleaning coating, 16 mm argon filled cavity, 4 mm toughened glass inner with low e coating facing into cavity.

Insulated, stained glass pane.

Guidance for specification option:

  • 4 mm toughened glass outer, 16 mm argon filled cavity, 4 mm glass inner with resin pattern facing into cavity.
  • The resin pattern consists of an outline which can be filled with translucent coloured resin. Over two hundred standard patterns are available; new designs can be made to customer requirements, or customer's own designs can be used.

Insulated, tinted glass outer.

Guidance for specification option:

  • 4 mm tinted, toughened glass outer, 16 mm argon filled cavity, 4 mm toughened glass inner with low e coating facing into cavity.
  • Tints: Blue, brown, green, grey.


Insert tint.

Insulated, triple glazed.

Guidance for specification option:

4 mm toughened glass outer with low e coating, 10 mm argon filled cavity, 4 mm toughened glass, 10 mm argon filled cavity, 4 mm toughened glass inner with low e coating facing into the cavity.

Operation

-

Type

Electronic with remote control.

Electronic with wall switch.

Manual.

Rain sensor.

Guidance for specification option:

Requires electronic operation.

Smoke ventilation system.

Wind sensor.

Guidance for specification option:

Requires electronic operation.

Accessories

Not required.

Control rod, ZST.

Guidance for specification option:

Manual operation of internal blinds.

Control rod, ZSZ.

Guidance for specification option:

Manual operation of external awning blinds.

Insect screen, AMS.

Guidance for specification option:

Glass fibre netting screen on aluminium runners.

Window lock, ZBL.

Window

02.

Guidance for specification option:

550 x 980 mm.

03.

Guidance for specification option:

660 x 980 mm.

04.

Guidance for specification option:

660 x 1180 mm.

05.

Guidance for specification option:

780 x 980 mm.

06.

Guidance for specification option:

780 x 1180 mm.

Show more

Manufacturer guidance

Size/ Type:

Flashing

EEJ.

Guidance for specification option:

Sheet metal roofing. Please state metal.

EEV.

Guidance for specification option:

Sheet metal roofing. Please state metal.

EFW.

Guidance for specification option:

Flat roof flashing upstand and flashing.

EHA.

Guidance for specification option:

Profiled roof coverings up to 90 mm deep. To suit roof pitch 10-75° raises rear of window 10°.

EHN.

Guidance for specification option:

Profiled roof coverings up to 90 mm deep.

Show more

Manufacturer guidance

Flashings are coded for applications as follows:

– First letter:

E: Single window flashing.

– Second letter:

Denotes the compatible roof covering.

  • E: Sheet metal roofing.
  • H: Profile roof coverings up to 90 mm deep.
  • L: Slates up to 8 mm thick.
  • P: Plain tiles.
  • S: Thin roof covering.
  • Z: Profiled roof covering up to 45 mm deep.

– Third letter:

Denotes the position of the roof window in relation to the roof.

  • A: Roof window up to 10º out of plane of roof. 15–90º pitches.
  • J: Roof window set 30 mm below standard plane. 20–90º pitches.
  • N: Roof window set 30 mm above standard plane. 15–90º pitches.
  • T: Insulated flashing for roof windows set 30 mm above standard plane. 15–90º pitches.
  • V: Roof window at standard plane. 15–90º pitches, except for EPV which is limited to 25–90º pitches.
  • W: Roof window raised 15º out of plane of roof: flat roofs 0–15º pitches.

Specialized flashings are available for horizontal and vertical window groups, mansard junctions and windows installed on either side of the ridge. Consult Fakro for guidance and availability.

Material and finish

Aluminium with polyester varnish, RAL 7022.

Guidance for specification option:

Brown as standard.

Aluminium with polyester varnish, RAL.

Guidance for specification option:

Insert RAL colour reference.

Blind

Not required.

AJP, colour.

Guidance for specification option:

Venetian blind. Insert colour reference.

AJP-B, colour.

Guidance for specification option:

Venetian blind with remote adjustment of angle of slats. Insert colour reference.

AJP-E, colour.

Guidance for specification option:

Venetian blind with electronic operation. Insert colour reference.

AMZ, colour.

Guidance for specification option:

External awning blind with manual operation. Insert colour reference.

Show more

Manufacturer guidance

Consult Fakro for availability of fabrics and to obtain samples. External roller shutters are supplied in dark or light grey.

Other requirements

Not required.

Air-permeable underfelt collar, XDP.

Guidance for specification option:

Collar for sealing the window frame to the roofing underlay.

Airtight flashing, XDS.

Guidance for specification option:

Polyethylene membrane for joining the vapour control layer in the roof construction to the window frame. Supplied with single and double sided adhesive tapes.

Duet slat, XSP.

Guidance for specification option:

  • Lacquered pine finish.
  • Pine slats for internal finishing of junctions between vertically joined roof windows.

Duet slat, XSW.

Guidance for specification option:

  • White finish.
  • Pine slats for internal finishing of junctions between vertically joined roof windows.

Show more

Sustainability data

Contains Red List materials

No

Country of material origin

Poland

Country of product manufacture

Poland

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

99 %
