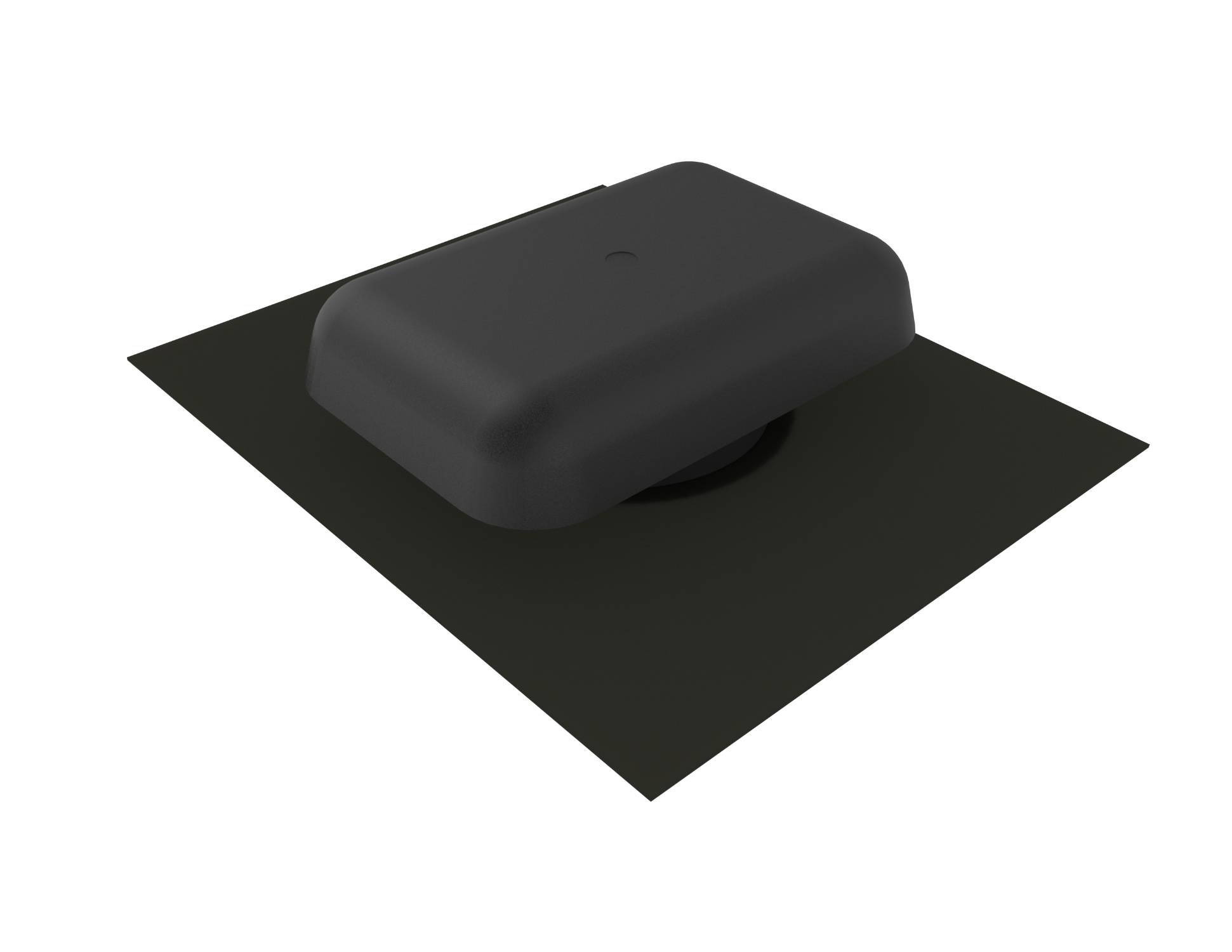

Universal Roof Tile Vent

Verified by manufacturer 3 days ago

RTV-UNITE

Timloc Building Products Variant:

Universal roof tile vent.

Jump to:
+44 (0)1405 765567 Website

Application

  • Suitable for roofs with a minimum pitch of 12.5°.
  • On roofs with any type of tile or slate roof covering.

Description

Universal roof tile vent to enable ventilation directly into a roof space or connect to a ducted ventilation system.

Features and benefits:

  • Suitable for roofs with a minimum pitch of 12.5°.
  • Max free ventilation area of 20,000 mm2 when cut at 170 mm diameter.
  • Max free ventilation area of 16,000 mm2 when cut at 150 diameter.
  • Max free ventilation area of 11,000 mm2 when cut at 125 diameter.
  • Max free ventilation area of 8,400 mm2 when cut at 110 mm diameter.
  • Designed to provide ventilation through all types and profiles of tile or slate.
  • Integrated lead alternative flashing provides a customizable fit.
  • Shaped to manage and channel rainwater back down onto the roof tiles and away from the vent opening.
  • 4 mm spaced external grille to prevent rainwater ingress and keep out large insects, vermin and debris.
  • UV stabilized top for continuous exposure to sunlight.
  • Lightweight and easy to handle.
  • Enables ventilation directly into a roof space.
  • Can be connected to a ducted ventilation system inside the building.

Relevant standards:

  • Independently tested by BRE for deluge and wind driven rain to PD CEN/TR15601:2012
  • BS EN 490:2011 Concrete roofing tiles and fittings for roof covering and wall cladding - product specifications (+A1:2017)
  • BS 5250: 2021 Management of moisture in buildings – Code of practice
  • BS 5534:2014 Slating and tiling for pitched roofs and vertical cladding – code of practice (+A2:2018)
  • Manufactured to BS EN ISO 9001:2015 and BS EN ISO 14001:2015
  • Complies with all relevant sections of the Building Regulations 2010
  • Satisfies all relevant NHBC requirements

General information

Color

Black

Brown

Grey

Red

Orange

Finish

Textured

Material

Polypropylene

Shape

Rectangle

Length

420 mm

Width

235 mm

Height

223 mm

Uniclass

Pr_30_59_29_73 Roof slope ventilator tilesPrimary

CAWS

H65/86 Ventilator tiles

H65/840 Ventilator tiles

H60/86 Ventilator tiles

H60/840 Ventilator tiles

SKU Code

RTV-UNITE, RTV-UNIBR, RTV-UNIBR, RTV-UNIRD, RTV-UNIBL

Specification data - Roof slope ventilator tiles

Purpose

Ventilation directly into a roof space or connect to a ducted ventilation system.

Colour

Terracotta.

Accessories

Not required.
110 mm flexi-pipe.

Guidance for specification option:

RTV-KIT1.

Weight

1.57 kg.

Diameter

110—170 mm.

Free area

8,400—20,000 mm².

Guidance for specification option:

Dependent on diameter.

TileWidth

235 mm.

TileLength

420 mm.

Depth

223 mm.

Surface material

UV stabilized coloured injection moulded Polypropylene.

Surface finish

Textured.

Base

DEKS Fast Flash Self Adhesive Lead Alternative in
Black.

Standards

To BS EN 490:2011, BS 5250:2021, BS 5534:2014, BS EN ISO 9001:2015, BS EN ISO 14001:2015.

Third-party certification

Complies with all relevant Building Regulations 2010, Satisfies all NHBC requirements.

Sustainability data

Material

Polypropylene

BIM objects

Platform Compatible Version
Revit
-

1

Literature

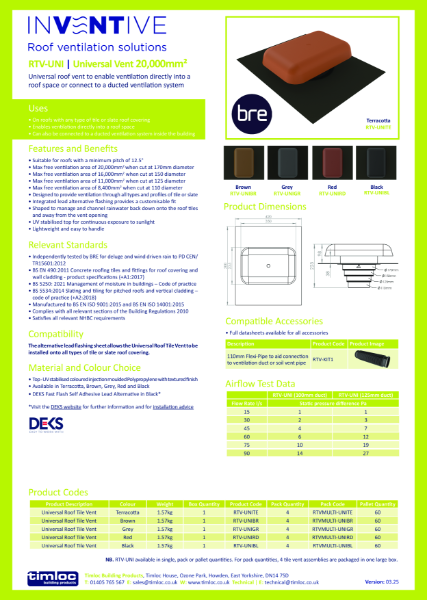

Universal Roof Tile Vent Datasheet

Universal Roof Tile Vent Datasheet

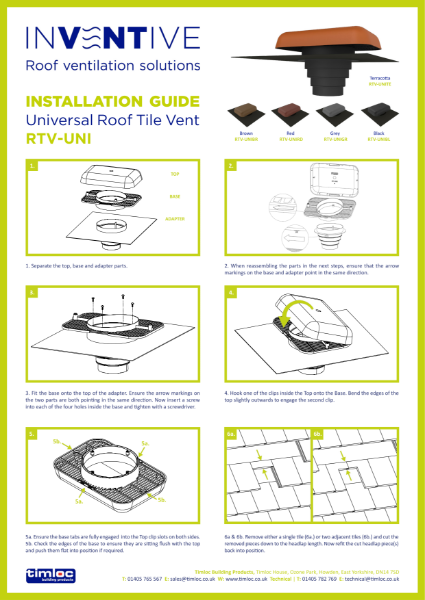

Installation Advice for Universal Roof Tile Vent RTV-UNI

Installation Advice for Universal Roof Tile Vent RTV-UNI
