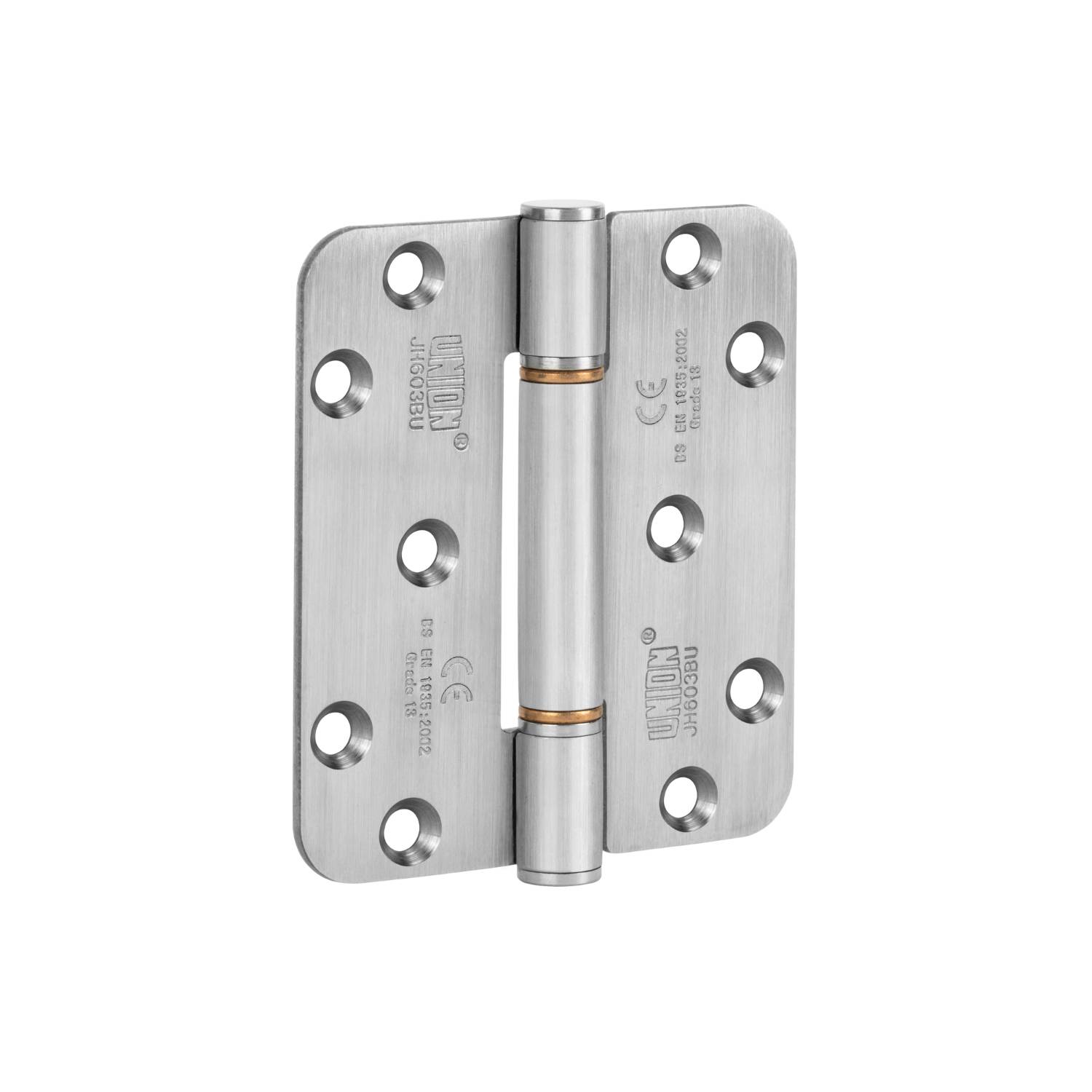

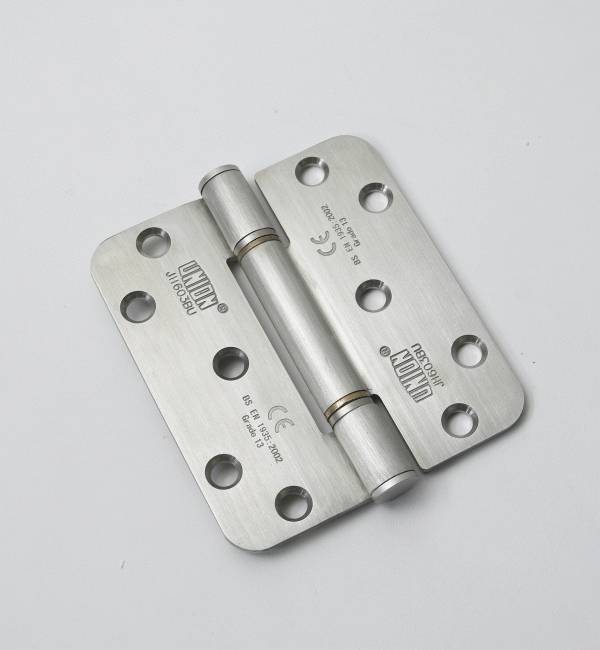

UNION Powerload
Verified by manufacturer 3 months ago
Fixed pin butt and lift-off hinges.
Application
- Suitable for heavy duty applications and for high frequency use
- Lift off design allows easy installation and removal of doors
- Supplied handed where one leaf has a fixed pin and the opposite leaf can be lifted on and off the fixed pin
- Available in half leaf and full leaf
- Half leaf design reduces material removed from door on installation
Description
The UNION PowerLOAD™ 601, 602 and 603 models are fixed pin butt hinges for increased strength and outstanding performance whilst the 604 and 605 models both have a lift-off feature to enable easy removal of the door for maintenance. All offer a 180° angle of opening.
Aesthetically designed, the PowerLOAD™ range is built for exceptionally long life (with a 25 year guarantee), durability and low maintenance.
General information
Color | Silver |
Finish | Zinc plated |
Material | Stainless steel |
Shape | Rectangle |
Warranty description | 25 year |
Uniclass | |
CAWS | P21/310 Single-axis door hinges |
Product range |
Specification data - Single axis door hinges
Product Reference | 601 Butt HingeGuidance for specification option: Tested to BS EN 1935: 2002, grade 13. 160 kg door weight (maximum). 602 Butt HingeGuidance for specification option: Tested to BS EN 1935: 2002, with 20 mm projection. 160 kg door weight (maximum). 603 Butt HingeGuidance for specification option: Tested to BS EN 1935: 2002, grade 13. 120 kg door weight (maximum). 604 Lift-off HingeGuidance for specification option: Tested to BS EN 1935: 2002, grade 11. 80 kg door weight (maximum). 605 Lift-off Hinge, Left HandedGuidance for specification option: Tested to BS EN 1935: 2002, grade 11. 605 Lift-off Hinge, Right HandedGuidance for specification option: Tested to BS EN 1935: 2002, grade 11. |
Type | Radius cornerSquare cornerGuidance for specification option: Not 604 Lift-off hinge. |
Finish | Zinc plated |
Standard product features | Material: 1.4301 (304) stainless steel provides improved corrosion resistance. Bright zinc plate finish in carbon steel variant. |
Sustainability data
Material | Stainless steel |
Literature
PowerLOAD Hinges
