Application

Suitable for:

  • Floors.
  • Use with underfloor heating.
  • Secret nail fixing (manufacturer recommends Ted Todd bitumen backed paper for moisture barrier).
  • Structural flooring (maximum 400 mm space between centres).
  • Joists (maximum 400 mm centres).

Description

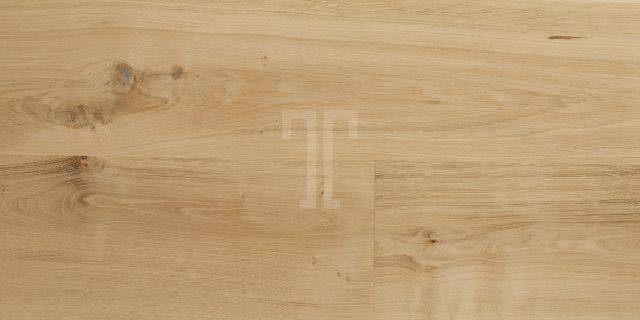

Engineered European oak flooring, designed to be laid in a plank format.

Features and benefits:

  • Part of the UNFINISHED OAKS collection; consult manufacturer's literature for other formats.
  • EU Timber Regulation (EUTR) compliant.
  • Can be fully bonded to subfloor (with Ted Todd MS Flex high strength adhesive

Applications:

Suitable for:

  • Floors.
  • Use with underfloor heating.
  • Secret nail fixing (manufacturer recommends Ted Todd bitumen backed paper for moisture barrier).
  • Structural flooring (maximum 400 mm space between centres).
  • Joists (maximum 400 mm centres).

- Can be installed over:

  • Concrete (dry, flat).
  • Plywood.
  • Screed (dry, flat; manufacturer recommends Primerfast moisture barrier).

Related products:

A range of complementary products is available, including formed treads and risers, L-sections, T-sections, reducers, scotia, skirting and architraves. All related products are supplied unfinished. Consult manufacturer for details.

Guarantee:

25-year product warranty.

General information
Specification data
Product Reference

UNFINISHED OAKS Collection - Plank

Type

Ashridge

Southill

Width

180 mm

220 mm

260 mm

300 mm

Southill only.

Thickness

15 mm

Southill, 180 mm-wide only.

20 mm

Edge detail

Micro bevelled

Square shouldered

180/ 220 mm-wide, 20 mm-thick planks only.

Standard product features

Technical characteristics:

  • Wood species: European oak.
  • Construction: Two ply engineered, 100% hardwood.
  • Wear layer: 6 mm hardwood (nominal).
  • Finish: Unfinished, site preparation required.
  • Surface texture: Smooth.
  • Certification: FSC Mix Credit.
  • Tolerance: ±0.50 mm/ 95% in tolerance.
  • Moisture content: 8–12% fair and average.
  • Fire rating to EN 13501-1 (flooring): D fl - s1.
  • Humidity requirements: Between 40% and 60% relative humidity.
  • Janka hardness rating: 1120 lbf (4980 N).
  • Thermal conductivity: 0.10 m²K/W (1.0 Tog).
  • Batch variation: Mix batches randomly whilst installing.

Product Options

Type:

- Ashbridge:

  • Length: Random, up to 2.20 m.
  • Grade: Prime.
  • Tonal variation: Low natural.

- Southill:

  • Length: Random, up to 2.20 m (300 mm-width up to 3.0 m).
  • Grade: Nature.
  • Tonal variation: Medium natural.
  • Slip rating (15 mm-thick planks only): Dry: Low risk; Wet: Moderate risk.
  • Emissions to EN 14342 (15 mm-thick planks only): E1.
  • Formaldehyde emission (15 mm-thick planks only): E1.
