Application

  • Balconies, podiums, terraces and roof decks.
  • Projects with complex maintenance access requirements such as piping or services.

For lower-height applications, see MicroTerrace™. For applications which require larger height build-up, see UltraTerrace™. For unusual applications, consult manufacturer for details.

Description

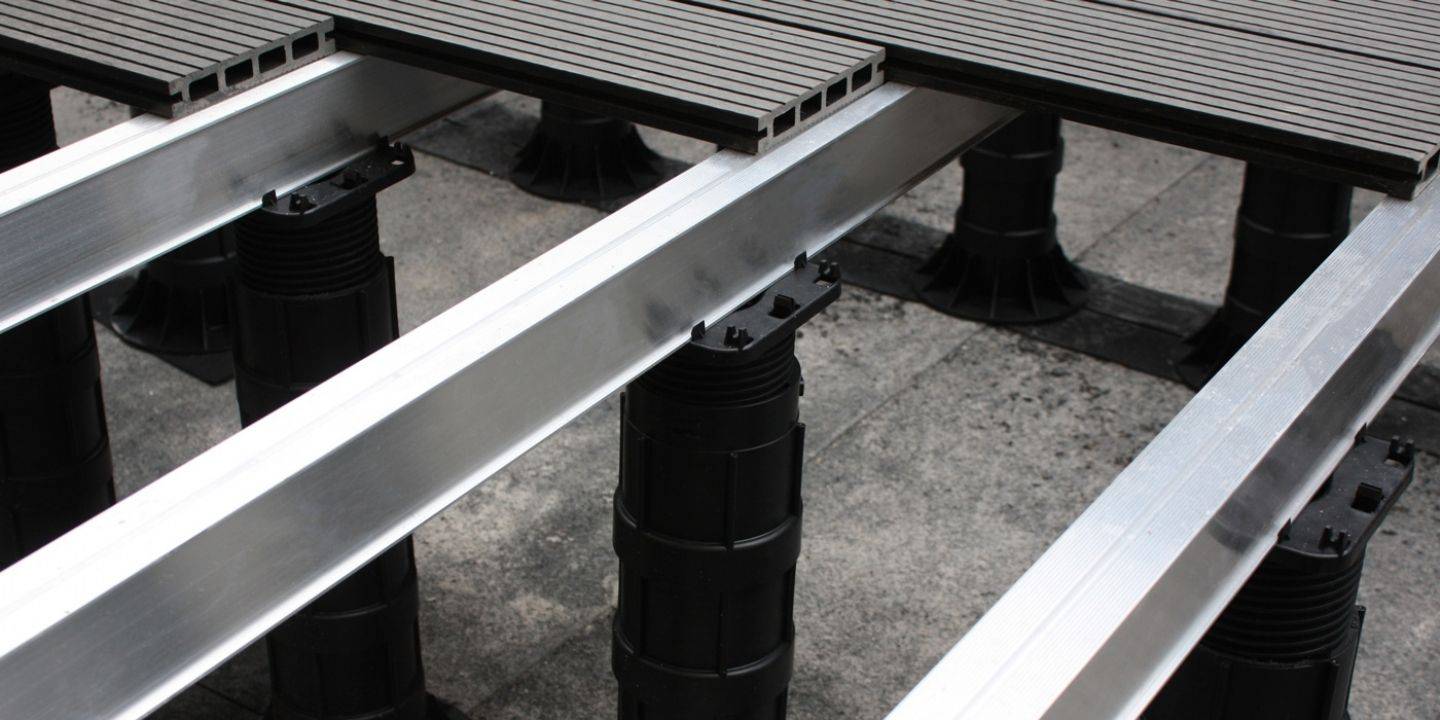

UltraTerrace™ is a premium decking solution which combines composite boards fixed invisibly to aluminium joist, with height adjustable slope-correcting support pedestals. The simple design allows for rapid installation.

Features and benefits:

  • Low-maintenance, non-slip, splinter-proof, FSC® certified decking.
  • Hidden fixing system for decking.
  • Simple to install: Joist clicks into pedestals, no need to secure.
  • Huge compressive strength.
  • Suitable for projects with variable height build-up - supports adjustable from 10 mm to 1 m.
  • Wide supporting base on pedestals spreads load, protecting membranes.

Applications:

  • Balconies, podiums, terraces and roof decks.
  • Projects with complex maintenance access requirements such as piping or services.

For lower-height applications, see MicroTerrace™. For applications which require larger height build-up, see UltraTerrace™. For unusual applications, consult manufacturer for details.

General information
Finish

Interpon D1036 Textura coating ensures scratch-resistance/durability

Color

Powder-coated in any standard RAL colour

Features

High quality board, will not dent easily, resistant to moulds, algae, alkali, bitumen, UV, powdercoated with Interpon D1036 Textura coating for unbeatable slip resistance, excellent scratch and wear resistance, even in areas of high foot-traffic

Material

Aluminium 6063

Shape

Rectangular

Size

800 x 6000 x 25 mm

WarrantyDescription

30 year warranty, 60 year design life

Uniclass 2015 Decking systems (Ss_30_20_30_25)
Specification data
Product Reference

UltraTerrace™

Composite deck board (including all associated fixings and accessories) -
Type

Classic

Signature

Colour/ Finish

Charcoal

Classic.

Chocolate

Classic.

Ebony

Signature.

Mahogany

Signature.

Sand

Classic.

Silver Birch

Signature.

Slate

Classic.

Teak

Signature.

DS72 aluminium joist (including all associated connectors and accessories)

Black powder coated (RAL 9005)

Mill finish

Support

RDC 10-55

Adjustable joist cradle.

RDA-1

40-56 mm self-levelling adjustable pedestal.

RDA-2

50-70 mm self-levelling adjustable pedestal.

RDA-3

70-110 mm self-levelling adjustable pedestal.

RDA-4

110-160 mm self-levelling adjustable pedestal.

RDA-5

150-210 mm self-levelling adjustable pedestal.

RDA-6

200-300 mm self-levelling adjustable pedestal.

RDA-7

300-400 mm self-levelling adjustable pedestal.

RDA-8

400-500 mm self-levelling adjustable pedestal.

RDA-9

500-600 mm self-levelling adjustable pedestal.

RDA-10

600-700 mm self-levelling adjustable pedestal.

RDA-11

700-800 mm self-levelling adjustable pedestal.

RDA-12

800-900 mm self-levelling adjustable pedestal.

RDA-13

900-1000 mm self-levelling adjustable pedestal .

Accessories

Not required

BRSP

3 mm base rubber shock pad.

Standard product features

Height:

  • Total system height: 104–1097 mm.
  • Deck board: Signature: 22 mm; Classic: 25 mm.
  • Joist: 72 mm.
  • Support: 10–1000 mm.

Allowable load:

  • Uniformly distributed: >4.0 kN/m².
  • Concentrated: 1.4 kN.

Length:

  • Board length: 3 m.
  • Joist length: 3.6 m lengths supplied as standard, bespoke and pre-cut lengths available to special order.

Digital objects
PlatformCompatibleVersionCertified to
Revit
- 1 2.1
IFC
- 1 2.1
Download now from NBS National BIM Library
Literature
