Ultraglide Patio Doors

Third party certifications:
  • QA Certificate

    Certificate type

Smart Systems Ltd

High performance aluminium sliding doors for large apertures, both residential and commercial applications.

Jump to:
+44 (0)1934 876100 www.smartsystems.co.uk
Application

Suitable for new and refurbishment projects, both for private residential properties and commercial projects.

Description

Flexible, high performance, contemporary system which features large sash sizes (up to 3 m high), making it ideal for the most demanding applications. Available with a highly efficient thermal break, Ultraglide delivers excellent, long-lasting performance for enhanced comfort and economy.

Ultraglide is the perfect sliding door where large openings are required, with the system maximizing light and space in any area. Available in both single and dual colour formats, with a wide range of standard and non-standard finishes to select from extensive colour palettes, and the option of colour matched accessories, the system can be tailored to meet the specific requirements of each individual project.

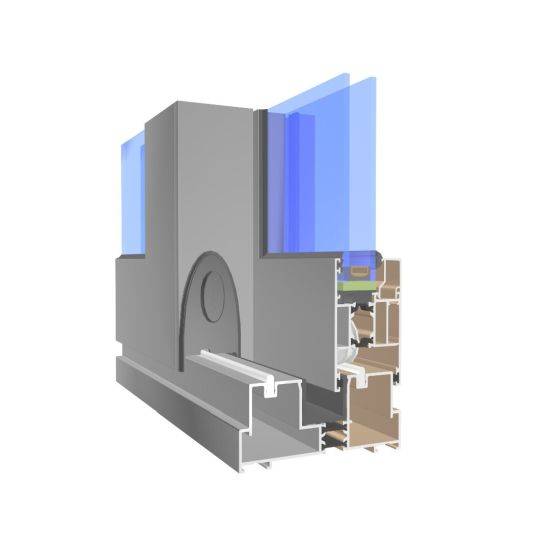

The robust Ultraglide profiles are designed with contemporary styling, featuring attractive square edge sections, while the polyamide thermal break provides excellent thermal performance. Fully compliant with the requirements of Building Regulations (E&W) Document L 2010, Ultraglide doors feature high-security glazing and robust locking mechanisms (including multi-point locks on the main opening sashes). The Kitemarked system fully meets the requirements of PAS 24.

Features and benefits:

  • An enhanced system designed to comply with the revisions to the Building Regulations (E&W), Document L compliant.
  • U-values as low as 1.5 W/m²K (depending on sash size and glazing selected).
  • Sash sizes up to 3 m high, 2.5 m wide.
  • Security tested to PAS 24.
  • Sliding or lift and slide options available.
  • Glazing thickness of 6–53 mm.
  • Monorail option.
  • Single or dual colour finish, marine quality.
  • Large uninterrupted expanse of glass.
  • Open and close in line, rather than encroaching on the room.
  • Multi-pane systems allow up to 75% of the system’s area to be open.
  • British Standard Kitemarked system – KM 530838.

Applications:

Suitable for new and refurbishment projects, both for private residential properties and commercial projects.

General information
Material

Aluminium

Uniclass 2015
Sliding door and partition sets (Pr_30_59_24_80)Primary
Specification data - Sliding door and partition sets
Product Reference

Ultraglide Patio Doors

Third-party certification

British Standard Kitemarked system – KM 530838

Performance

Up to 1.5 W/m²K U-value (when using a 0.7 W/m²K centre pane)

Arrangement

Inline sliding

Lift and slide

Door leaves -
Construction

Manufacturer's standard

Finish and colour

Marine quality powder coat, insert single or dual colour requirement.

Operation

Manual

Hardware

Insert requirement, contact manufacturer for information.

Accessories

Insert requirement, contact manufacturer for information.

Size

As drawing

Insert reference.

As schedule

Insert reference.

Configuration

Three pane

Two pane

Glazing

Insert requirement, available 6–53 mm.

Standard product features

Material:

Aluminium.

Maximum sash weight:

250 kg.

Locking:

Multi-point locks on the main opening sashes.

Thermal break:

Polyamide thermal break.

Security level:

PAS24: 2016.

Air permeability:

Class 3.

Watertightness:

Class 7A.

Resistance to wind load:

Class AE, 2400 Pa.

Product Options

Doorset size:

Sash available up to 2500 x 3000 mm (w x h, Kitemark applies to sash heights up to 2400 mm).

Third party certifications
  • Kitemark: Certificate: KM 530838
