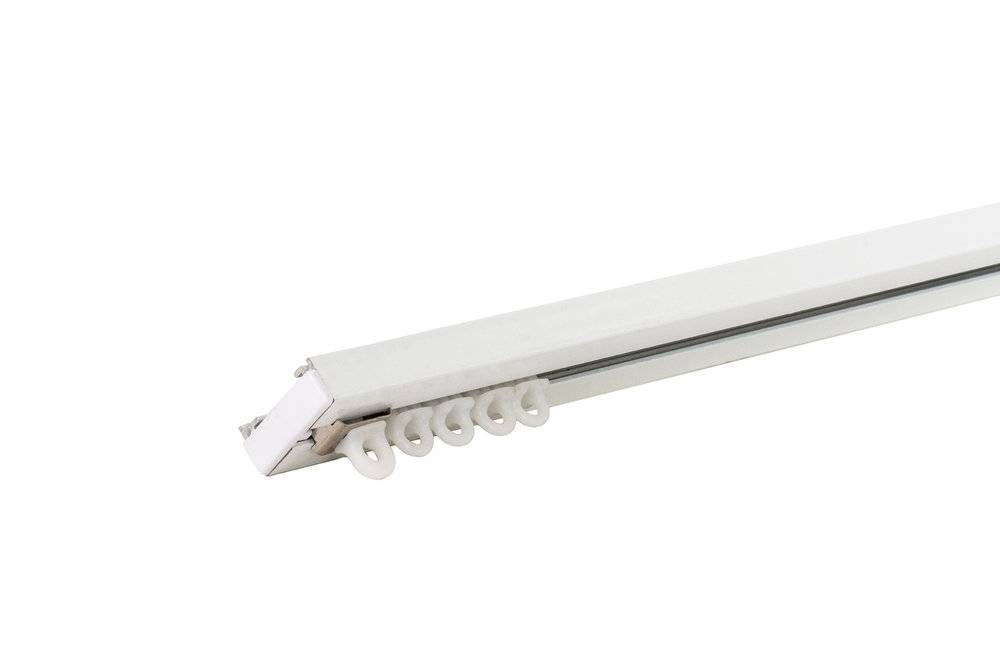

Ultraflat Curtain Track System
Verified by manufacturer 14 days ago
Ultra-flat 12 mm profile track, with hand-drawn or corded operation.
Application
Suitable for all curtains. Ceiling fix with metal swivel clamps.
May be wall fixed with smart face fix brackets.
Description
Ultraflat curtain track system. Suitable for all curtains.
Features and benefits:
- Unique 12 mm ultra-flat profile.
- Registered design.
- Designed to fit subtly onto the ceiling.
- May be wall fixed with smart face fix brackets.
- 8 mm profile also available for special applications.
- Hand or Cord Operation.
- Option of standard or Ripple gliders.
- 60/ 80 mm Ripple spacing.
- Suitable for bay windows.
- Angle bend - 15 cm radius.
- Curved bend - any large radius.
General information
Color | White Other Guidance for specification option: This track and channel can be painted to any RAL colour (though the standard is white). |
Finish | Powder-coated |
Material | Aluminium |
Length | Bespoke |
Width | 25 mm |
Height | 12 mm |
Uniclass | |
CAWS | N10/60 Curtain supports N10/230 Curtain supports |
Specification data - Window curtain supports
Support | Curtain tracks. |
Overall length | Guidance for specification option: Insert requirement. The track is made-to-measure. The maximum continuous length is 6 metres but the tracks can also be joined. |
Colour | White. |
Operation | Hand-drawn.Corded.Ripple hand-drawn.Ripple corded. |
Integral accessories | Standard gliders.Ripple gliders. |
Bends | Not required. 15 cm radius. |
Fixing: | Ceiling fix with swivel brackets. Face fix end bracket. Face fix centre bracket. |
Literature
UTS2512 Ultraflat Track System Specification Guide
