Curtain Track System
Verified by manufacturer 6 months ago

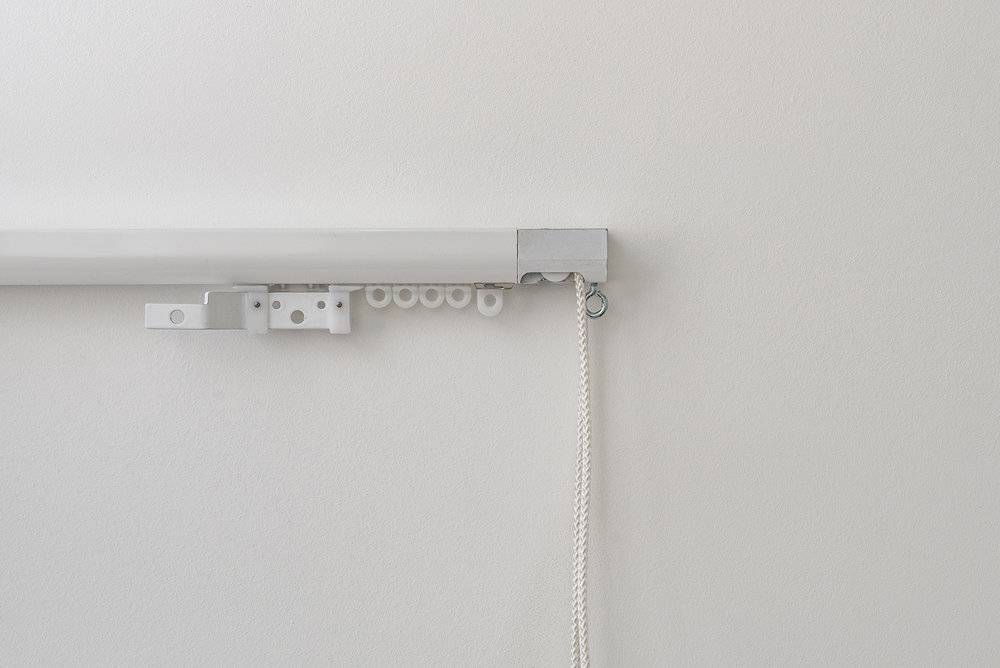

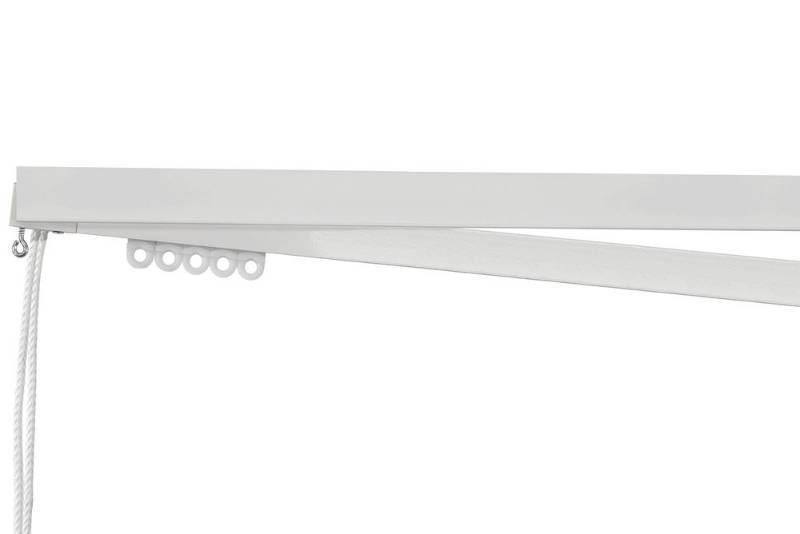

Curtain track system with attractive curved profile to achieve maximum efficiency when pulling curtains with a stand-up heading.
Application
Suitable for all curtains. Designed to fit discretely onto the ceiling. May be wall fixed with smart face fix brackets.
Description
Curtain track system. Suitable for all curtains.
Features and benefits:
- Designed to fit discretely onto the ceiling.
- May be wall fixed with smart face fix brackets.
- Hand or Cord operation.
- Option of standard or Ripple gliders.
- 60/ 80 mm Ripple spacing.
- Strong aluminium pulley set for medium/heavy weight curtains.
- Suitable for bay windows.
- Angle bend - 20 cm radius.
- Curved bend - any large radius.
General information
Color | White Other Guidance for specification option: This track and channel can be painted to any RAL colour (though the standard is white). |
Finish | Powder-coated |
Material | Aluminium |
Length | Bespoke |
Width | 23 mm |
Height | 21 mm |
Uniclass | |
CAWS | N10/60 Curtain supports N10/230 Curtain supports |
Specification data - Window curtain supports
Support | Curtain tracks. |
Overall length | Guidance for specification option: Insert requirement. The track is made-to-measure. The maximum continuous length is 6 metres but the tracks can also be joined. |
Colour | White. |
Operation | Hand-drawn.Corded.Ripple hand-drawn.Ripple corded. |
Integral accessories | Standard gliders.Ripple gliders. |
Bends | Not required. 20 cm radius. |
Fixing: | Ceiling fix with swivel brackets. Face fix end bracket. Face fix centre bracket. |
Literature

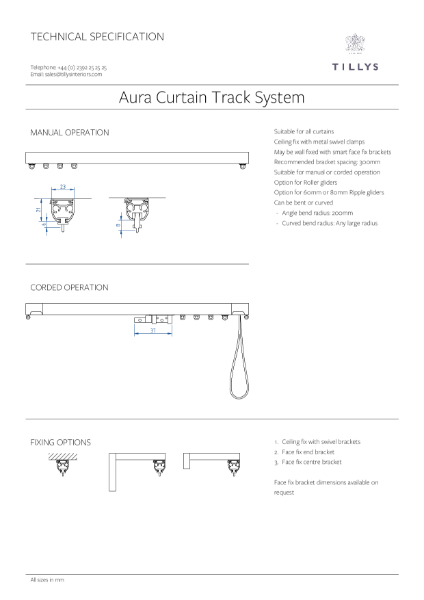

CTS38 Specification Guide
Curtain Track And Blind Brochure - Aura by Tillys
