Type SP Square

Description

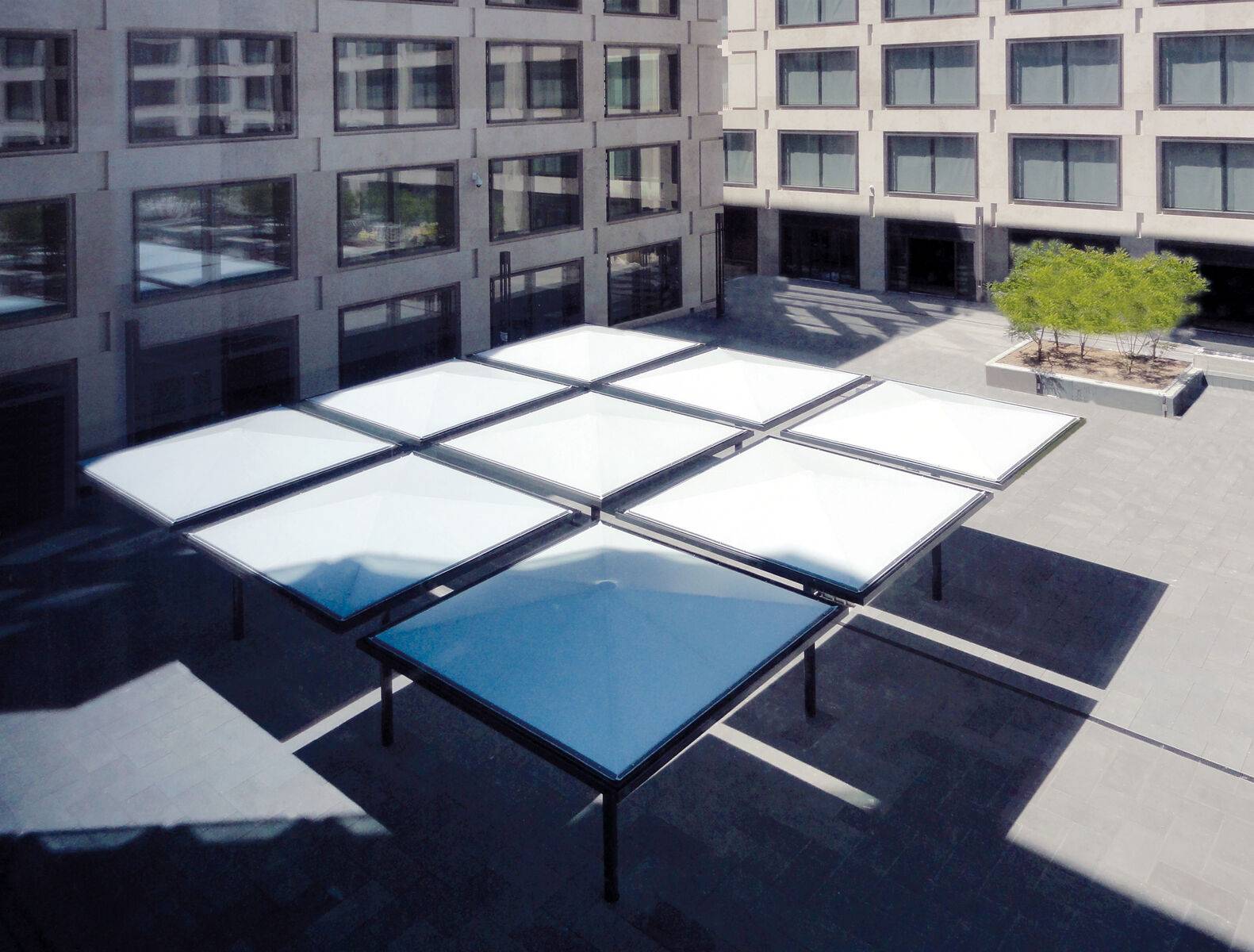

Square, non-closing umbrella parasol with a double membrane, for permanent installation.

Features and benefits:

  • Adhesive bonding technology secures the polyvinyl chloride (PVC) cover and ensures high durability.
  • The cover is coated with polyvinylidene difluoride (PVDF) paint, which is highly translucent.
  • Can be disassembled (however the structure cannot be closed).
  • Roofing sheets are fade, light and water resistant.
  • Designed to withstand all weather conditions.

General information

Color

Various options available, consult manufacturer

Features

Capable of withstanding snow loads, for permanent installation

Finish

Polyester powder-coated (PPC) 80 μm

Material

Structural steel frame, PVC covering

Shape

Square

Size

3700 x 3700 x 3310 mm

4000 x 4000 x 3310 mm

6000 x 6000 x 3560 mm

5000 x 5000 x 3460 mm

Uniclass 2015

Pr_20_65_78_58 Open sided sheltersPrimary

CAWS

B91/385 Shelter

Specification data - Open sided shelters

Product Reference

Type SP Square 3.7 x 3.7 m

Height: 3310 mm.

Type SP Square 4 x 4 m

Height: 3310 mm.

Type SP Square 5 x 5 m

Height: 3460 mm.

Type SP Square 6 x 6 m

Height: 3560 mm.

Shelter description

Square, non-closing, with double membrane

Dimensions

-

Plan size

As product reference

Height

As product reference

Frame

-

FrameMaterial

Structural steel

Frame finish

Polyester powder-coated (PPC) 80 μm

Colour

White RAL 9010

Standard.

RAL colours

Insert requirement.

Roof covering

MDT-tex® 680 (PVC)

Integral services

Consult manufacturer

Rainwater drainage

Continuous rain gutter with run off

Accessories

Consult manufacturer

Roof covering colour options

Various. Consult manufacturer.

Wind resistance

Up to 120 km/h

Printing options

Not required

Digital

Dispersion dye

Screen

Spokes construction

Steel

Construction

Round aluminium section with diameter up to 150 mm

Distance (spokes to ground)

3.7 x 3.7 m and 4 x 4 m: 2870 mm; 5 x 5 m: 3020 mm; 6 x 6 m: 3120 mm

Anchoring

Foldable adapter with base plate already integrated

Snow load

Up to 90 kg/m² to DIN 1055

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.1
Revit
-

1

2.1
Download now from NBS National BIM Library
