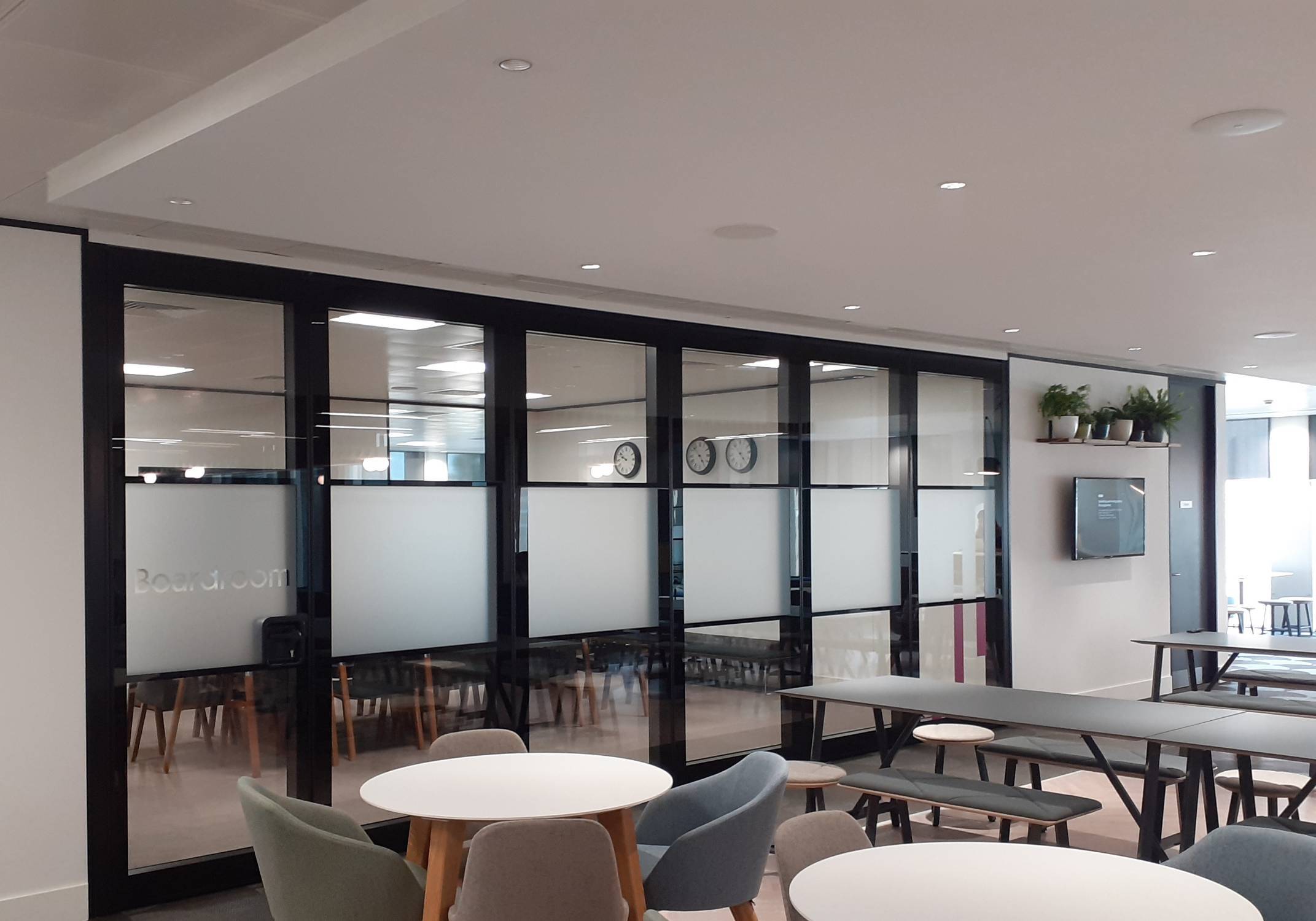

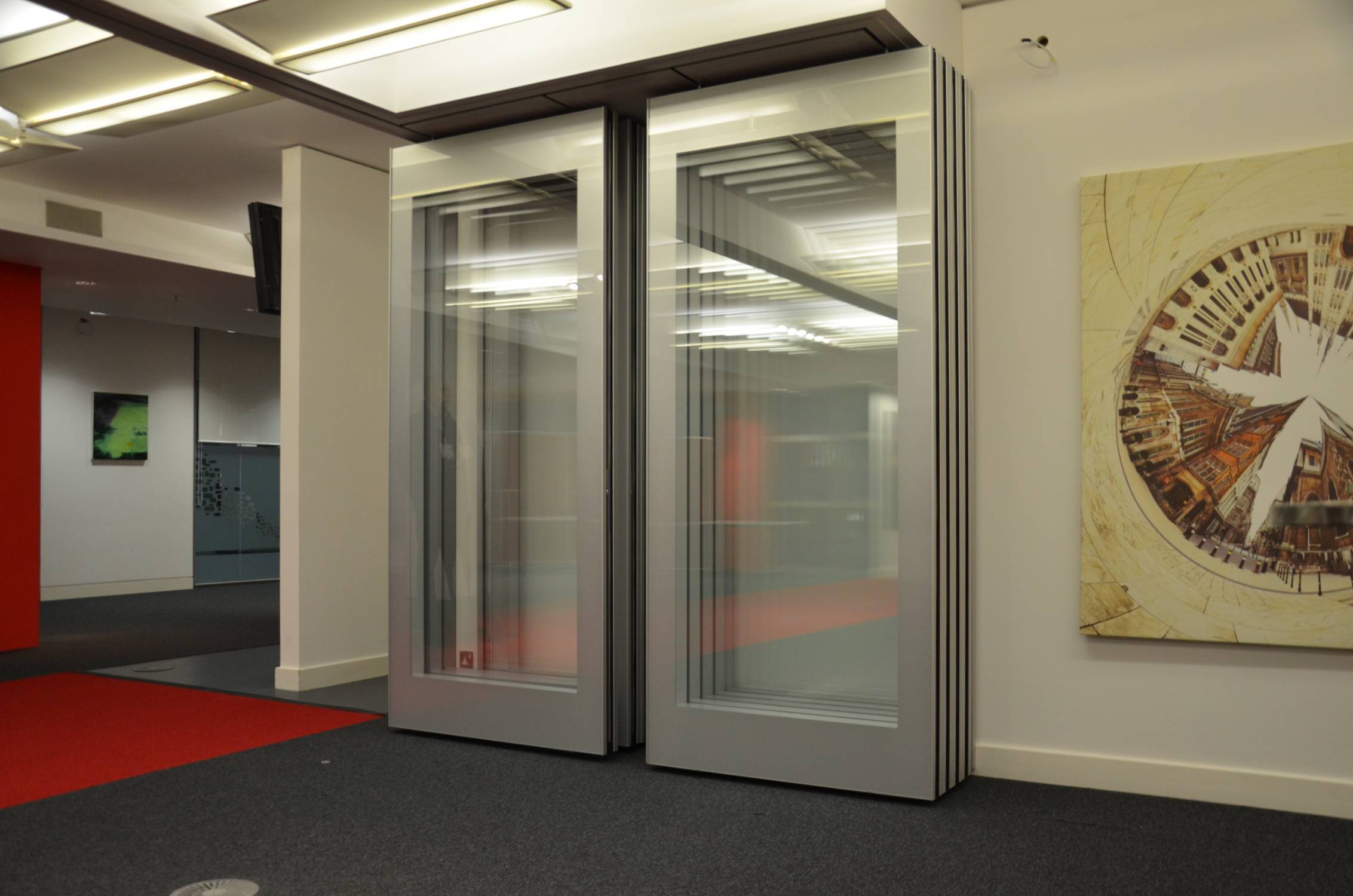

Type RG Plus glazed acoustic movable wall

Verified by manufacturer 28 days ago

Movawall Systems Ltd Product certifications:
  • EPD

    EPD

    Certificate type

Framed acoustic glazed movable wall.

Jump to:
Request BIM
+44 (0)20 8391 8790 Website

Application

Suitable for internal use.

Description

Framed glass sliding stacking panel partition system.


Features and benefits:

  • Individually operated, top hung, aluminium framed glass panels, purpose made to suit any opening size.
  • Retractable top and bottom seals with telescopic jamb seals, all operated by removable crank handle.
  • Mechanically operated by worm screw drive.
  • Optional semi-electric operation
  • No floor track.
  • Height maximum: 4 m.


Acoustic performance:

  • Can be used to limit noise transmission between rooms.
  • Sound reduction ratings of either Rw 46 dB (laboratory tested) or Rw 50 dB (laboratory tested).

General information

Color

-

Manufacturer guidance

Aluminium frame powder coated to any standard RAL colour choice

Finish

Powder-coated

Guidance for specification option:

Powder coated to any standard RAL colour choice

Material

Glass

Steel

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Two year

Uniclass

Pr_25_71_57_80 Sliding stacking panel partitionsPrimary

CAWS

L20/545 Sliding stacking panel partitions

SKU Code

Type RG Plus

Specification data - Sliding stacking panel partitions

Classification data

Performance

Sound reduction Rw 46 dB (laboratory tested).
Sound reduction Rw 50 dB (laboratory tested).

Manufacturer guidance

  • Can be used to limit noise transmission between rooms.
  • Insulation typically related to panel weight.
  • Average achieved site insulation typically less than laboratory conditions.

Operation

M – Manual.
SE – Semi electric.

Guidance for specification option:

Semi electric available with slimmer frame; consult manufacturer for details.

Dimensions (nominal)

-

Panel (average)

-

Width

Guidance for specification option:

Up to 1200 mm (maximum). Insert requirements.

Height

Guidance for specification option:

Up to 4000 mm (maximum). Insert requirements.

Thickness

103 mm.

Panels

-

Construction

NE (Standard panel).
TE (Telescopic element).
SE1 (Single inset pass door).
SE2 (Double inset pass door).
EE (Corner / junction panel).
DT (Full height hinged pass door).

Manufacturer guidance

  • Faceted layouts, corner panels, glazed pass door available.
  • Panels and wall jambs have interconnecting profiles.
  • Can be used in conjunction with Type 100 panels.

Finish as delivered

Double glazed.

Panel Type

Guidance for specification option:

Project specific, consult manufacturer and insert requirements.

Manufacturer guidance

Panel type and number.

Track layout

TL 1 ‘E’ system.

Guidance for specification option:

  • Straight runs only, panels stacked within opening.
  • Single track, single point suspension.

TL 2 ‘Za’ system.

Guidance for specification option:

  • Straight runs only.
  • Twin point guide roller suspension.
  • System, minimal panel stack.

TL 3 ‘Zb’ system.

Guidance for specification option:

  • Straight runs only.
  • Twin point guide roller suspension.
  • Panels stacked within opening to left or right of track.

TL 4 ‘K’ system.

Guidance for specification option:

Consult manufacturer for details.

TL 5 ‘K’ system.

Guidance for specification option:

For 90° movement of panels away from main track, twin point cross roller suspension.

TL 6 ‘K’ system.

Guidance for specification option:

  • For 90° movement of panels away from main track, twin point cross roller suspension.
  • Stacked behind reveal.

TL 7 ‘K’ system.

Guidance for specification option:

  • For 90° movement of panels away from main track, twin point cross roller suspension.
  • Stacked inside wall recess.

TL 8 ‘K’ system.

Guidance for specification option:

  • For 90° movement of panels away from main track, twin point cross roller suspension.
  • Stacked in branches to one or both sides.

Partition assembly

As per manufacturer drawings SL – 111 and SL – 112.

Edges

Powder-coated, RAL.

Guidance for specification option:

Insert requirement.

Panel stacking arrangement

Bi-parting.
Double stack.
Single stack.

Ceiling angle trim

Not required.
Flush with underside of ceiling.

Guidance for specification option:

Two point suspension only.

Exposed 20 mm from underside of ceiling.

Guidance for specification option:

Single point suspension only.

Manufacturer guidance

Ceiling track profile:

  • Selection of material and profile by manufacturer, dependent on panel weight and other parameters. Consult manufacturer to confirm size.
  • Ceiling angle trim allows support of suspended ceiling edge.
  • 20 mm exposed angle trim required to avoid partition panels fouling ceiling when using TL 1 ‘E’ system single point suspension.

Track finish

White.

Guidance for specification option:

Standard.

RAL.

Guidance for specification option:

Special order; insert requirement.

Structure

Guidance for specification option:

Project specific, consult manufacturer and insert requirements.

Manufacturer guidance

Type of structure supporting the weight of the folding wall above the head track.

Jambs

Standard: Width 80 mm.
Telescopic jamb extended to 350 mm.

Barriers in ceiling void

Required.
Not required.

Baffle

Required.
Not required.

Vision panels

Required.
Not required.
As drawing.

Sustainability data

Contains Red List materials

No

Country of material origin

Netherlands

Country of product manufacture

Netherlands

Material

Glass
Steel

Recyclability

Metal parts can be separated and directed to material recycling. Theoretically, particle board can also be recycled by directing the panels to new production

Product certifications

Product certifications

EPD

EPD

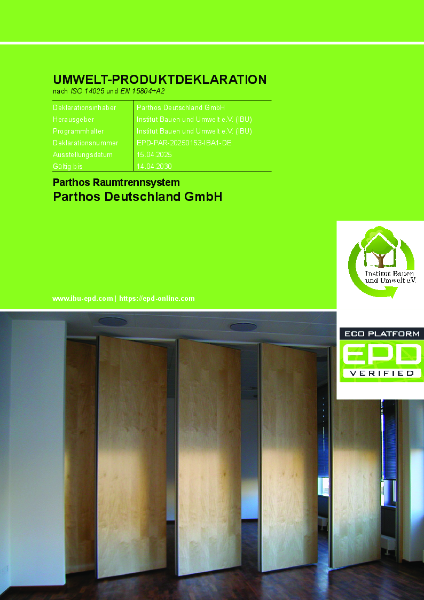

Parthos EPD

Literature

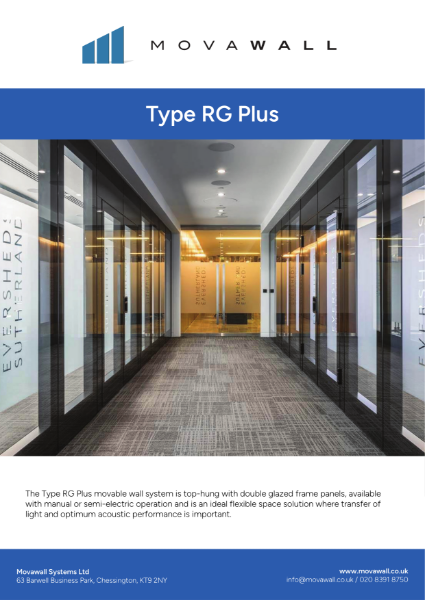

Type RG Plus

Type RG Plus

Similar products from Movawall Systems Ltd

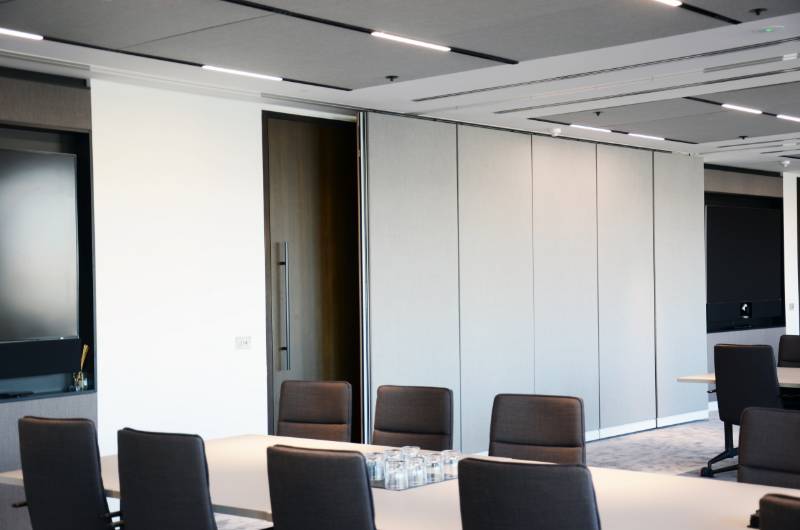

Type 100 movable acoustic wall

Type 100 movable acoustic wall

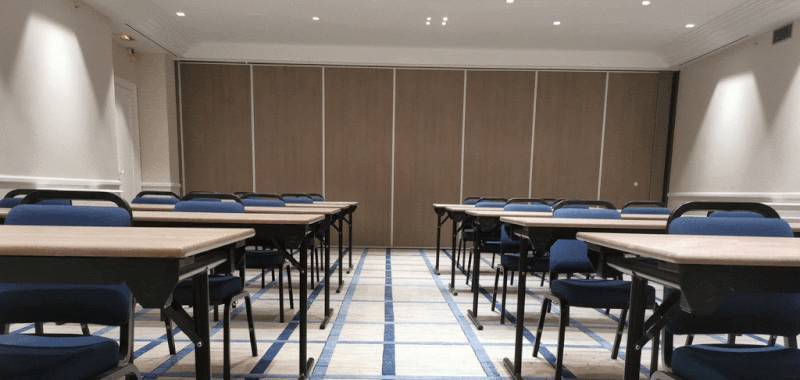

Type 80 movable acoustic wall

Type 80 movable acoustic wall

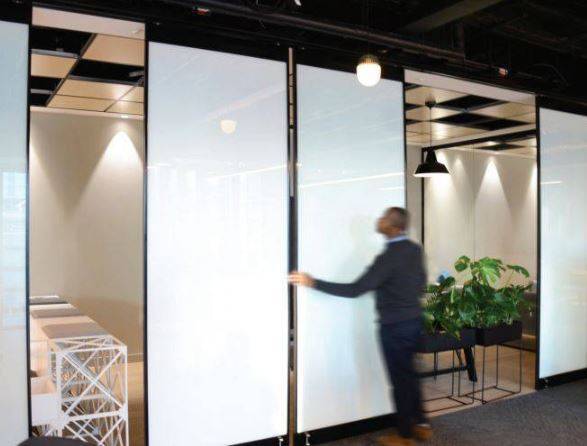

Type Float - Gliding Wall Panels

Type Float - Gliding Wall Panels

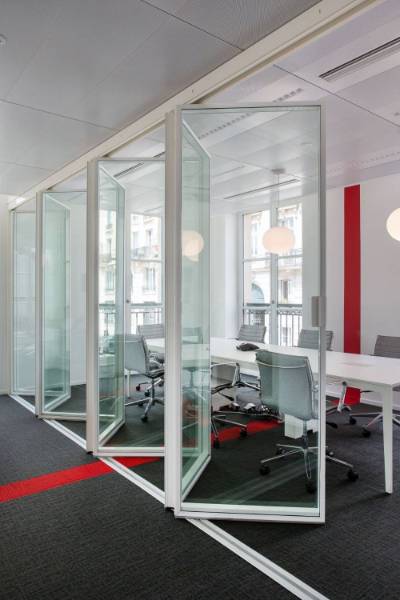

Type G200 framed glass sliding partition

Type G200 framed glass sliding partition

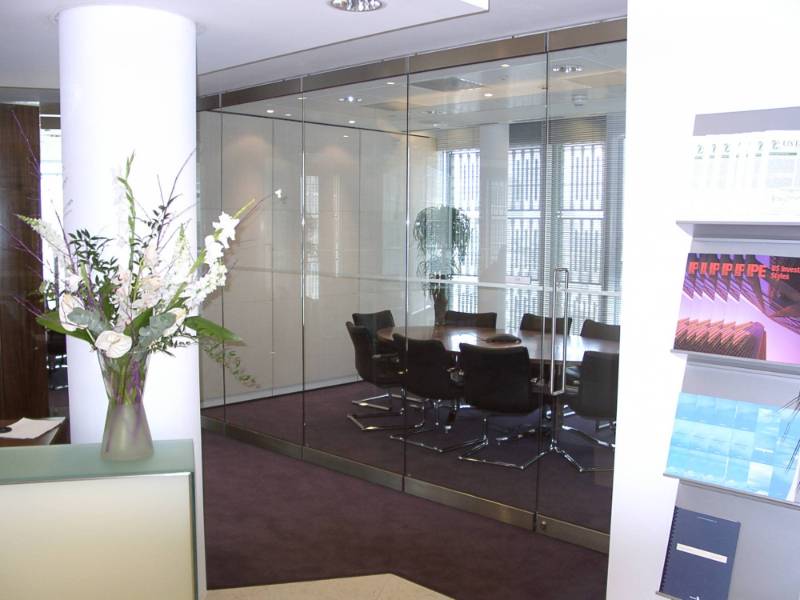

Type GG / GG Plus glazed movable wall

Type GG / GG Plus glazed movable wall

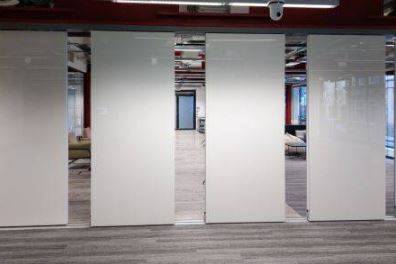

Type Slide - Sliding Wall Partitions
