Description

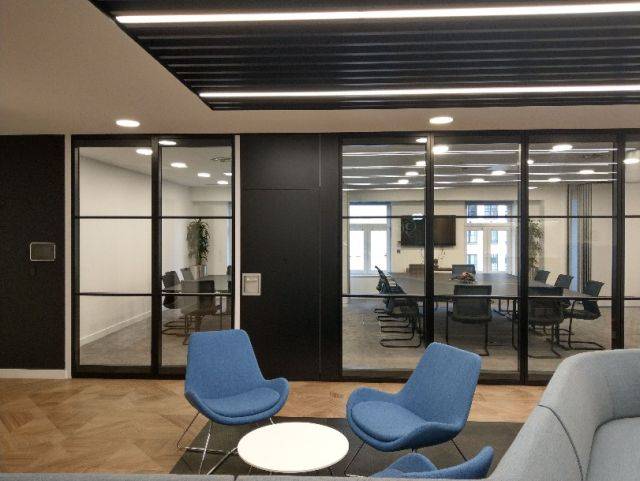

Fully glazed, movable acoustic wall system.

Features:

  • Individual acoustic glazed panels.
  • Semi-electric operation as standard.
  • Provides a solution where light and high acoustic performance are combined in one complete system.
  • Can be integrated with our Type 100 SE Semi-electric system (specified separately).
  • Creates clear visual separation when privacy is needed.
  • Top-hung with no floor track; forms a flat flush wall when closed.

Applications:

For internal use only.

General information
Features

Individual acoustic glazed panels

Semi-electric operation as standard

Provides a solution where light and high acoustic performance are combined in one complete system

Can be integrated with our Type 100 SE Semi-electric system (specified separately)

Creates clear visual separation when privacy is needed

Top-hung with no floor track; forms a flat flush wall when closed

Uniclass 2015 Sliding door and partition sets (Pr_30_59_24_80)
Specification data
Product Reference

Type G100

Partition assembly

Maximum height: 4000 mm; maximum width: 1200 mm. Refer to manufacturer’s drawings SL - 101, SL - 108, SL - 109 and SL – 110.

AcousticRating

Rw 43 dB

Rw 48 dB

Rw 50 dB

Rw 54 dB

Operation

SE – Semi-electric

Stacking layout

TL 1 ‘E’ system

Single point suspension.

TL 2 ‘Za’ system

Two point suspension.

TL 3 ‘Zb’ system

Two point suspension.

TL 4 ‘Z’ system

Stacked in recess cupboard, two point suspension.

TL 5 ‘K’ system

Two point suspension.

TL 6 ‘K’ system

Stacked behind reveal, two point suspension.

TL 7 ‘K’ system

Stacked inside wall recess, two point suspension.

TL 8 ‘K’ system

Stacked in branches to one or both sides, two point suspension.

Building Regulation (E&W) Approved Document B

Track finish

White

Standard.

Other RAL colour

Insert requirement.

Frame finish

White

Standard.

Other RAL colour

Insert requirement.

Pass door panels

Single inset pass door (solid panel)

Double inset pass door (solid panels)

Full height pass door (solid panel)

Accessories

Not required

Automatic internal blinds housed within double glazed unit

Crittal effect glazing bars

Low iron glass

Standard product features

Panels:

  • Type: Individual glass panels with aluminium frame.
  • Toughened glass: 4–10 mm thickness.
  • Edges: 33 mm to all sides.

Seals:

Electrically operated automatic seals.

Product Options

Acoustic rating:

Measured in accordance with BS EN ISO 140-3.

Acoustic insulation:

- Weight:

  • Rw 43 dB: 27 kg/m².
  • Rw 48 dB: 36 kg/m².
  • Rw 50 dB: 40 kg/m².
  • Rw 54 dB: 51 kg/m².
